Dark walnut double leaf worked with arched wrought iron glass and carved wood embossing. Product code: BD-TR10. Made to measure after an on-site survey.
- Leaf construction
- double leaf + transom window
- Color / finish
- dark walnut
- Handle
- classic pull bar
- Design language
- classic villa
- Upper section
- wrought iron glazed transom window
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty

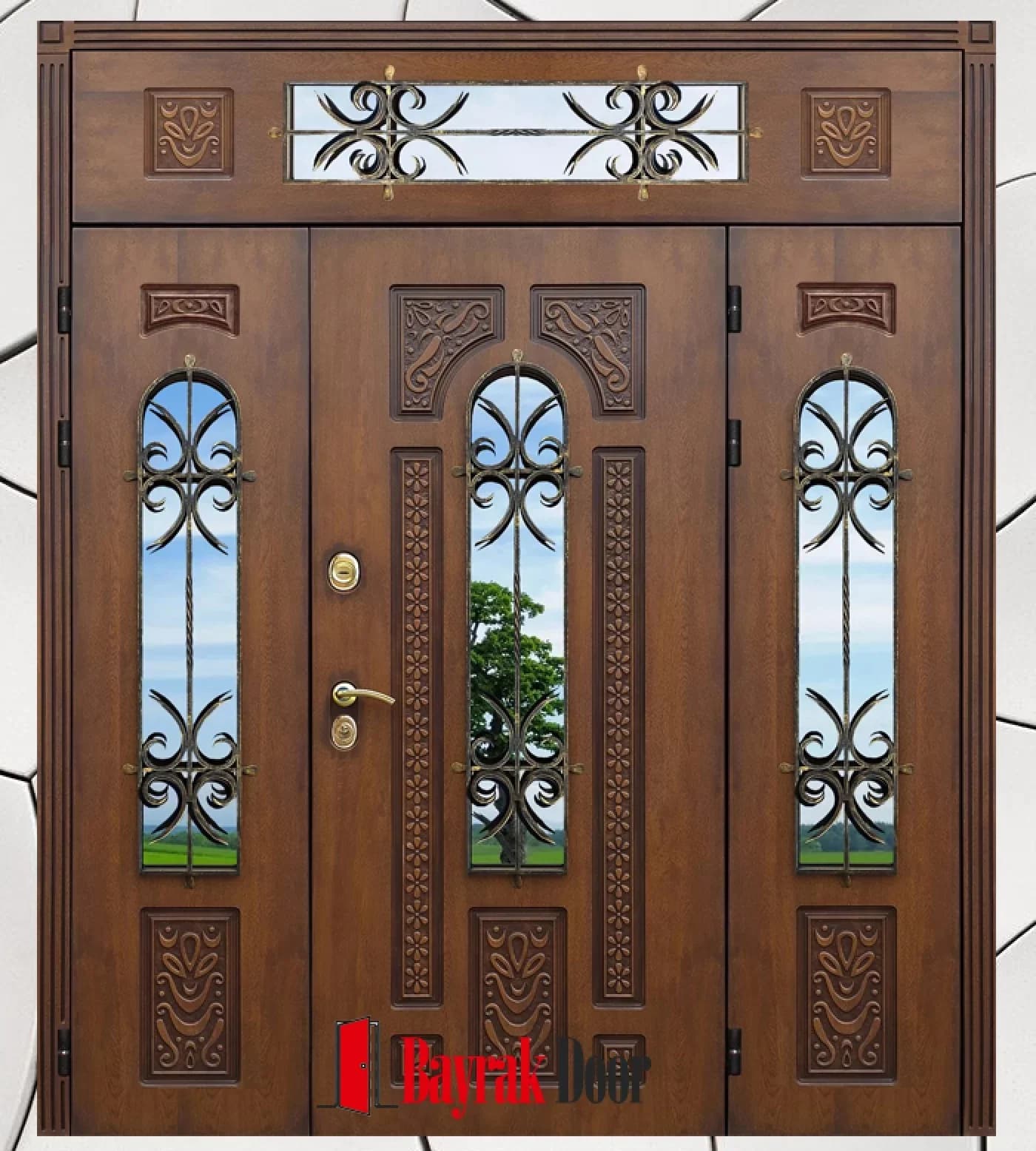

The carved wood dark walnut villa door, code BD-TR10, is produced as a dark walnut double leaf worked with arched wrought iron glass and carved wood embossing. Every door is made to your dimensions; whatever the width and height of your entrance, the leaf is produced to match. The image shows the dark walnut finish.
Product Code: BD-TR10
Glazing, Top Section and Surface
Produced as a double leaf with a transom window. The surface detailing takes the form of carved wood embossing. The color applied is dark walnut.
The glazing is resolved as arched wrought iron glass. Above sits a transom window with wrought iron glazing. It is completed with a classic lever handle. Cladding and hardware are not fixed; the door can be produced with any of the alternatives on our cladding options page.
Its design language is defined as classic villa.
Where Is It Used?
It is chosen primarily for detached houses and villa entrances. It is designed for wide openings: the side sections both take up the extra width and bring light into the entrance. The difference between these two door types is not just size; we detail it on our villa door vs. building entrance door page.
Measurement, Production and Installation
Production starts with measurements taken on site. How the opening is measured is covered on our how to measure page; material choices on the galvanized or DKP sheet steel and lock systems pages. The technical values for this model are in the table below. After delivery, our warranty and service coverage applies; see the care and lifespan page for keeping the surface protected.
Frequently Asked Questions
How is the price of the BD-TR10 determined?
There is no fixed price — since every leaf is made to measure, the total depends on the dimensions, the cladding and the lock you choose. After the survey we send a written, itemized quote. We break down the cost items on our steel door prices page.
Can the color of the BD-TR10 be changed?
Yes. The dark walnut finish in the image is this model's catalog selection; it can be produced in other colors with compact laminate, composite, marine plywood and wood veneer options. We compare them on our cladding options page.
Can the glass pattern be different?
Yes. The glass shown is this model's catalog finish; it can be produced in different colors and patterns, provided Şişecam 5+5 mm laminated glass is used. A glassless version is also possible.
Do I need to take the measurements myself?
Our survey team measures on site. If you would still like to know the process, our how to measure page explains the three points we measure from.
How do I get a quote for the BD-TR10?
You can fill out the pre-order form on our site or reach us at 0532 689 21 46. Mentioning product code BD-TR10 in your request speeds things up. You can browse other villa steel door models on our villa steel door models page.
Specifications
| Product code | BD-TR10 |
| Category | Villa Steel Door Models |
| Leaf construction | double leaf + transom window |
| Color / finish | dark walnut |
| Surface pattern | carved wood reliefs |
| Handle | classic pull bar |
| Upper section | wrought iron glazed transom window |
| Design language | classic villa |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | arched wrought iron glass panels |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
