Single diamond embossing and a long vertical handle on a plain dark brown surface. Product code: C-TR726. Made to measure after an on-site survey.
- Leaf construction
- single leaf
- Color / finish
- dark brown
- Glass
- Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
- Handle
- long vertical stainless steel handle
- Design language
- modern
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
A single diamond embossing and a long vertical handle on a plain dark brown surface — that is what sets apart this steel door, code C-TR726. It is not sold in stock sizes; your entrance is measured on site and the leaf is built to that measurement.
Product Code: C-TR726
Leaf Surface
The door is configured as a single leaf. A diamond embossing sits at the center of the leaf. The catalog color is dark brown.
A long vertical stainless steel handle was chosen for this model. The finish in the image is the catalog choice — a different cladding can be selected from the cladding options page.
Who Is This Model For?
Flat entrances and residence apartments are this model's typical settings. The single-leaf layout suits entrances of standard width.
Production and Installation Process
Production starts with measurements taken on site. How the door opening is measured is covered on the how measurements are taken page; material choices on the galvanized or DKP sheet steel and lock systems pages. This model's technical values are in the table below. After installation, the care and lifespan and warranty and service terms apply.
Frequently Asked Questions
How much does the C-TR726 cost?
There is no fixed price — since every leaf is made to measure, the total depends on the dimensions, the cladding and the lock you choose. After the survey we send a written, itemized quote. The line items are detailed on the steel door prices page.
Can I have this model in a color other than dark brown?
Yes — the color is not fixed. It appears in dark brown in the catalog, but the cladding is decided per project; on the cladding options page we cover which surface works best where.
How does the measuring stage work when ordering the C-TR726?
Measuring is our job. We record the clear width of the door opening, its height from the finished floor and the wall thickness; details are on the how measurements are taken page.
How can I order the C-TR726?
You can fill in the pre-order form on our site or call us on 0532 689 21 46. Mentioning product code C-TR726 in your request speeds the process up. You can browse other steel door models on the steel door models page.
Specifications
| Product code | C-TR726 |
| Category | Steel Door Models |
| Leaf construction | single leaf |
| Color / finish | dark brown |
| Surface pattern | central diamond relief |
| Handle | long vertical stainless steel handle |
| Design language | modern |
| Glass | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
| Place of use | Flat entrance door |
| Sound and heat insulation | Insulation via infill material and gasket system |
| Interior surface | Interior panel in any desired color and finish |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
You May Also Like

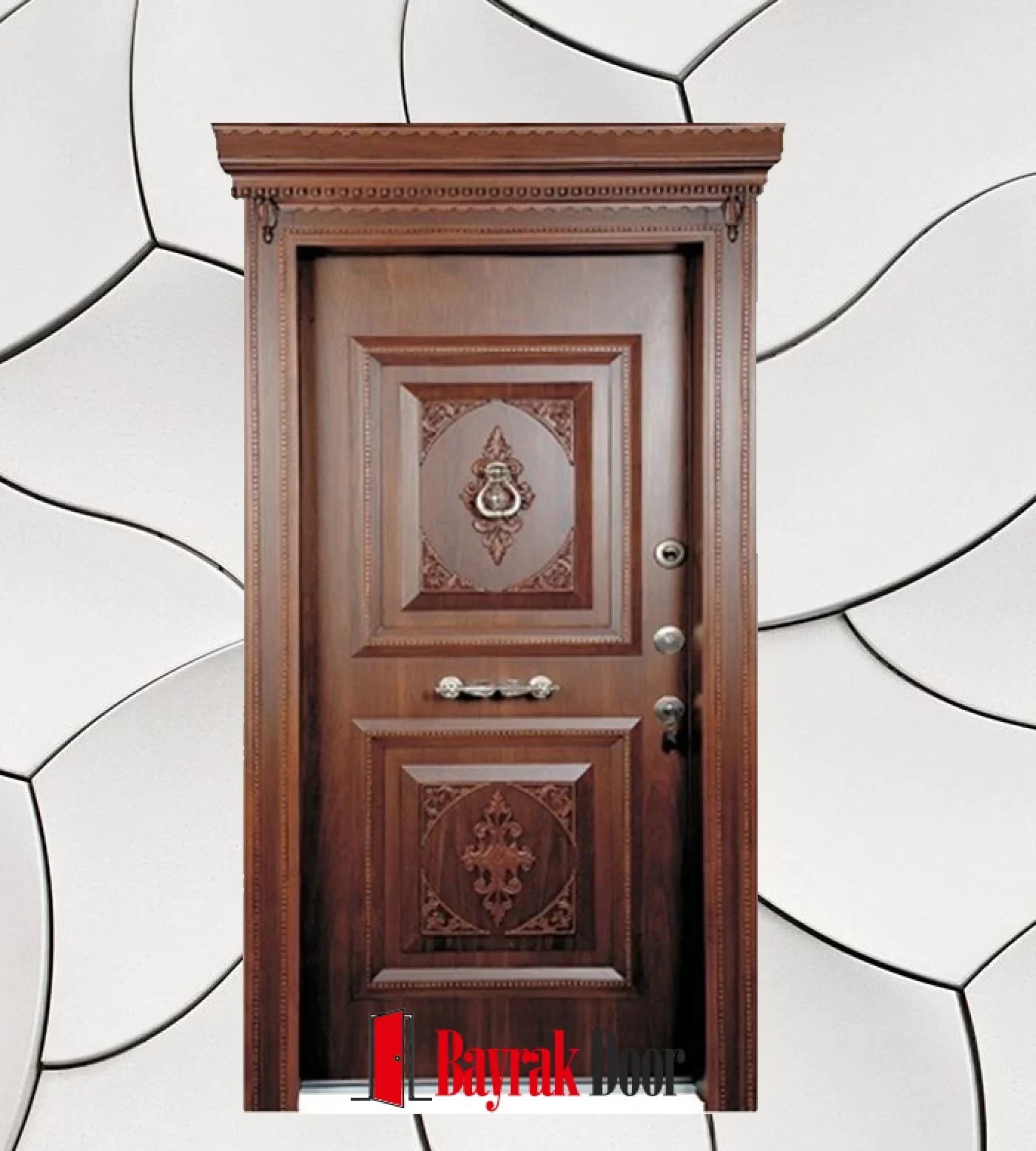

Oval Medallion Dark Walnut Steel Door C-TR700
Fine Horizontal Light Oak Steel Door C-TR701

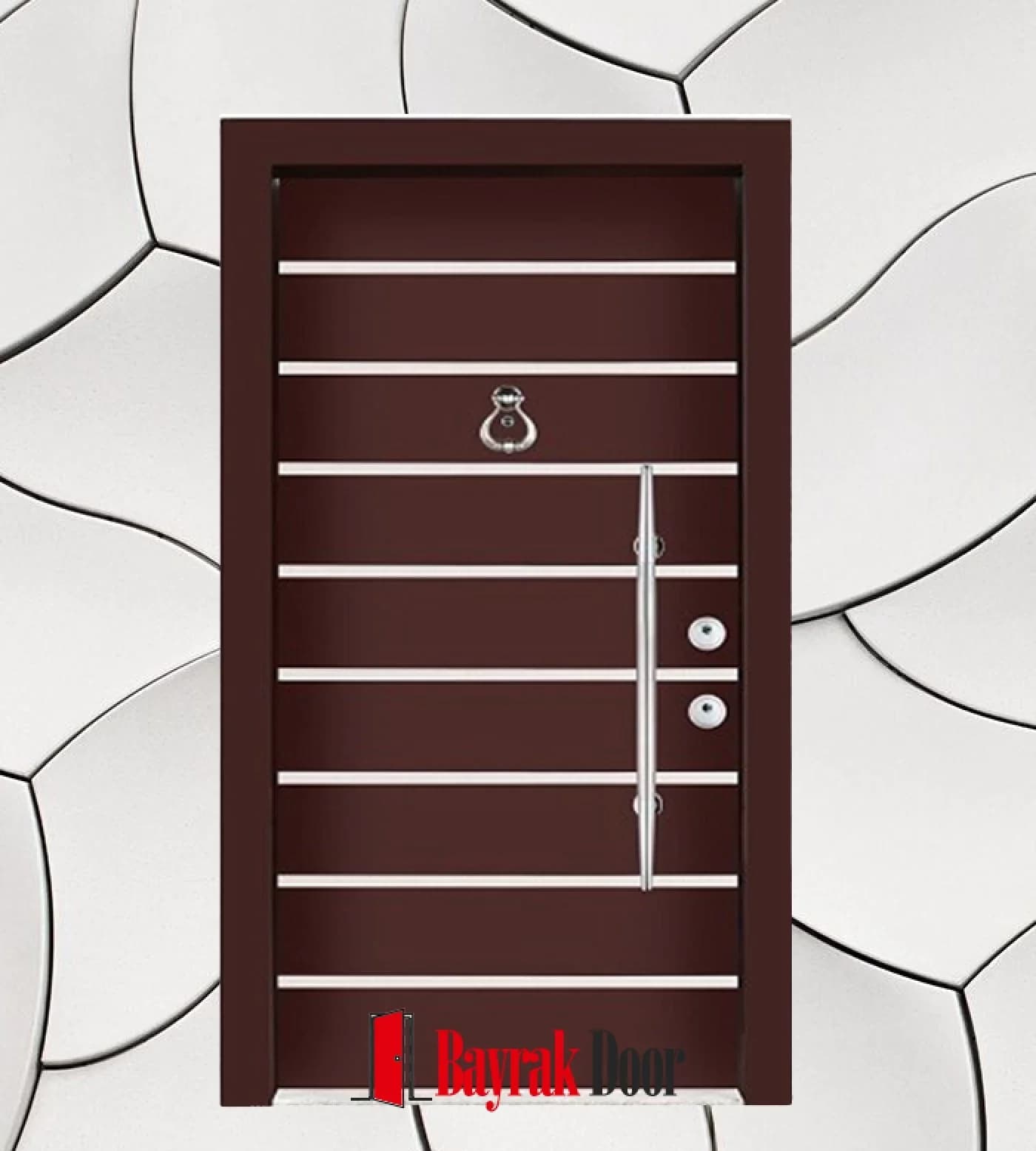

Horizontal Cream-Striped Burgundy-Cherry Steel Door C-TR702

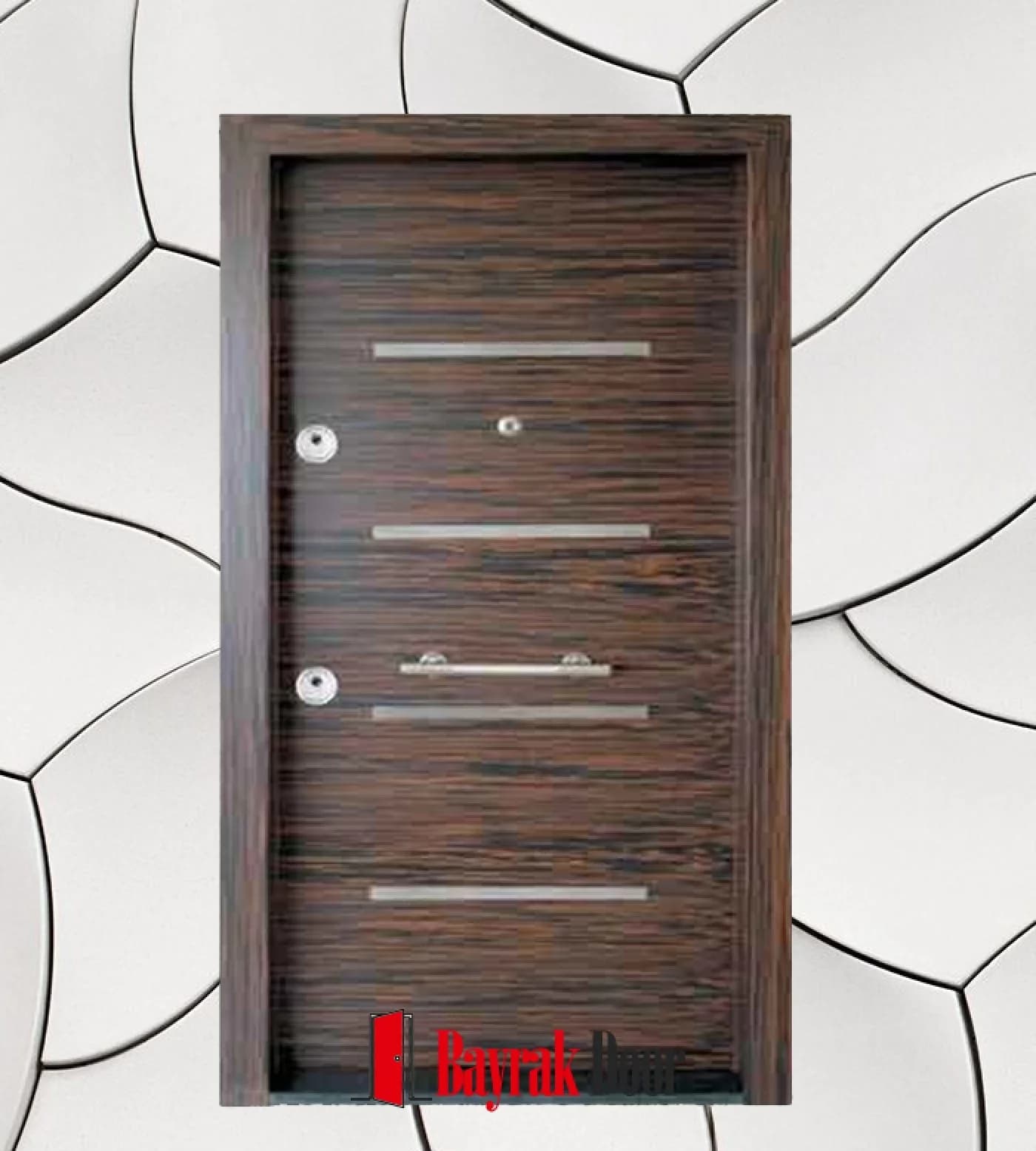

Staggered Horizontal Dark Zebrano Steel Door C-TR703
Before you decide
Pages where we cover the technical questions most often asked about this model:
modern design
More Models in This Style
Geometric Diamond Orange Red Walnut Steel Door C-TR730
Circle Medallion Dark Burgundy Brown Steel Door C-TR720
Tall Vertical Dark Burgundy Gloss Steel Door C-TR718

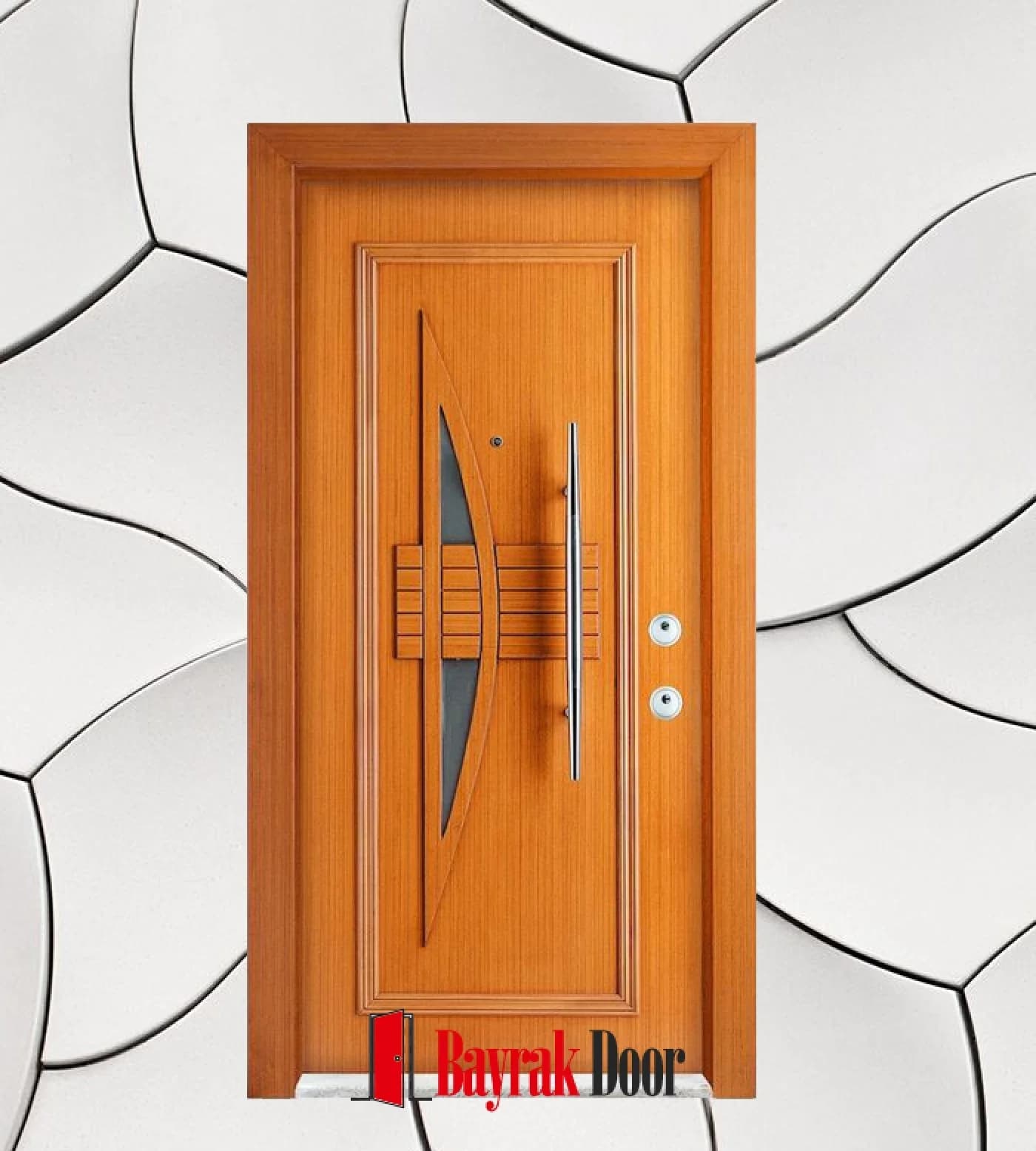

Asymmetric Arc Orange Honey Steel Door C-TR717
wood tone
Models in the Same Color Family

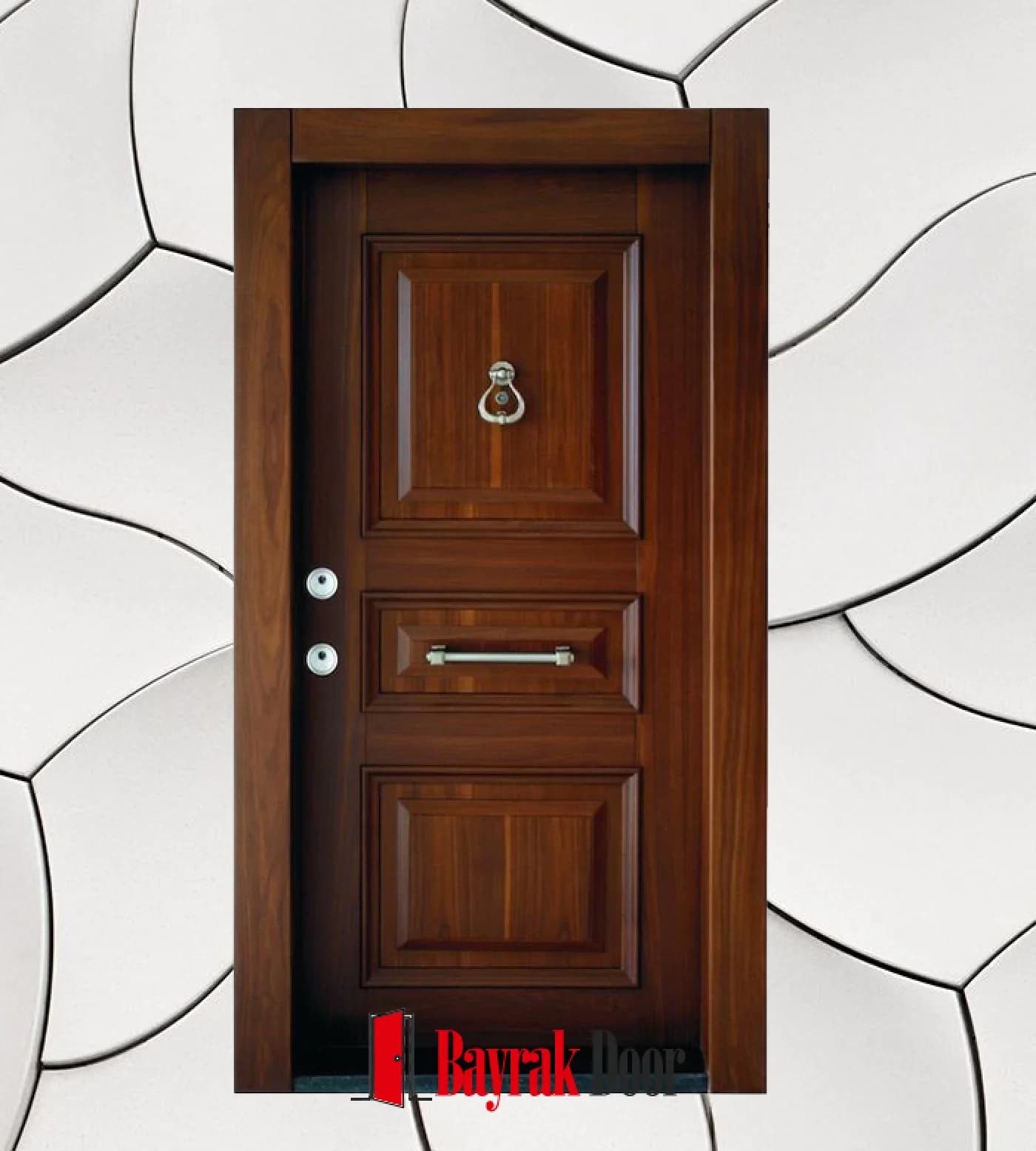

Three-Section Honey Walnut Steel Door C-TR731
Geometric Diamond Orange Red Walnut Steel Door C-TR730

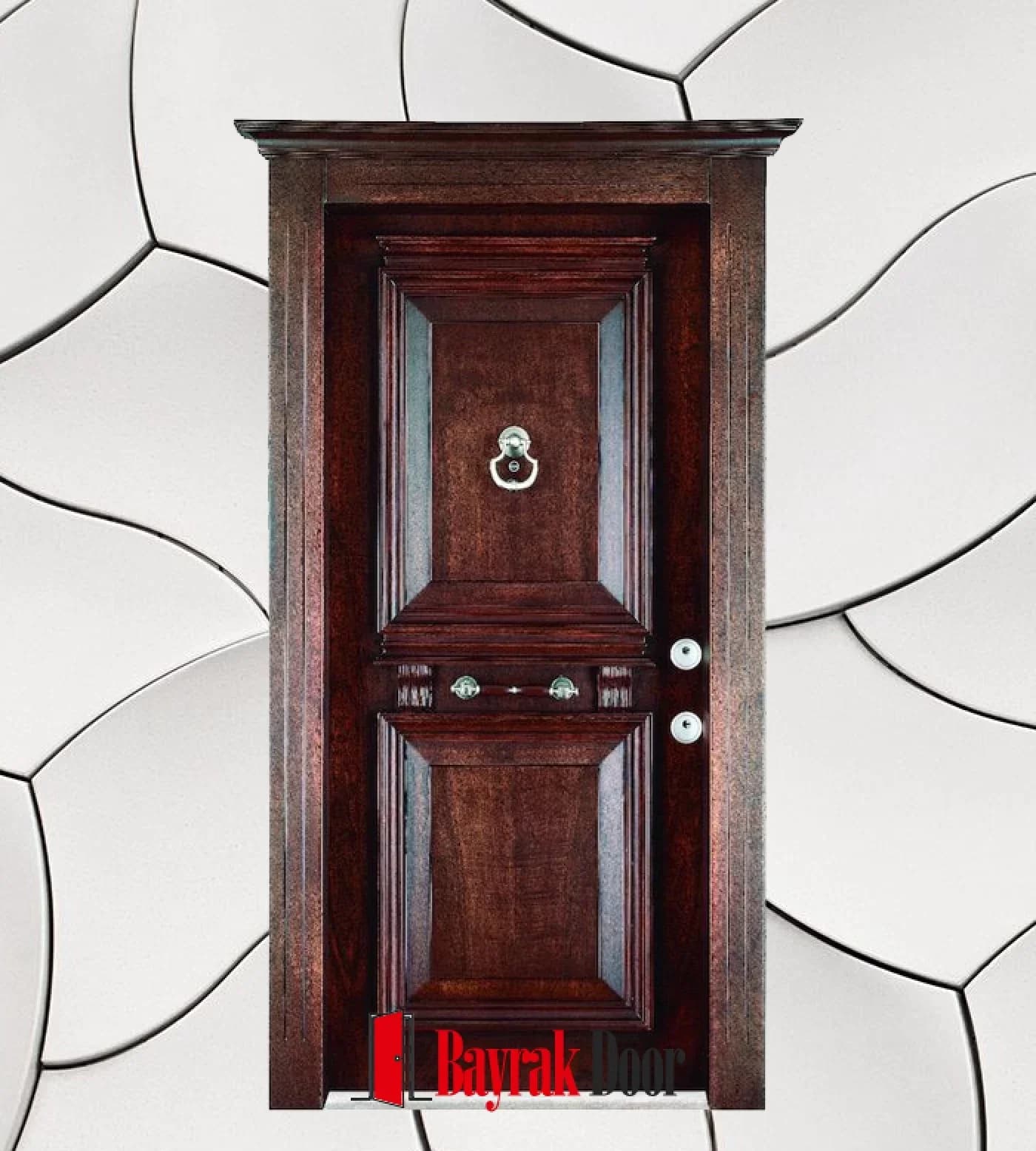

Two-Section Paneled Dark Walnut Antiqued Steel Door C-TR729
