Floral Motif Dark Walnut Villa Door BD-TR19

Product CodeBD-TR19

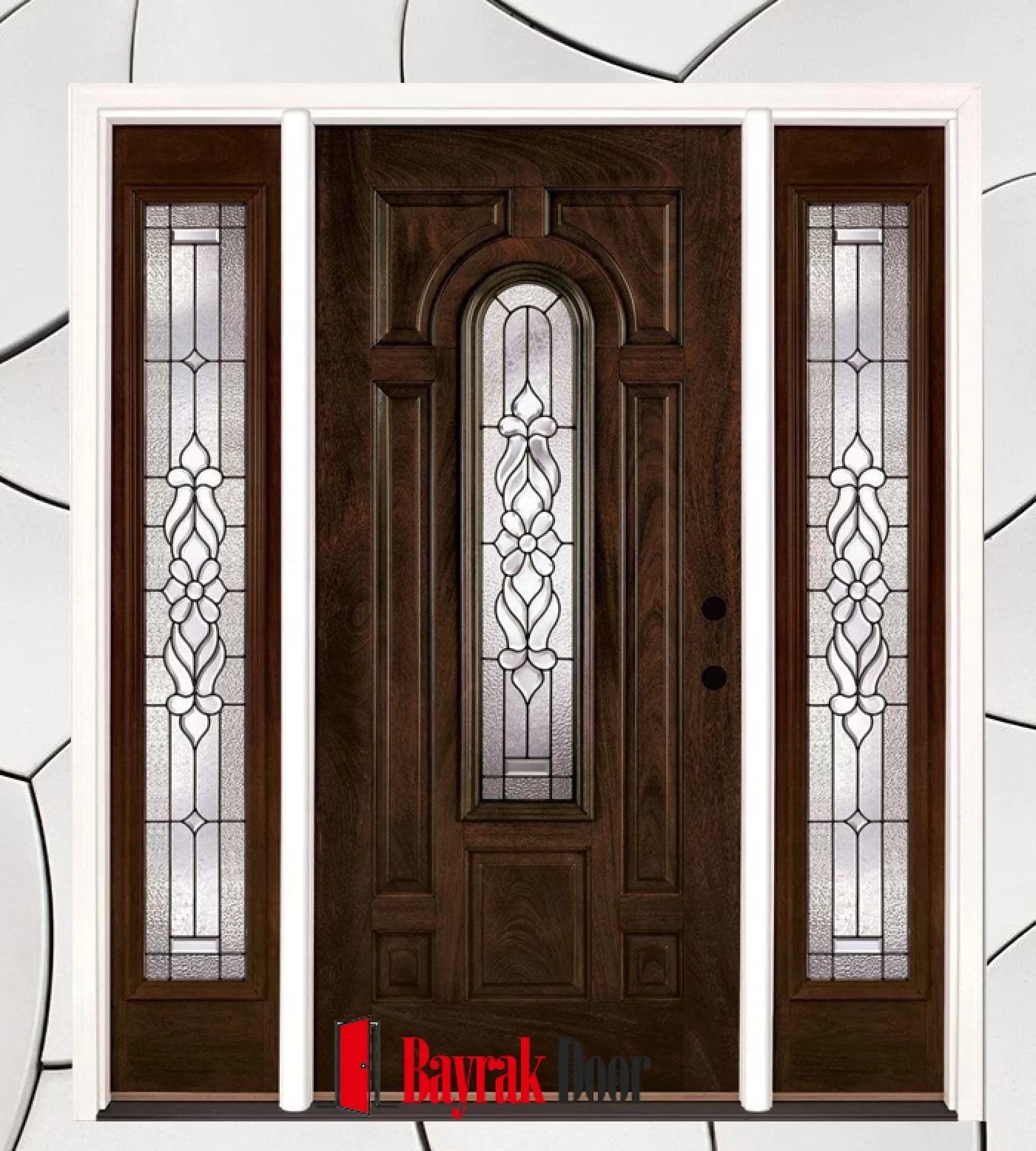

Arched leaded stained glass on a dark walnut body with floral-motif side windows. Product code: BD-TR19. Made to measure after an on-site survey.

Leaf construction
single leaf + double sidelight
Color / finish
dark walnut
Handle
classic pull bar
Design language
classic villa
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR19

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

This villa steel door model carries the code BD-TR19: arched leaded stained glass on a dark walnut body with floral-motif side windows. Like every door we make, this model is produced to measure; no leaf is supplied from stock.

Product Code: BD-TR19

Leaf and Glass Layout

The door is structured as a single leaf with twin side glass panels. The leaf displays floral-motif stained glass. The finish is a dark walnut tone.

The glass section is arched leaded stained glass. It is completed with a classic lever handle. Cladding and hardware are not fixed; the door can be produced with any of the alternatives on the cladding options page.

The design language is classic villa.

Which Entrances Does It Suit?

It is chosen primarily for garden homes and residence apartments. It was conceived for wide openings: the side sections both span the width and bring light to the entrance. We compare where a villa door and a building entrance door part ways on the villa door vs. building entrance door page.

From Measurement to Installation

Production begins with measurements taken on site. How the door opening is measured is covered on the how doors are measured page; material choices are on the galvanized or DKP sheet steel and lock systems pages. This model's technical specifications are in the table below. After delivery, warranty and service coverage applies; see the care and lifespan page for protecting the surface.

Frequently Asked Questions

How is the price of BD-TR19 determined?

We cannot quote a price before taking measurements. The size of the door opening and your choice of cladding, glass, and lock directly affect the total; the site survey is free, and an itemized quote follows. See steel door prices for details.

Can BD-TR19 be produced in a different color?

Yes. The dark walnut finish in the photo is this model's catalog choice; with compact laminate, composite, marine plywood, and wood veneer options it can be produced in other colors. We compare the options on the cladding options page.

Can the glass in BD-TR19 be changed?

Yes. The glass shown is this model's catalog finish; provided Şişecam 5+5 mm laminated glass is used, it can be produced in different colors and patterns. A glass-free version is also possible.

Do I need to take the measurements myself?

We take the measurements during the site survey; nothing is required on your part. Measurements are taken from the door opening, not the existing leaf — we explain the method on the how doors are measured page.

How can I order model BD-TR19?

You can fill in the pre-order form on our website or call us on 0532 689 21 46. Mentioning the product code BD-TR19 in your request speeds things up. You can browse other villa steel door designs on the villa steel door models page.

Specifications

Product codeBD-TR19
CategoryVilla Steel Door Models
Leaf constructionsingle leaf + double sidelight
Color / finishdark walnut
Surface patternfloral motif stained glass
Handleclassic pull bar
Design languageclassic villa
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionarched leaded stained glass
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
