Leaded-Glass Honey Walnut Villa Door BD-TR13

Product CodeBD-TR13

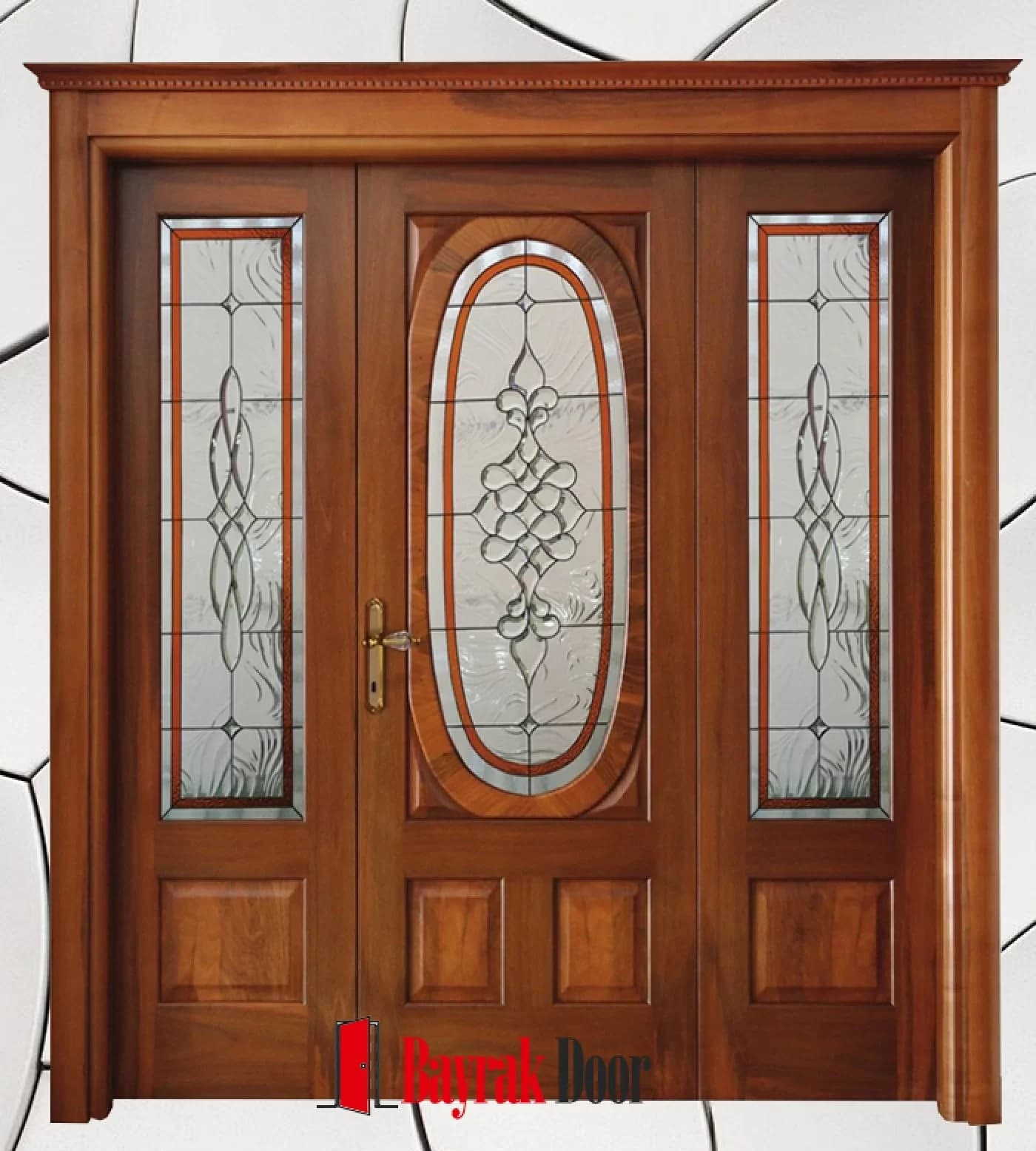

Honey walnut villa door carrying an oval stained glass medallion at its center. Product code: BD-TR13. Made to measure after an on-site survey.

Leaf construction
single leaf + double sidelight
Color / finish
honey walnut
Handle
classic pull bar
Design language
classic villa
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR13

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

A honey walnut villa door carrying an oval stained glass medallion at its center. It appears in the catalog under code BD-TR13. Production begins after you order: first comes an on-site survey, then the leaf is manufactured to fit the door opening. The catalog finish is a honey walnut tone.

Product code: BD-TR13

Glass and Surface Details

The leaf layout is a single leaf with two sidelights. The leaf face is worked as leaded stained glass. The catalog color is a honey walnut tone.

The glazing is arranged as an oval stained glass medallion with patterned sidelights. The handle is a classic lever. The finish shown is the catalog choice — a different cladding can be selected from the cladding options.

The design language is classic villa.

Who Is This Model For?

It is chosen primarily for villa entrances and residence apartments. It is designed for wide openings: the side sections both make up the measurement and light the entrance. We compare where a villa door and a building entrance door part ways on the villa door vs. building entrance door page.

Measurement, Production, and Installation

Production starts with measurements taken on site. How the door opening is measured is explained on the how measurements are taken page; material choices are covered on the galvanized or DKP sheet steel and lock systems pages. This model's technical specifications are in the table below. After installation, the care and lifespan guidance and warranty and service terms apply.

Frequently Asked Questions

How much is BD-TR13?

There is no fixed price — since every leaf is made to measure, the total depends on the dimensions, the cladding, and the lock you choose. After the survey we send a written, itemized quote. We break down the line items on the steel door prices page.

Can the color of the BD-TR13 door be changed?

Yes, the color isn't fixed. It appears in honey walnut in the catalog, but the cladding is decided per project; on the cladding options page we've written up which surface works best where.

Can the glass on the BD-TR13 model be changed?

Yes. The glass shown is this model's catalog finish; it can be produced in a different color and pattern, provided Şişecam 5+5 mm laminated glass is used. The door can also be made without glass.

Do I need to take the measurements myself?

Our survey team measures on site. Still, if you'd like to know the process, the how measurements are taken page explains the three points we measure from.

How do I order the BD-TR13 model?

You can fill in the pre-order form on our site or reach us on 0532 689 21 46. Mentioning the product code BD-TR13 in your request speeds things up. You can browse other villa steel door models on the villa steel door models page.

Specifications

Product codeBD-TR13
CategoryVilla Steel Door Models
Leaf constructionsingle leaf + double sidelight
Color / finishhoney walnut
Surface patternleaded stained glass
Handleclassic pull bar
Design languageclassic villa
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionoval stained glass medallion and patterned side glass
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
