Dark walnut double leaf with a pedimented frame, panels and gold plate details. Product code: BD-TR14. Made to measure after an on-site survey.
- Leaf construction
- double leaf
- Color / finish
- dark walnut
- Glass
- Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
- Handle
- gold knocker and gold handle
- Design language
- classic villa
- Upper section
- frame with pediment
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty

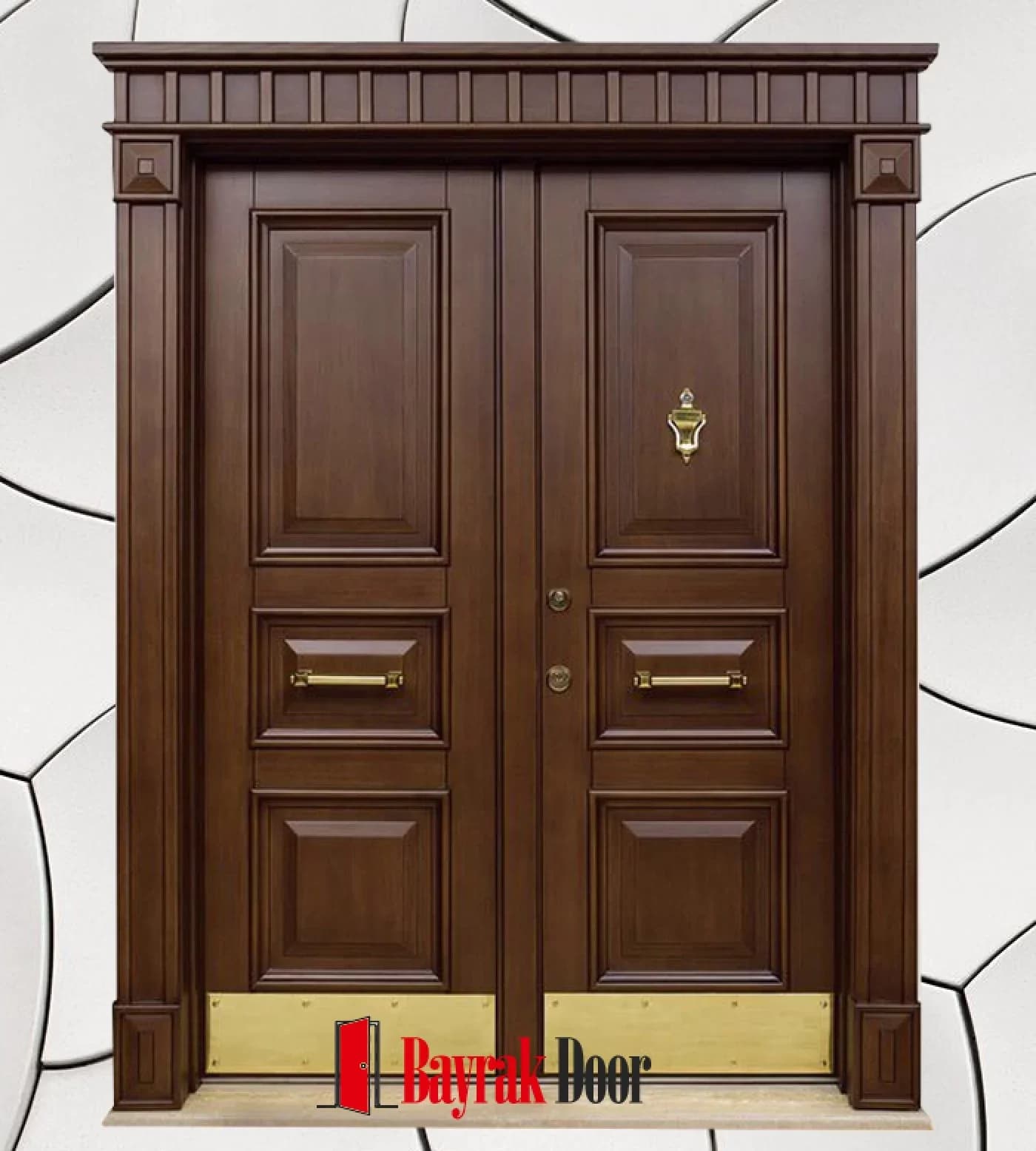

A pedimented frame, panels and gold plate details on a dark walnut double leaf — that is what sets apart this villa steel door, code BD-TR14. Production begins after your order: first we carry out a site survey, then the leaf is manufactured to the door opening. The image shows the dark walnut finish.
Product Code: BD-TR14
Leaf and Upper Section
It is produced as a double leaf. The surface detailing consists of panels and gold plates. The color applied is dark walnut.
A pedimented frame sits above the leaf. A gold knocker and gold handle serve as the hardware. Color, pattern and handle choices can be tailored to your project; the cladding options page compares the alternatives.
The design language is defined as classic villa.
Where Is It Used?
It is typically used at detached homes and homes with gardens. Because the side sections widen the assembly, it suits wide-fronted entrances rather than narrow ones — and brings daylight into the entrance hall. The difference between these two door types is not just size; we cover it in detail on the villa door vs. building entrance door page.
Production and Installation Process
We take the measurements during the site survey — based on the door opening, not the existing leaf; the method is explained on the how measurements are taken page. You will find this model's frame, leaf and lock values in the table below; the lock systems and galvanized or DKP sheet steel pages detail the options. The care steps that extend the door's life are on the care and lifespan page, and coverage details are on the warranty and service page.
Frequently Asked Questions
What does the BD-TR14 cost?
The price cannot be quoted before measuring. The size of the door opening and your cladding, glass and lock choices directly affect the cost; the site survey is free and is followed by an itemized quote. See steel door prices for details.
Can the BD-TR14 be produced in a different color?
Yes, the color is not fixed. The catalogue shows dark walnut, but the cladding is decided per project; on the cladding options page we describe which surface works best where.
How are measurements taken for the BD-TR14?
Measuring is our job. We measure the clear width of the door opening, its height from the finished floor and the wall thickness; details are on the how measurements are taken page.
How do I get a quote for the BD-TR14?
You can fill in the pre-order form on our site or call us on 0532 689 21 46. Mentioning product code BD-TR14 in your request speeds things up. You can browse other villa steel door models on the villa steel door models page.
Specifications
| Product code | BD-TR14 |
| Category | Villa Steel Door Models |
| Leaf construction | double leaf |
| Color / finish | dark walnut |
| Surface pattern | panel with gold plates |
| Handle | gold knocker and gold handle |
| Upper section | frame with pediment |
| Design language | classic villa |
| Glass | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
