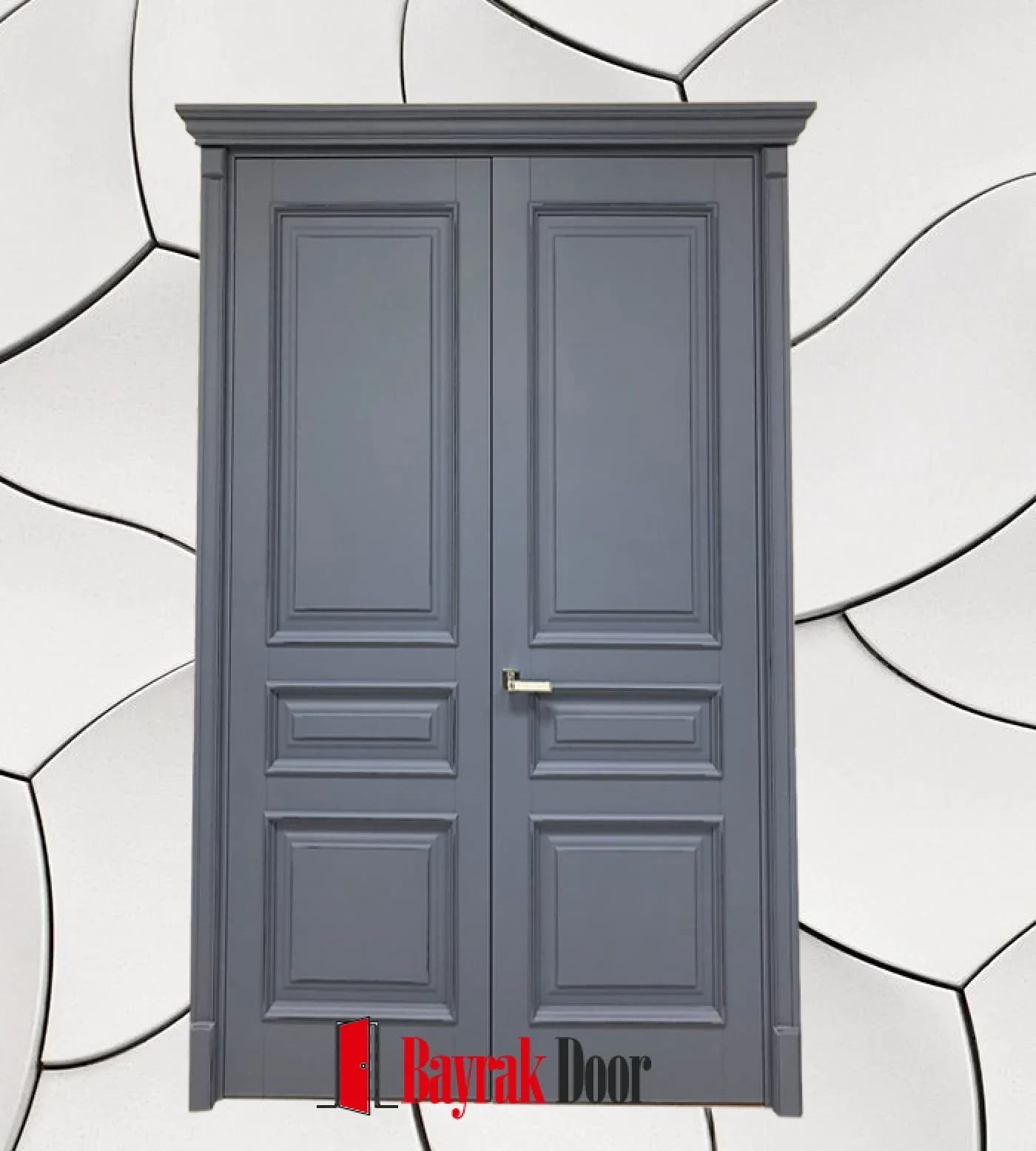

Understated grey classic paneled double leaf with a pedimented frame. Product code: BD-TR22. Made to measure after an on-site survey.
- Leaf construction
- double leaf
- Color / finish
- grey
- Glass
- Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
- Handle
- recessed pull bar
- Design language
- classic villa
- Upper section
- frame with pediment
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
BD-TR22 is a villa steel door distinguished by its understated grey classic paneled double leaf and pedimented frame. It is made to measure; whatever the width and height of your entrance, the leaf is built to match.
Product code: BD-TR22
Surface and Pediment Layout
The door is configured as a double leaf with classic panel work on the face. The catalog color is a grey tone.
The upper section features a pedimented frame, and the door is finished with a flush handle. The finish shown is the catalog choice — a different cladding can be selected from the cladding options.
The design language is classic villa.
Who Is This Model For?
It is typically used at villa entrances and on detached houses. Thanks to the side sections, wide door openings are closed with a single unit. We compare where a villa door and a building entrance door part ways on the villa door vs. building entrance door page.
Production and Installation Process
Production starts with measurements taken on site. How the door opening is measured is explained on the how measurements are taken page; material choices are covered on the galvanized or DKP sheet steel and lock systems pages. This model's technical specifications are in the table below. After installation, the care and lifespan guidance and warranty and service terms apply.
Frequently Asked Questions
How much does the BD-TR22 model cost?
We can't quote a price without measuring. The size of the door opening and your choice of cladding, glass, and lock directly affect the total; the site survey is free, followed by an itemized quote. See steel door prices for details.
Can I have this model in a color other than grey?
Yes. The grey finish shown is this model's catalog choice; it can be produced in other colors with compact laminate, composite, marine plywood, and wood veneer options. We compare them on the cladding options page.
Do I need to take the measurements myself?
Our survey team measures on site. Still, if you'd like to know the process, the how measurements are taken page explains the three points we measure from.
How do I order the BD-TR22 model?
You can fill in the pre-order form on our site or reach us on 0532 689 21 46. Mentioning the product code BD-TR22 in your request speeds things up. You can browse other villa steel door models on the villa steel door models page.
Specifications
| Product code | BD-TR22 |
| Category | Villa Steel Door Models |
| Leaf construction | double leaf |
| Color / finish | grey |
| Surface pattern | classic panel |
| Handle | recessed pull bar |
| Upper section | frame with pediment |
| Design language | classic villa |
| Glass | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
