Bayrakdoor Steel Doors
Bayrakdoor

Paneled Grey Villa Door BD-TR27

Product CodeBD-TR27

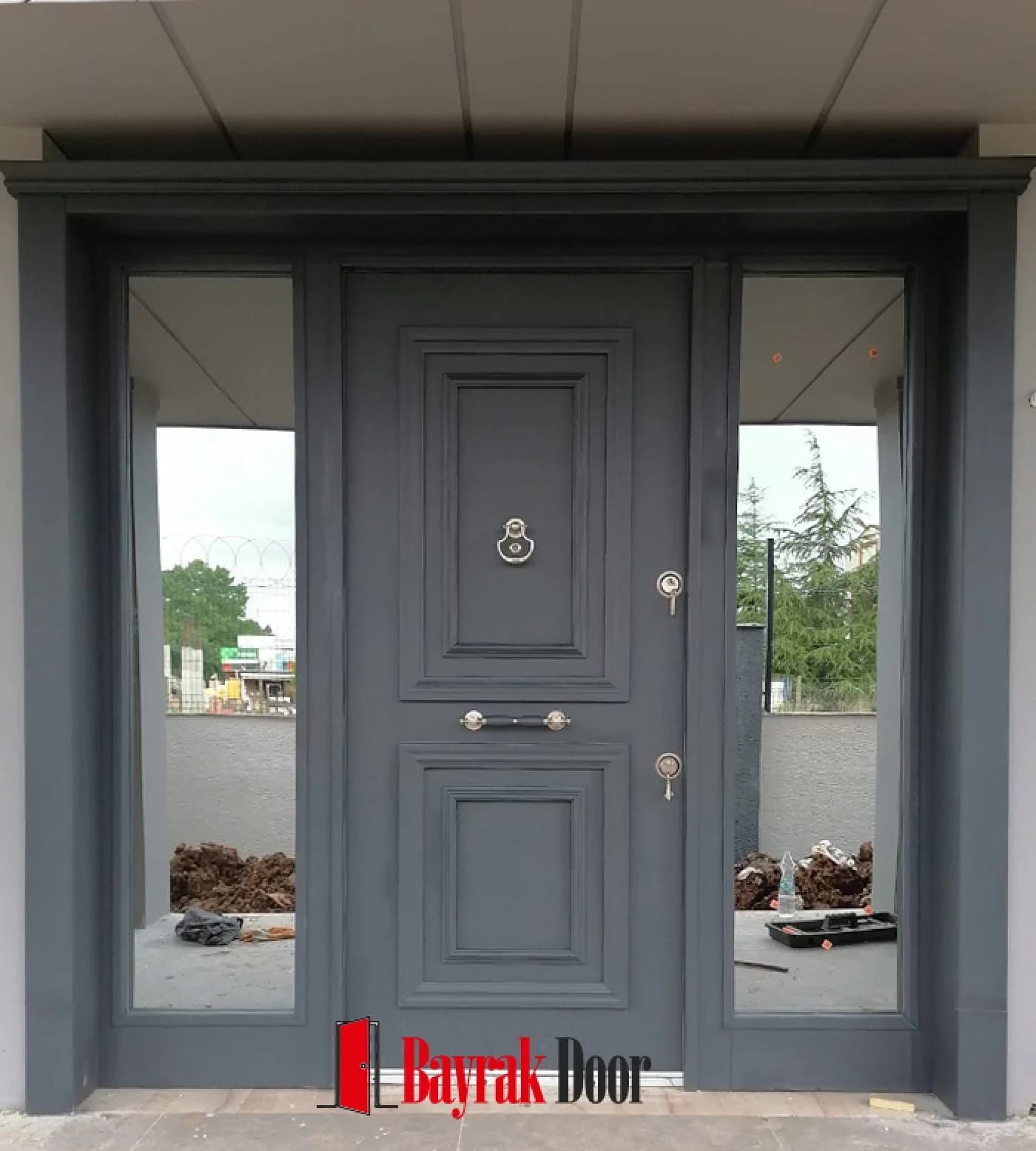

Grey classic paneled villa door with wide sidelights on both sides. Product code: BD-TR27. Made to measure after an on-site survey.

Leaf construction
single leaf + double sidelight
Color / finish
grey
Handle
horizontal pull bar
Design language
classic villa
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR27

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

The paneled grey villa door, code BD-TR27, is built as a grey classic paneled villa door with wide sidelights on both sides. There is no standard size — the door opening is measured during the site survey and the door is built to that measurement. The finish in the photo is grey cladding.

Product code: BD-TR27

Glass and Surface Details

It is produced as a single leaf with two sidelights. The face carries classic panel work, finished in grey.

The glazing is arranged as wide sidelights, and the door is finished with a horizontal handle. The finish shown is the catalog choice — a different cladding can be selected from the cladding options.

The design language is classic villa.

Suitable Entrances

Residence apartments and houses with gardens are this model's typical settings. Thanks to the side sections, wide door openings are closed with a single unit. The difference between these two door types isn't just size; we go into detail on the villa door vs. building entrance door page.

Production and Installation Process

We take the measurements during the site survey — based on the door opening, not the existing leaf; the method is explained on the how measurements are taken page. You'll find this model's frame, leaf, and lock specifications in the table below; the lock systems and galvanized or DKP sheet steel pages cover the options in detail. The maintenance steps that extend the door's life are on the care and lifespan page, and what's covered is on the warranty and service page.

Frequently Asked Questions

How is the price set for BD-TR27?

We don't publish list prices, because every door is made to measure. The total is determined by the size of the door opening and the cladding, glass, and lock you choose. After the free site survey we send a written quote, itemized line by line; we explain what moves the price on the steel door prices page.

Can I have this model in a color other than grey?

Yes. The grey finish shown is this model's catalog choice; it can be produced in other colors with compact laminate, composite, marine plywood, and wood veneer options. We compare them on the cladding options page.

Can the glass pattern be different?

Yes. The glass shown is this model's catalog finish; it can be produced in a different color and pattern, provided Şişecam 5+5 mm laminated glass is used. The door can also be made without glass.

Do I need to take the measurements myself?

We take the measurements during the site survey; nothing is needed from you. Measurements come from the door opening, not the existing leaf — we explain the method on the how measurements are taken page.

How do I get a quote for BD-TR27?

You can fill in the pre-order form on our site or reach us on 0532 689 21 46. Mentioning the product code BD-TR27 in your request speeds things up. You can browse other villa steel door models on the villa steel door models page.

Specifications

Product codeBD-TR27
CategoryVilla Steel Door Models
Leaf constructionsingle leaf + double sidelight
Color / finishgrey
Surface patternclassic panel
Handlehorizontal pull bar
Design languageclassic villa
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionwide sidelights
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
