A single large panel frame on honey walnut. Product code: C-TR709. Made to measure after an on-site survey.
- Leaf construction
- single leaf
- Color / finish
- honey walnut
- Glass
- Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
- Handle
- gold knocker, horizontal stainless steel handle
- Design language
- classic-plain
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty

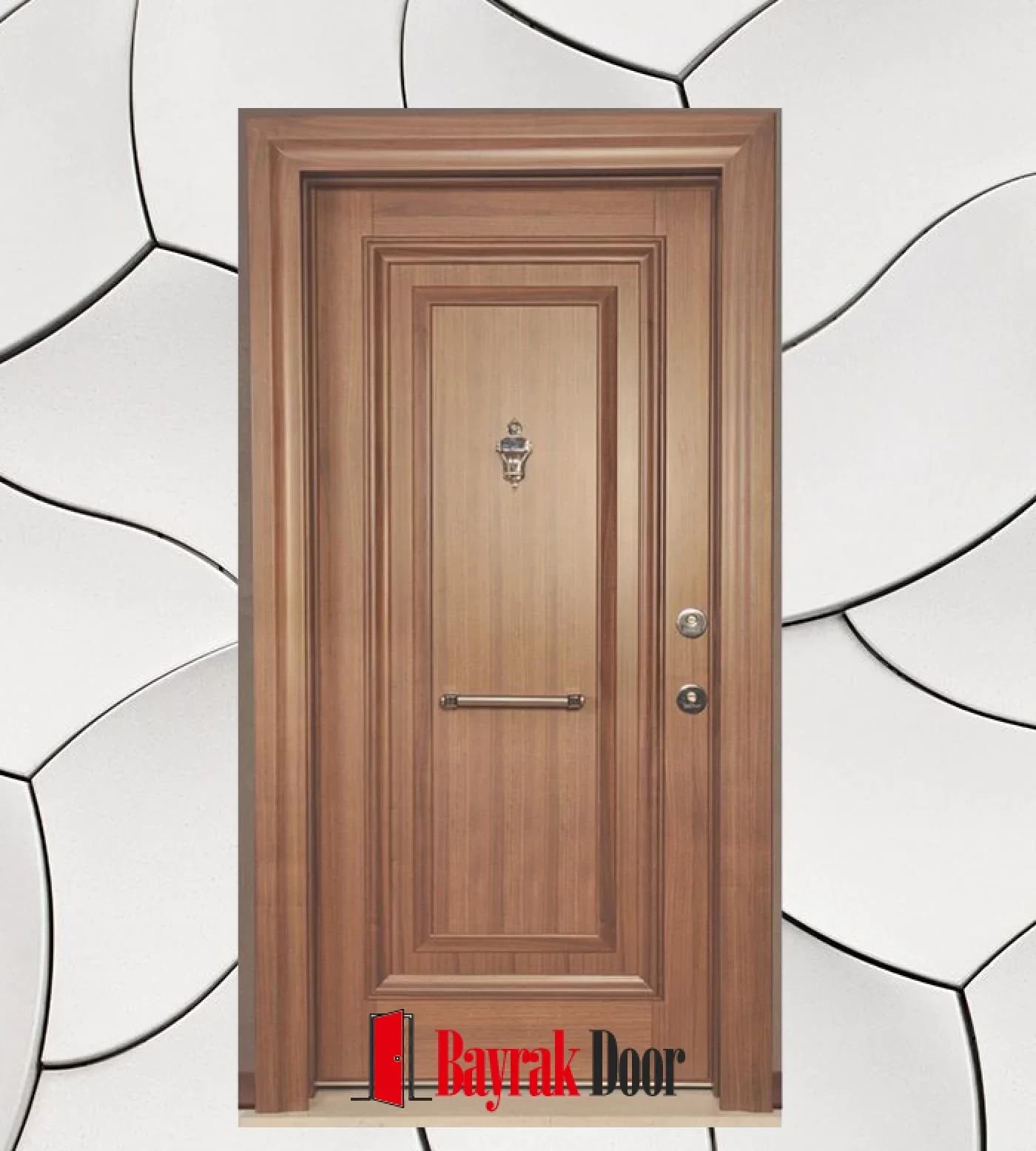

The paneled honey walnut steel door, code C-TR709, is built with a single large panel frame on honey walnut. There is no standard size — the door opening is measured during the site survey and the door is built to that measurement. The finish in the photo is honey walnut veneer.
Product Code: C-TR709
Classic Surface Craftsmanship
It is produced as a single leaf. The surface carries a single large panel frame. The surface is finished in honey walnut.
It is completed with a gold knocker and a horizontal stainless steel pull. The finish in the image is the catalogue selection — a different cladding can be chosen from the cladding options.
The design language is defined as understated classic.
Where Is It Used?
Apartment flats and flat entrances are this model's typical settings. The single-leaf layout adapts directly to conventional door openings.
Production and Installation Process
Measurements are taken from the door opening, not the existing leaf; we explain the process step by step on the how measurements are taken page. Frame, sheet thickness, infill and lock values are listed in the specification table below. Sheet steel choices are compared on the galvanized or DKP sheet steel page and lock alternatives on the lock systems page. After delivery, warranty and service coverage takes effect; see the care and lifespan page for protecting the surface.
Frequently Asked Questions
How is the price of the C-TR709 determined?
There is no fixed price — since every leaf is manufactured to measure, the cost depends on the dimensions, cladding and lock choice. After the survey we send a written, itemized quote. We break the items down on the steel door prices page.
Can the color of the C-TR709 be changed?
Yes, the color is not fixed. The catalogue shows honey walnut, but the cladding is decided per project; on the cladding options page we describe which surface works best where.
Do I need to take the measurements myself?
Measuring is our job. We measure the clear width of the door opening, its height from the finished floor and the wall thickness; details are on the how measurements are taken page.
How do I get a quote for the C-TR709?
You can fill in the pre-order form on our site or call us on 0532 689 21 46. Mentioning product code C-TR709 in your request speeds things up. You can browse other steel door models on the steel door models page.
Specifications
| Product code | C-TR709 |
| Category | Steel Door Models |
| Leaf construction | single leaf |
| Color / finish | honey walnut |
| Surface pattern | single large panel frame |
| Handle | gold knocker, horizontal stainless steel handle |
| Design language | classic-plain |
| Glass | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
| Place of use | Flat entrance door |
| Sound and heat insulation | Insulation via infill material and gasket system |
| Interior surface | Interior panel in any desired color and finish |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
