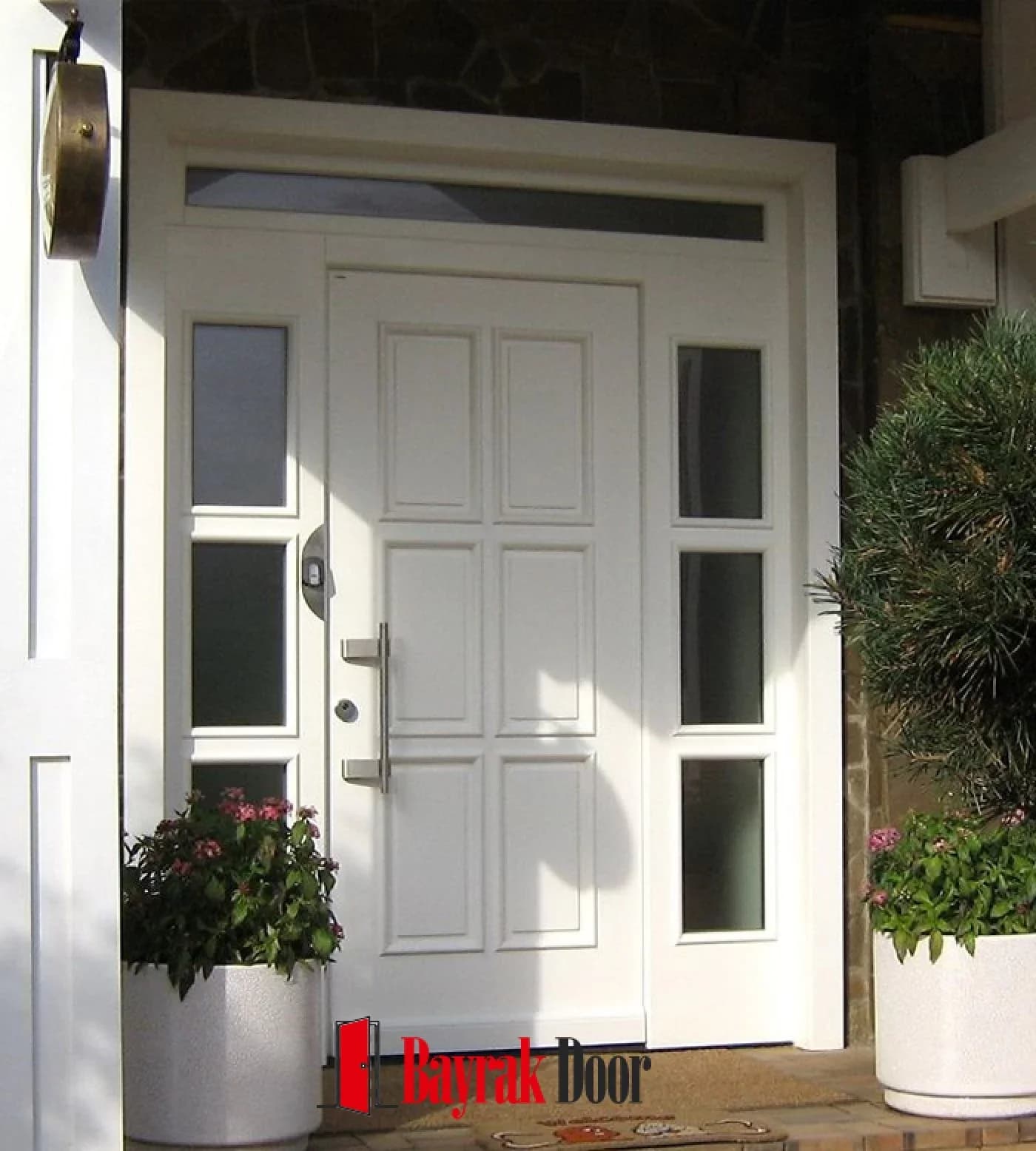

White paneled villa door flanked by divided vertical windows on both sides. Product code: BD-TR06. Made to measure after an on-site survey.
- Leaf construction
- single leaf + double divided sidelight
- Color / finish
- white
- Handle
- silver handle
- Design language
- classic villa
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
The paneled white villa door, code BD-TR06, is built as a white paneled villa door flanked by divided vertical windows on both sides. Production begins after your order: first we carry out a site survey, then the leaf is manufactured to the door opening.
Product Code: BD-TR06
Glass and Surface Details
The leaf structure is a single leaf with two divided side windows. The leaf carries panels. The finish is white.
The model features divided vertical windows on both sides. A silver handle was chosen for this model. The finish in the image is the catalogue selection — a different cladding can be chosen from the cladding options.
The design language is defined as classic villa.
Which Entrances Does It Suit?
Homes with gardens and residence apartments are this model's typical settings. Thanks to the side sections, wide door openings are closed with a single assembly. We compare where villa doors and building entrance doors differ on the villa door vs. building entrance door page.
Measurement, Production and Installation
Production starts with measurements taken on site. How the door opening is measured is covered on the how measurements are taken page; material choices are on the galvanized or DKP sheet steel and lock systems pages. This model's technical values are in the table below. After installation, our care and lifespan guidance and warranty and service terms apply.
Frequently Asked Questions
How much does the BD-TR06 model cost?
We do not publish list prices, because every door is made to measure. The cost is determined by the size of the door opening and the cladding, glass and lock you choose. After a free site survey we provide a written, itemized quote; we explain what drives the price on the steel door prices page.
Can I order this model in a color other than white?
You can. White is simply the finish in the photo, not a fixed choice — you can pick from the alternatives on the cladding options page.
Can the glass in the BD-TR06 be changed?
Yes. The glass in the image is this model's catalogue finish; it can be produced in different colors and patterns, provided Şişecam 5+5 mm laminated glass is used. The door can also be made without glass.
Do I need to take the measurements myself?
Our survey team measures on site. If you would still like to know the process, the how measurements are taken page explains the three points we measure from.
How can I order the BD-TR06 model?
You can fill in the pre-order form on our site or call us on 0532 689 21 46. Mentioning product code BD-TR06 in your request speeds things up. You can browse other villa steel door models on the villa steel door models page.
Specifications
| Product code | BD-TR06 |
| Category | Villa Steel Door Models |
| Leaf construction | single leaf + double divided sidelight |
| Color / finish | white |
| Surface pattern | panel (cassette panel) |
| Handle | silver handle |
| Design language | classic villa |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | divided vertical glass on both sides |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
