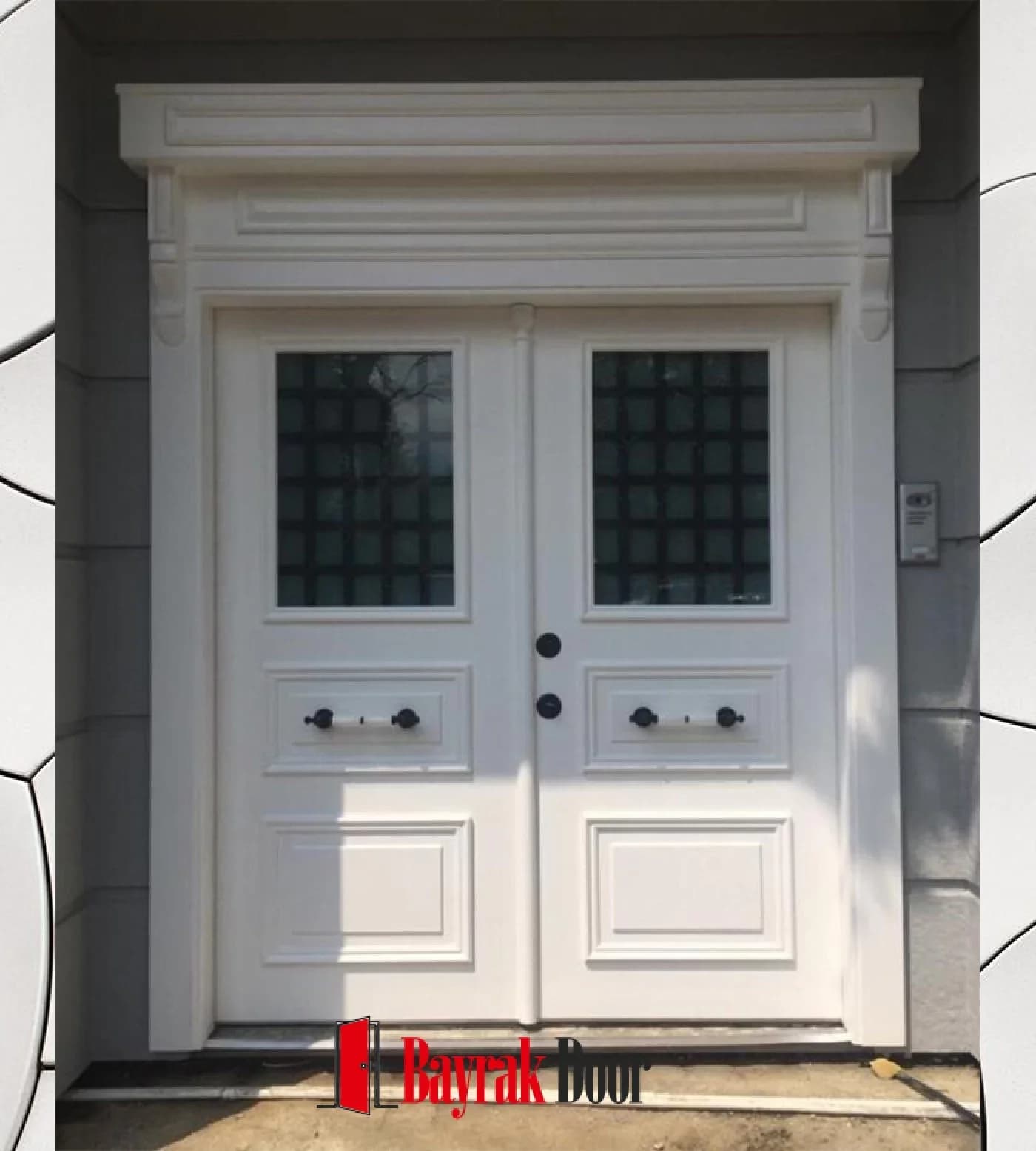

White double leaf, square-divided windows and a classic dentil-cornice frame. Product code: BD-TR105. Made to measure after an on-site survey.
- Leaf construction
- double leaf
- Color / finish
- white
- Handle
- black knocker and black pull bars
- Design language
- classic villa
- Upper section
- frame with dentil cornice
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
A white double leaf, square-divided windows and a classic dentil-cornice frame. It appears in our catalogue under code BD-TR105. Production begins after your order: first we carry out a site survey, then the leaf is manufactured to the door opening.
Product Code: BD-TR105
Leaf, Glass and Pediment
The door is arranged as a double leaf. The lower part of the leaf carries a panel. The catalogue color is white.
The glass section consists of square-divided windows. The upper section holds a dentil-cornice frame. A black knocker and black pulls serve as the hardware. The finish in the image is the catalogue selection — a different cladding can be chosen from the cladding options.
The design language is defined as classic villa.
Who Is This Model For?
It is typically used at villa entrances and residence apartments. Thanks to the side sections, wide door openings are closed with a single assembly. We compare where villa doors and building entrance doors differ on the villa door vs. building entrance door page.
Measurement, Production and Installation
Measurements are taken from the door opening, not the existing leaf; we explain the process step by step on the how measurements are taken page. Frame, sheet thickness, infill and lock values are listed in the specification table below. Sheet steel choices are compared on the galvanized or DKP sheet steel page and lock alternatives on the lock systems page. After installation, our care and lifespan guidance and warranty and service terms apply.
Frequently Asked Questions
How is the price of the BD-TR105 determined?
The price cannot be quoted before measuring. The size of the door opening and your cladding, glass and lock choices directly affect the cost; the site survey is free and is followed by an itemized quote. See steel door prices for details.
Can the color of the BD-TR105 be changed?
It can. White is simply the finish in the photo, not a fixed choice — you can pick from the alternatives on the cladding options page.
Can the glass in the BD-TR105 be changed?
Yes. The glass in the image is this model's catalogue finish; it can be produced in different colors and patterns, provided Şişecam 5+5 mm laminated glass is used. The door can also be made without glass.
Do I need to take the measurements myself?
We take the measurements during the site survey; nothing is required from you. Measurements come from the door opening, not the existing leaf — we describe the method on the how measurements are taken page.
How can I order the BD-TR105 model?
You can fill in the pre-order form on our site or call us on 0532 689 21 46. Mentioning product code BD-TR105 in your request speeds things up. You can browse other villa steel door models on the villa steel door models page.
Specifications
| Product code | BD-TR105 |
| Category | Villa Steel Door Models |
| Leaf construction | double leaf |
| Color / finish | white |
| Surface pattern | panel (cassette panel) at the bottom |
| Handle | black knocker and black pull bars |
| Upper section | frame with dentil cornice |
| Design language | classic villa |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | square-divided glass panels |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
