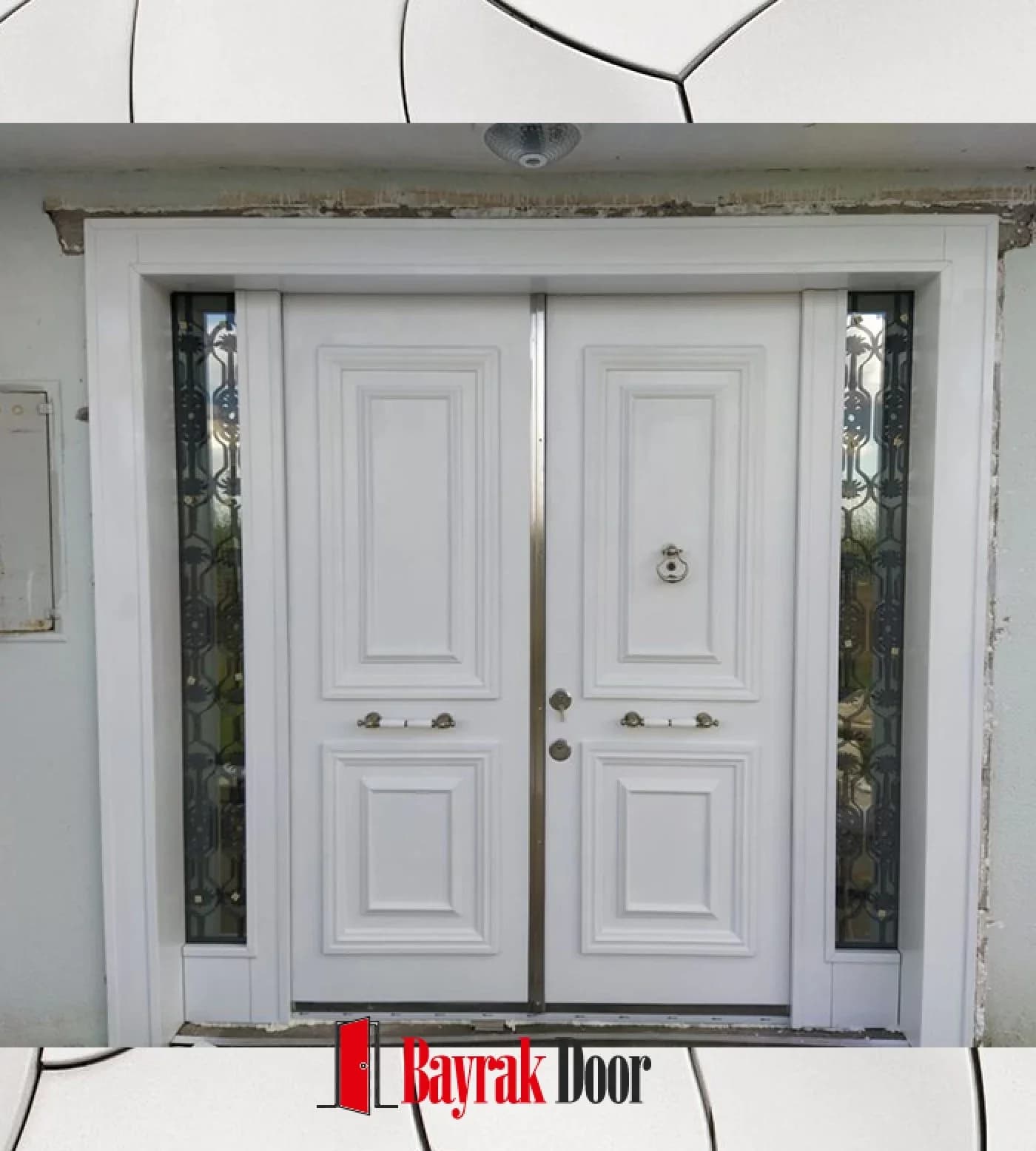

Paneled White Villa Door BD-TR91

Product CodeBD-TR91

White paneled double leaf with wrought-iron-worked windows on both sides. Product code: BD-TR91. Made to measure after an on-site survey.

Leaf construction
double leaf + twin side glass
Color / finish
white
Handle
silver pull bar
Design language
classic villa
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR91

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

This villa steel door model carries the code BD-TR91: a white paneled double leaf with wrought-iron-worked windows on both sides. Like every door we make, this model is produced to measure; no ready-made leaf is supplied from stock.

Product Code: BD-TR91

Leaf and Glass Layout

The leaf structure is a double leaf with two side windows. The leaf carries panels. The finish is white.

The glazing is resolved as side windows with wrought iron work. It is completed with a silver pull. The cladding and hardware are not fixed; the door can be produced with any of the alternatives on the cladding options page.

The design language is defined as classic villa.

Which Entrances Does It Suit?

Homes with gardens and detached homes are this model's typical settings. It is designed for wide openings: the side sections both cover the dimensions and brighten the entrance. We compare where villa doors and building entrance doors differ on the villa door vs. building entrance door page.

From Measurement to Installation

We take the measurements during the site survey — based on the door opening, not the existing leaf; the method is explained on the how measurements are taken page. You will find this model's frame, leaf and lock values in the table below; the lock systems and galvanized or DKP sheet steel pages detail the options. After delivery, warranty and service coverage takes effect; see the care and lifespan page for protecting the surface.

Frequently Asked Questions

How is the price of the BD-TR91 determined?

We do not publish list prices, because every door is made to measure. The cost is determined by the size of the door opening and the cladding, glass and lock you choose. After a free site survey we provide a written, itemized quote; we explain what drives the price on the steel door prices page.

Can the BD-TR91 be produced in a different color?

Yes. The white finish in the image is this model's catalogue selection; it can be produced in different colors with compact laminate, composite, marine plywood and wood veneer options. We compare them on the cladding options page.

Can the glass in the BD-TR91 be changed?

Yes. The glass in the image is this model's catalogue finish; it can be produced in different colors and patterns, provided Şişecam 5+5 mm laminated glass is used. The door can also be made without glass.

Do I need to take the measurements myself?

Measuring is our job. We measure the clear width of the door opening, its height from the finished floor and the wall thickness; details are on the how measurements are taken page.

How can I order the BD-TR91 model?

You can fill in the pre-order form on our site or call us on 0532 689 21 46. Mentioning product code BD-TR91 in your request speeds things up. You can browse other villa steel door models on the villa steel door models page.

Specifications

Product codeBD-TR91
CategoryVilla Steel Door Models
Leaf constructiondouble leaf + twin side glass
Color / finishwhite
Surface patternpanel (cassette panel)
Handlesilver pull bar
Design languageclassic villa
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionsidelights with wrought iron detailing
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
