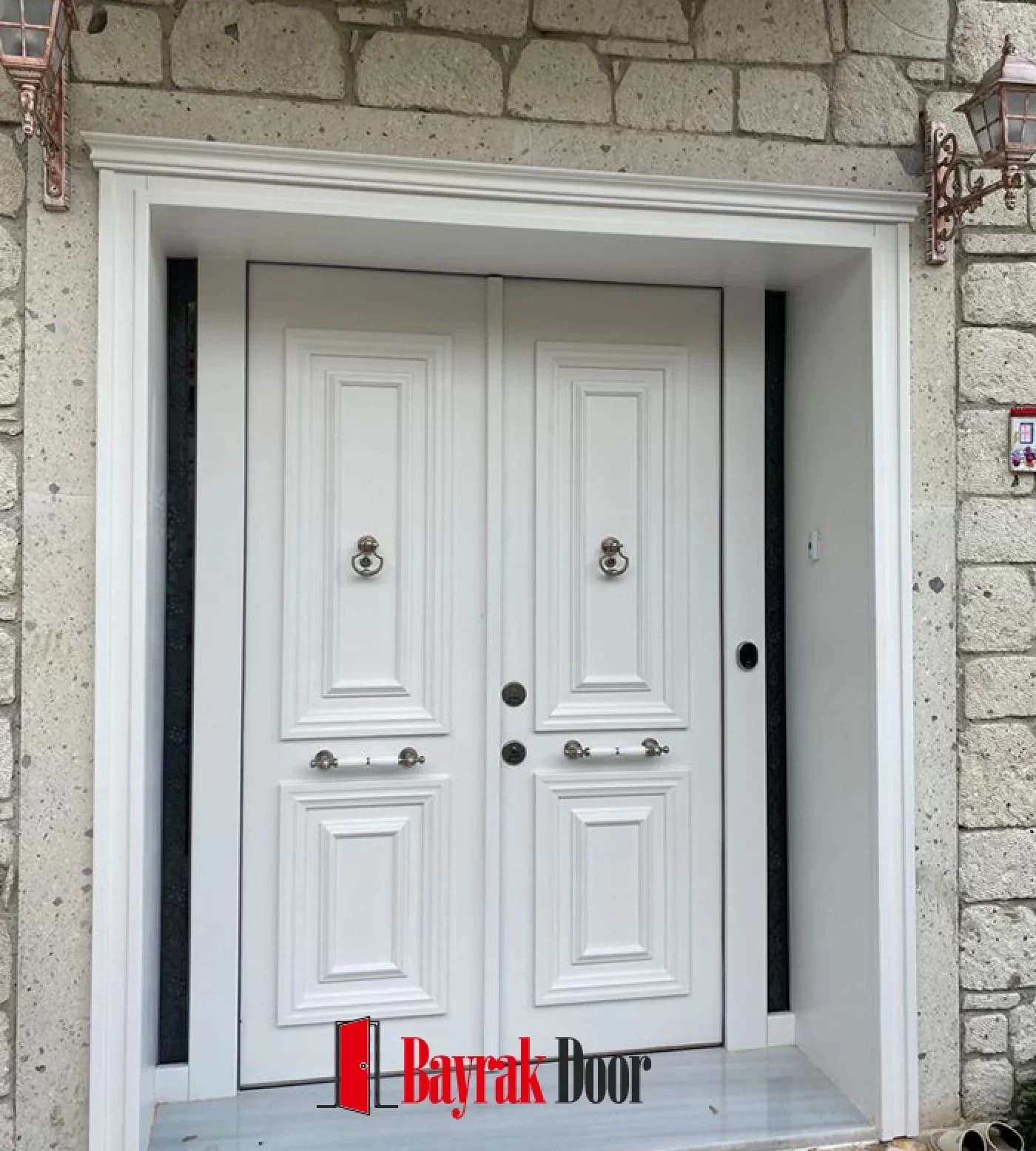

A white two-section panel double leaf set within a stone facade. Product code: BD-TR52. Made to measure after a free on-site survey.
- Leaf construction
- double leaf
- Color / finish
- white
- Glass
- Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
- Handle
- silver knocker and handle
- Design language
- classic villa
- Upper section
- corniced frame
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
BD-TR52 is a villa steel door that stands out with its white two-section panel double leaf set within a stone facade. Production begins after your order: first comes a free on-site survey, then the leaf is built to fit the door opening. The finish in the photo is white cladding.
Product Code: BD-TR52
Leaf and Upper Section
It is built as a double leaf. The surface carries a two-section panel. The surface is finished in white.
The upper section features a corniced frame. This model uses a silver knocker and handle. Color, pattern, and handle choices can be adapted to your project; the options are compared on the cladding options page.
Its design language is best described as classic villa.
Entrances It Suits
It is chosen primarily for residence apartments and villa entrances. It is designed for wide openings: the side sections both cover the span and brighten the entrance. The difference between the two types goes beyond size; we cover the details on the villa door vs. building entrance door page.
Measurement, Production, and Installation
We take the measurements during the survey — based on the door opening, not the existing leaf; the method is explained on the how measurements are taken page. You will find this model's frame, leaf, and lock values in the table below; the lock systems and galvanized or DKP sheet pages detail the options. After delivery, our warranty and service coverage takes effect; see the care and lifespan page for protecting the surface.
Frequently Asked Questions
How much is the BD-TR52?
There is no fixed price — since every leaf is built to size, the total depends on the dimensions, the cladding, and the lock you choose. After the survey we send a written, itemized quote. The line items are detailed on the steel door prices page.
Can the BD-TR52 be produced in a different color?
It can. White is simply the finish in the photo, not a fixed choice — you can pick from the alternatives on the cladding options page.
How does the measurement stage work when ordering the BD-TR52?
Measuring is our job. We measure the clear width of the door opening, its height from the finished floor, and the wall thickness; the details are on the how measurements are taken page.
How do I get a quote for the BD-TR52?
You can fill out the pre-order form on our site or reach us at 0532 689 21 46. Mentioning product code BD-TR52 in your request speeds things up. You can browse our other villa steel doors on the villa steel door models page.
Specifications
| Product code | BD-TR52 |
| Category | Villa Steel Door Models |
| Leaf construction | double leaf |
| Color / finish | white |
| Surface pattern | two-section panel |
| Handle | silver knocker and handle |
| Upper section | corniced frame |
| Design language | classic villa |
| Glass | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
