Two-Section Panel White Villa Door BD-TR87

Product CodeBD-TR87

A white paneled leaf with a dentil-corniced frame and glazed upper section. Product code: BD-TR87. Made to measure after a free on-site survey.

Leaf construction
single leaf + double sidelight + transom window
Color / finish
white
Handle
black knocker and black handle
Design language
classic villa
Upper section
glazed transom window
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR87

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

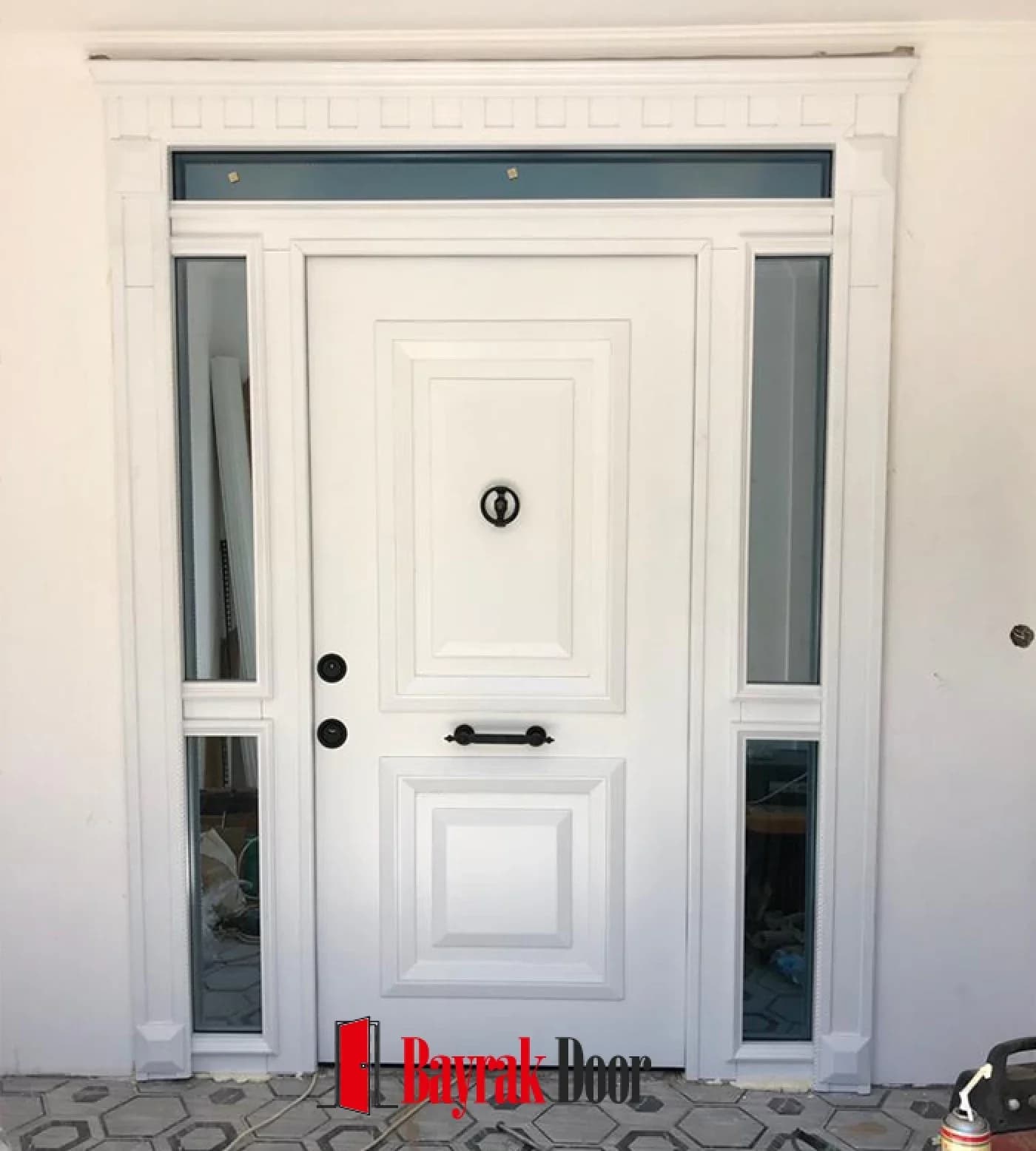

This villa steel door model carries the code BD-TR87: a white paneled leaf with a dentil-corniced frame and glazed upper section. It is made to measure; whatever the width and height of your entrance, the leaf is built to match. The image shows the white finish.

Product Code: BD-TR87

Glass, Upper Section, and Surface

It is built as a single leaf with twin side glass and a transom window. The surface work takes the form of a two-section panel. The color applied is white.

The glazing takes the form of vertical side glass. The upper section features a glazed transom window. This model uses a black knocker and black handle. Cladding and hardware are not fixed; it can be produced with any of the alternatives on the cladding options page.

Its design language is best described as classic villa.

Where Is It Used?

It is chosen primarily for residence apartments and houses with gardens. Since the side sections widen the opening, it suits wide-fronted entrances rather than narrow ones — and it brings daylight into the hall. The difference between the two types goes beyond size; we cover the details on the villa door vs. building entrance door page.

Measurement, Production, and Installation

Measurements are taken from the door opening, not the existing leaf; the how measurements are taken page walks through it step by step. Frame, sheet thickness, infill, and lock values are listed in the specification table below. Sheet choices are compared on the galvanized or DKP sheet page, and lock alternatives on the lock systems page. After delivery, our warranty and service coverage takes effect; see the care and lifespan page for protecting the surface.

Frequently Asked Questions

How much does the BD-TR87 model cost?

We cannot quote a price before measuring. The size of the door opening and your choice of cladding, glass, and lock directly affect the total; the survey is free, and an itemized quote follows. See steel door prices for details.

Can I have this model in a color other than white?

Yes. The white finish shown is this model's catalog choice; it can be produced in other colors with compact laminate, composite, marine plywood, and wood cladding options. We compare them on the cladding options page.

Can the glass pattern be different?

Yes. The glass shown is this model's catalog finish; provided Şişecam 5+5 mm laminated glass is used, it can be produced in different colors and patterns. A glass-free version is also possible.

How are measurements taken for the BD-TR87?

We take the measurements during the survey; nothing is required on your part. Measurements are taken from the door opening, not the existing leaf — the method is explained on the how measurements are taken page.

How do I get a quote for the BD-TR87?

You can fill out the pre-order form on our site or reach us at 0532 689 21 46. Mentioning product code BD-TR87 in your request speeds things up. You can browse our other villa steel doors on the villa steel door models page.

Specifications

Product codeBD-TR87
CategoryVilla Steel Door Models
Leaf constructionsingle leaf + double sidelight + transom window
Color / finishwhite
Surface patterntwo-section panel
Handleblack knocker and black handle
Upper sectionglazed transom window
Design languageclassic villa
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionvertical sidelights
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
