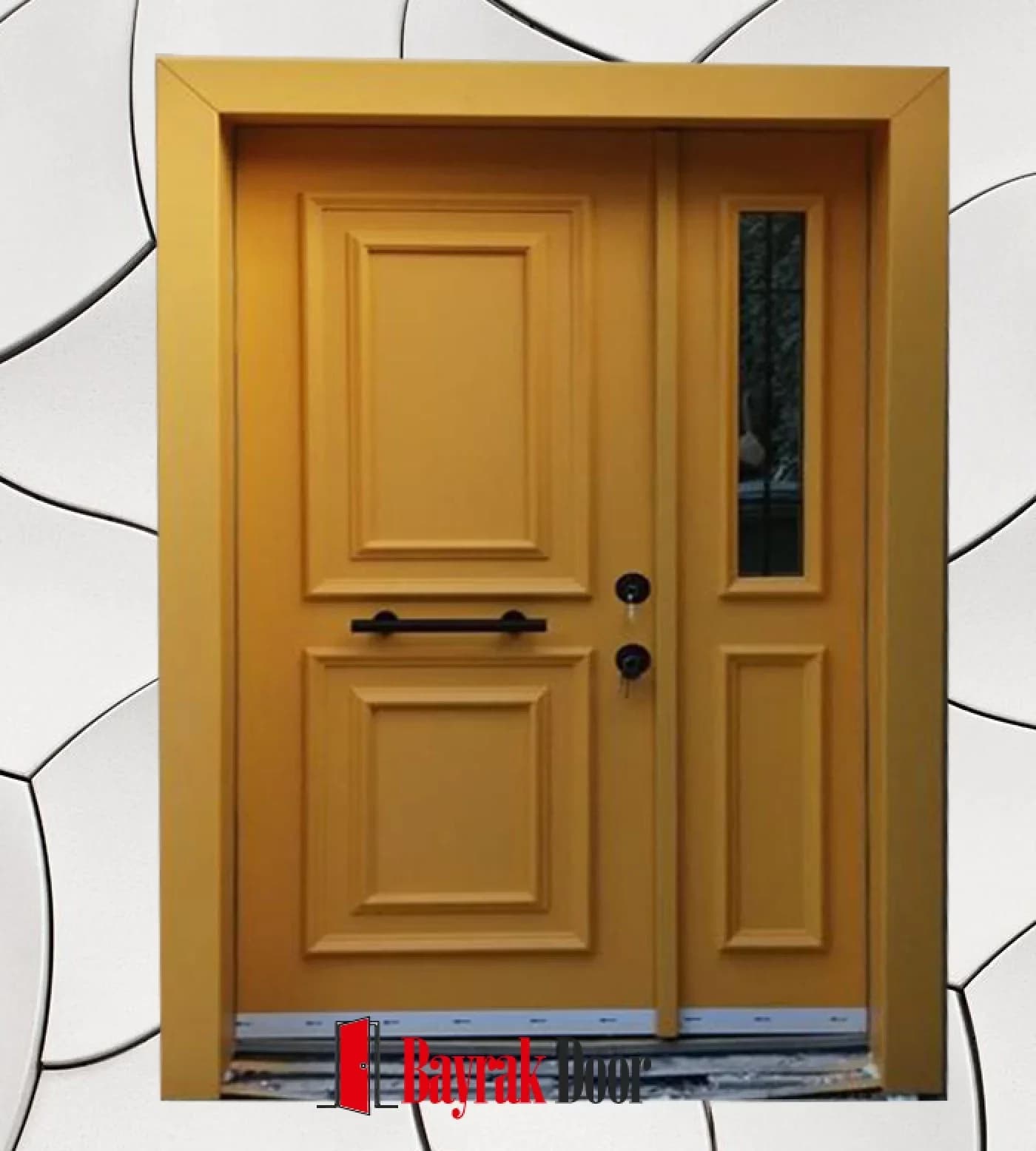

Mustard yellow two-section panel set off by a black handle. Product code: BD-TR58. Made to measure after a free on-site survey.
- Leaf construction
- single leaf + narrow sidelight
- Color / finish
- mustard yellow
- Handle
- black pull bar
- Design language
- classic villa
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
This villa steel door model carries the code BD-TR58: a mustard yellow two-section panel set off by a contrasting black handle. Production begins after your order: first an on-site survey, then the leaf is manufactured to fit the door opening. The photo shows the mustard yellow finish.
Product Code: BD-TR58
Leaf and Glass Layout
The model is configured as a single leaf plus a narrow side glass panel. The surface is worked as a two-section panel design. The color applied is mustard yellow.
The model features a narrow vertical side glass panel. It is completed with a black pull handle. Color, pattern and handle can all be tailored to your project; the cladding options page compares the alternatives.
Its design language is best described as classic villa.
Suitable Entrances
Detached homes and villa entrances are this model's typical settings. Thanks to the side sections, wide door openings are closed with a single assembly. The difference between the two door types is not just a matter of size; we go into detail on the villa door vs. building entrance door page.
Measurement, Production and Installation
Measurements are taken from the door opening, not the existing leaf; the how measurements are taken page walks through it step by step. Frame, sheet thickness, infill and lock values are listed in the specification table below. Sheet choice is compared on the galvanized or DKP sheet page, and lock alternatives on the lock systems page. Care steps that extend the door's life are on the care and lifespan page, and what is covered is on the warranty and service page.
Frequently Asked Questions
How much does the BD-TR58 cost?
There is no fixed price — since every leaf is built to measure, the total depends on size, cladding and lock choice. After the survey we send a written, itemized quote. The line items are detailed on the steel door prices page.
Can the BD-TR58 be produced in a different color?
Yes. The mustard yellow finish in the photo is this model's catalog choice; it can be produced in other colors with compact laminate, composite, marine plywood and wood cladding options. We compare them on the cladding options page.
Can the glass pattern be different?
Yes. The glass shown is this model's catalog finish; provided Şişecam 5+5 mm laminated glass is used, it can be produced in a different color and pattern. It can also be made without glass.
Do I need to take the measurements myself?
Measuring is our job. We record the clear width of the door opening, the height from finished floor, and the wall thickness; details are on the how measurements are taken page.
How do I get a quote for the BD-TR58?
You can fill in the pre-order form on our site or reach us on 0532 689 21 46. Mentioning product code BD-TR58 in your request speeds things up. You can browse other villa steel door models on the villa steel door models page.
Specifications
| Product code | BD-TR58 |
| Category | Villa Steel Door Models |
| Leaf construction | single leaf + narrow sidelight |
| Color / finish | mustard yellow |
| Surface pattern | two-section panel |
| Handle | black pull bar |
| Design language | classic villa |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | narrow vertical side glass |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
