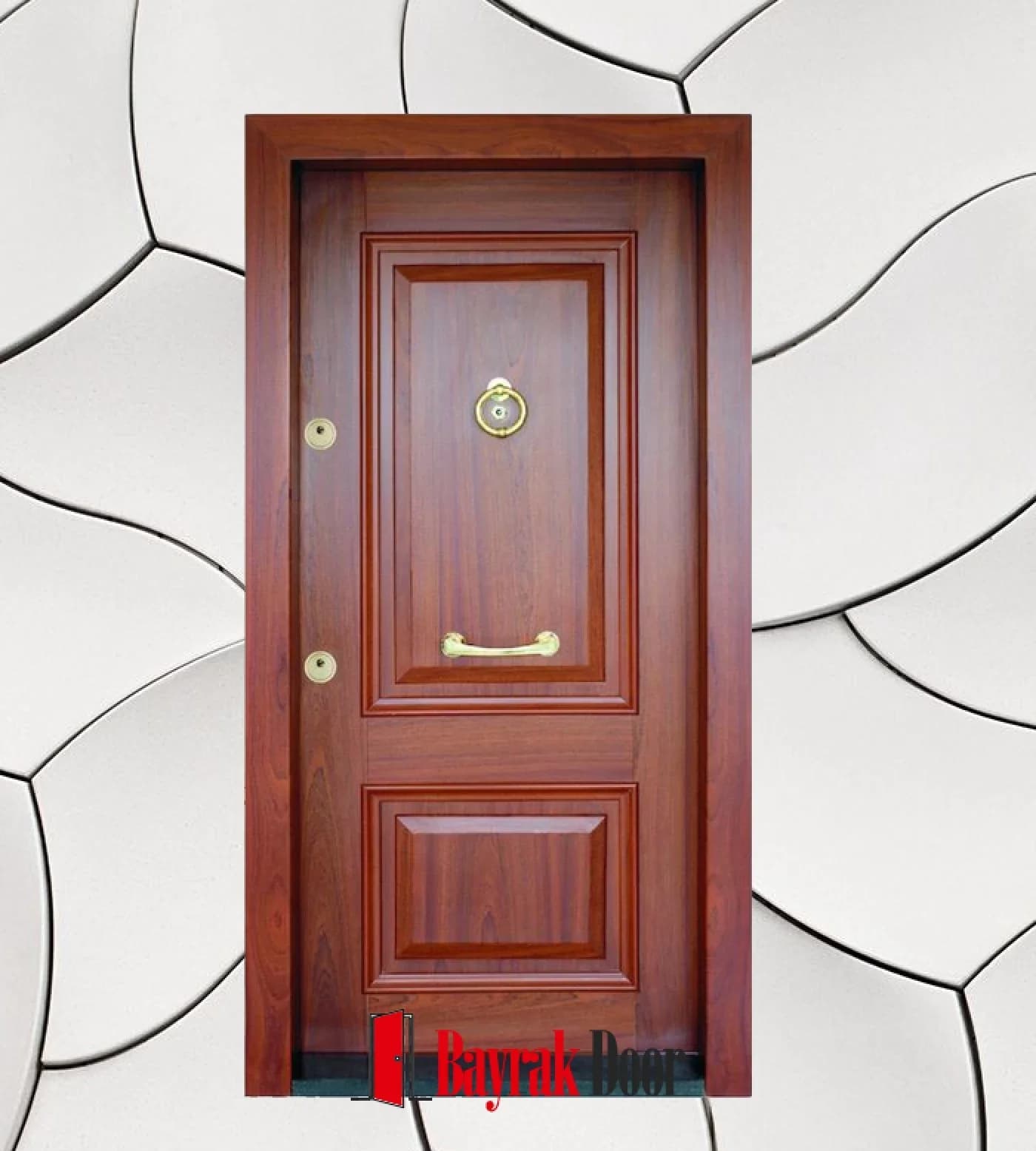

Two-Section Paneled Red Walnut Steel Door C-TR722

Product CodeC-TR722

Red walnut body with a two-section panel and gold hardware set. Product code: C-TR722. Made to measure after a free on-site survey.

Leaf construction: single leaf
Color / finish: red walnut
Glass: Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
Handle: gold knocker and gold handle
Design language: classic

Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeC-TR722

Survey and measurement are free
Same-day response
Made in our own factory
Lifetime manufacturing warranty

+90 532 689 21 46 WhatsApp

Download this model's PDF spec sheet

Worldwide shipping & export

Made in our own factory

Lifetime manufacturing warranty

#steel door #flat entrance steel door #c-tr722 #classic #made-to-measure steel door #classic design #wood tone #single leaf

The two-section paneled red walnut steel door, model C-TR722, is built as a red walnut body with a two-section panel and a gold hardware set. It is manufactured to order; whatever the width and height of your entrance, the leaf is built to match.

Product Code: C-TR722

Classic Surface Craftsmanship

The leaf layout is a single leaf. The leaf carries a two-section panel design. The catalog color is a red walnut tone.

It is completed with a gold knocker and gold handle. Color, pattern and handle can all be tailored to your project; the cladding options page compares the alternatives.

Its design language is best described as classic.

Who Is This Model For?

Flat entrances and residence apartments are this model's typical settings. The one-piece leaf presents an unbroken surface from the outside.

Production and Installation Process

Measurements are taken from the door opening, not the existing leaf; the how measurements are taken page walks through it step by step. Frame, sheet thickness, infill and lock values are listed in the specification table below. Sheet choice is compared on the galvanized or DKP sheet page, and lock alternatives on the lock systems page. After delivery, warranty and service coverage applies; see the care and lifespan page for keeping the surface in shape.

Frequently Asked Questions

How is the price set for the C-TR722?

We don't publish list prices, because every door is made to measure. The total is set by the size of the door opening and the cladding, glass and lock you choose. After a free on-site survey we provide a written, fully itemized quote; the steel door prices page explains what moves the price.

Can the color of the C-TR722 be changed?

It can. Red walnut is simply the finish photographed, not a fixed spec — you can choose from the alternatives on the cladding options page.

Do I need to take the measurements myself?

We take the measurements during the survey; nothing is required on your side. Measurements come from the door opening, not the existing leaf — the method is explained on the how measurements are taken page.

How can I order model C-TR722?

You can fill in the pre-order form on our site or reach us on 0532 689 21 46. Mentioning product code C-TR722 in your request speeds things up. You can browse other steel door models on the steel door models page.

Specifications

Product code	C-TR722
Category	Steel Door Models
Leaf construction	single leaf
Color / finish	red walnut
Surface pattern	two-section panel
Handle	gold knocker and gold handle
Design language	classic
Glass	Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
Place of use	Flat entrance door
Sound and heat insulation	Insulation via infill material and gasket system
Interior surface	Interior panel in any desired color and finish
Sheet thickness	Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
Frame	Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcement	Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
Leaf	Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcement	Lock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thickness	Bare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill	80 kg/m³ rock wool
Lock surround	integrated with 1 mm (0.039") grade 304 stainless steel
Hinge	3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement	5 mm (0.197") thick flat bar
Fixed pin	5 units on the hinge side, 20 mm (0.787") diameter
Gasket	Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish	10 mm (0.394") Camsan first-grade iroko
Finish options	Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate
Varnish	Polyurethane infill, 90-micron coverage rating
Polish	Akzo Nobel
Accessories	first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
Installation	One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap	1 cm (0.394"), filled with polyurethane foam
Production	Manufactured to custom on-site measurements
Warranty	Unlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock system	Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
