Black Villa Door with Gold Plates BD-TR39

Product CodeBD-TR39

Black body with gold plate details and diamond-grid patterned side glass. Product code: BD-TR39. Made to measure after an on-site survey.

Leaf construction
single leaf + double sidelight
Color / finish
black
Handle
gold knocker and gold handle
Design language
luxury classic villa
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR39

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

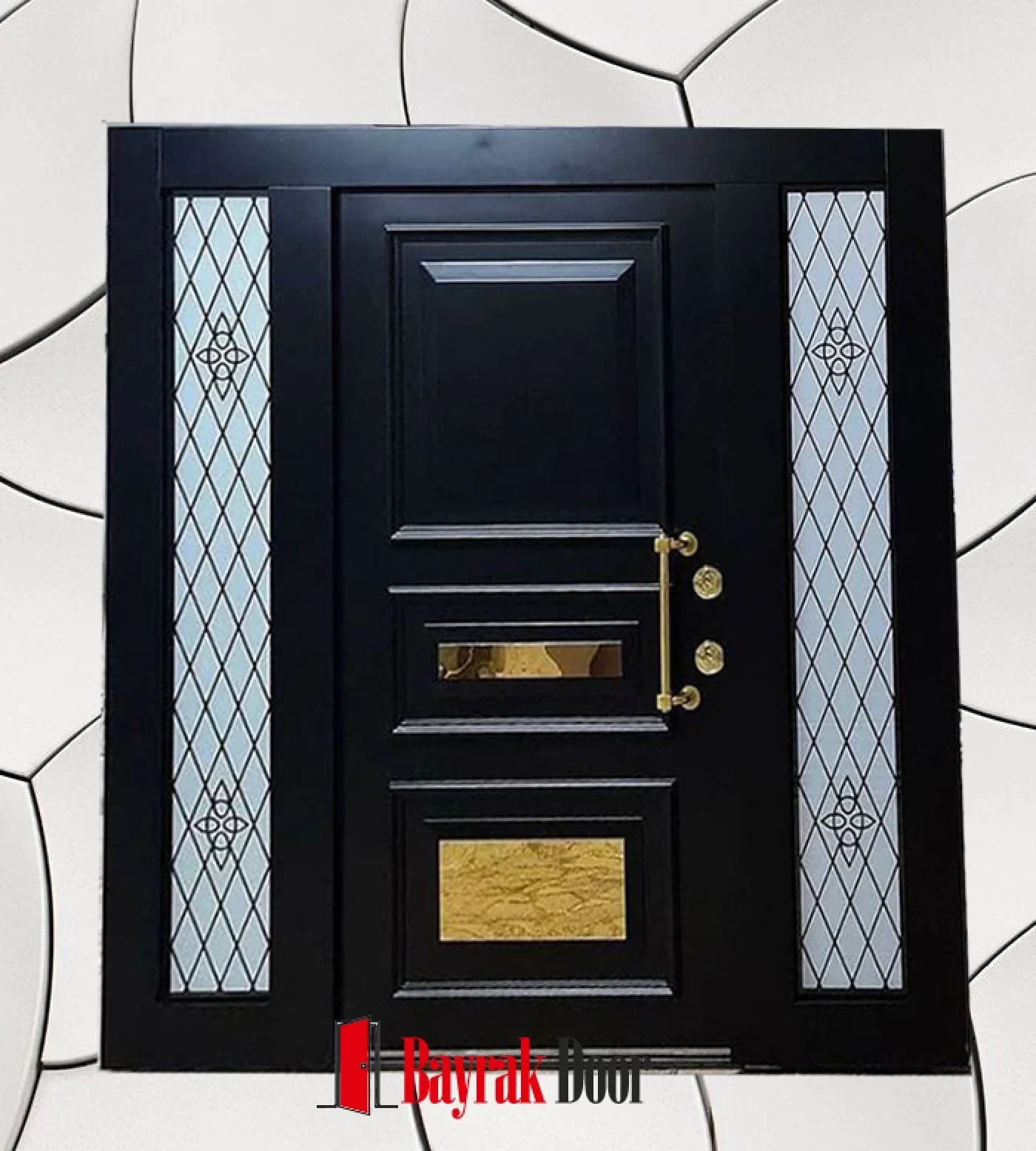

This villa steel door carries code BD-TR39: a black body with gold plate details and diamond-grid patterned side glass. It is made entirely to measure; whatever the width and height of your entrance, the leaf is produced to match.

Product Code: BD-TR39

Leaf and Glass Layout

The door is configured as a single leaf with two side glass panels. The leaf carries gold plates and paneling. The catalog color is black.

The model features diamond-grid patterned side glass. A gold knocker and gold handle are used. Color, pattern and handle can all be adapted to your project; the cladding options page compares the alternatives.

The design language is defined as luxury classic villa.

Who Is This Model For?

It is chosen first and foremost for villa entrances and residence apartments. Thanks to the side sections, wide door openings are closed with a single composition. We compare exactly where a villa door and a building entrance door part ways on the difference between villa doors and building entrance doors page.

Production and Installation Process

We take the measurements during the survey — the door opening is the reference, not the existing leaf; the method is explained on the how measurements are taken page. You will find this model's frame, leaf and lock specifications in the table below; the lock systems and galvanized or DKP sheet steel pages detail the options. After installation, the care and lifespan and warranty and service terms apply.

Frequently Asked Questions

How much does the BD-TR39 cost?

The price cannot be quoted before measuring. The size of the door opening and your cladding, glass and lock choices directly affect the total; the survey is free of charge and is followed by an itemized quote. See steel door prices for details.

Can the BD-TR39 be produced in a different color?

Yes — the color is not fixed. It appears in black in the catalog, but the cladding is decided per project; on the cladding options page we cover which surface works best where.

Can the glass in the BD-TR39 be changed?

Yes. The glass shown is this model's catalog finish; provided Şişecam 5+5 mm laminated glass is used, it can be produced in different colors and patterns. It can also be made without glass.

How does the measuring stage work when ordering the BD-TR39?

Our survey team measures on site. If you would still like to know the process, the how measurements are taken page explains the three points we measure.

How can I order the BD-TR39?

You can fill in the pre-order form on our site or call us on 0532 689 21 46. Mentioning product code BD-TR39 in your request speeds the process up. You can browse other villa steel door models on the villa steel door models page.

Specifications

Product codeBD-TR39
CategoryVilla Steel Door Models
Leaf constructionsingle leaf + double sidelight
Color / finishblack
Surface patterngold plates and panel (cassette panel)
Handlegold knocker and gold handle
Design languageluxury classic villa
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectiondiamond grid pattern sidelights
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
