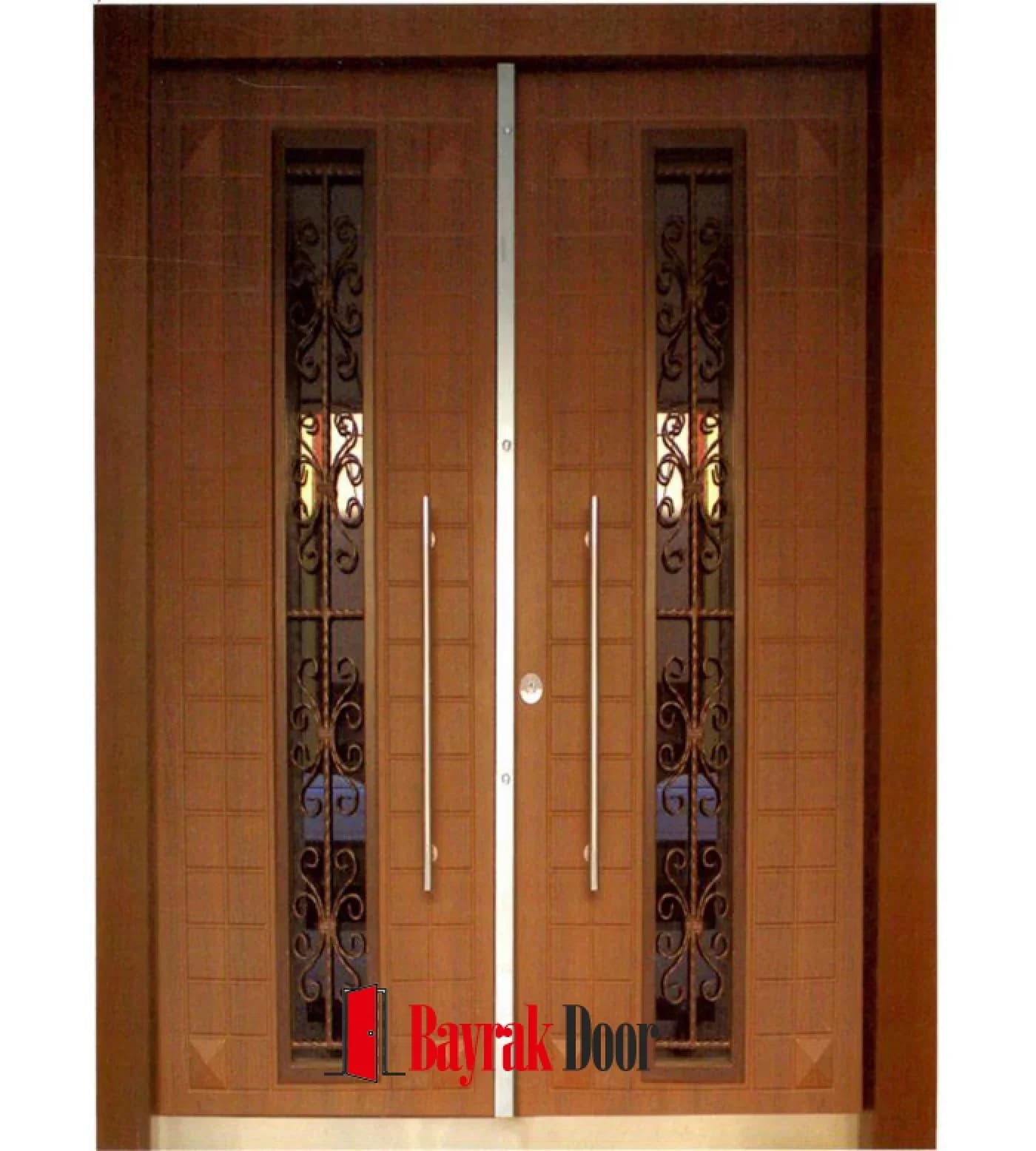

Vertical glass panels with bronze-toned wrought iron on a honey body. Product code: TR508. Made to measure after an on-site survey.
- Leaf construction
- double leaf
- Color / finish
- honey-toned wood
- Handle
- long straight stainless steel handle
- Design language
- classic wrought-iron
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
Vertical glass panels with bronze-toned wrought iron on a honey body — that is what sets building entrance door model TR508 apart. It is not sold in standard sizes; your entrance is measured on site and the leaf is built to that measurement.
Product Code: TR508
Surface and Glass Section
The leaf structure is double leaf. The leaf carries a bronze scroll motif. The finish is in a honey wood tone.
The glass layout is resolved as vertical glass panels with gold-bronze wrought iron over a dark ground. It is finished with a long straight stainless steel handle. The finish shown is the catalogue selection — a different cladding can be chosen from the cladding options.
The design language is best described as classic wrought iron.
Which Entrances Does It Suit?
It is most often used for commercial building entrances and apartment building entrances. Thanks to the side sections, wide door openings are closed with a single assembly. We compare where a villa door and a building entrance door differ on the villa door vs building entrance door page.
Production and Installation
We take the measurements during the on-site survey — based on the door opening, not the existing leaf; the method is explained on the how to measure page. You can find this model's frame, leaf and lock specifications in the table below; the lock systems and galvanized or DKP sheet steel pages detail the options. After delivery, warranty and service coverage applies; see the care and lifespan page for keeping the surface in good condition.
Frequently Asked Questions
How much does TR508 cost?
We cannot quote a price before measuring. The size of the opening and your cladding, glass and lock choices directly affect the amount; the survey is free and is followed by an itemized quote. See steel door prices for details.
Can TR508 be produced in a different colour?
Yes. The honey wood finish shown is this model's catalogue selection; it can be produced in different colours with compact laminate, composite, marine plywood and wood veneer options. We compare the alternatives on the cladding options page.
Can the glass on TR508 be changed?
Yes. The glass shown is this model's catalogue finish; it can be produced in a different colour or pattern, provided Şişecam 5+5 mm laminated glass is used. It can also be produced without glass.
How is TR508 measured?
Measuring is our job. We measure the clear width of the opening, the height from the finished floor and the wall thickness; the details are on the how to measure page.
How can I order model TR508?
You can fill in the pre-order form on our website or call us on 0532 689 21 46. Quoting product code TR508 in your request helps us respond faster. You can browse our other building entrance door models on the building entrance door models page.
Specifications
| Product code | TR508 |
| Category | Building Entrance Steel Door Models |
| Leaf construction | double leaf |
| Color / finish | honey-toned wood |
| Surface pattern | bronze scroll motif |
| Handle | long straight stainless steel handle |
| Design language | classic wrought-iron |
| Push-to-open system | self-closing system within 6 seconds |
| Door closer | size 5 door closer |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | gold-bronze wrought iron vertical glass panels on a dark background |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
