Horizontal-Lamella Dark Distressed Wood Villa Door BD-TR80

Product CodeBD-TR80

Dark distressed-wood lamella leaf with narrow, square-divided side glazing. Product code: BD-TR80. Manufactured to measure, following an on-site survey.

Leaf construction
single leaf + double divided sidelight
Color / finish
dark distressed wood
Handle
long vertical black handle
Design language
modern-rustic villa
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR80

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

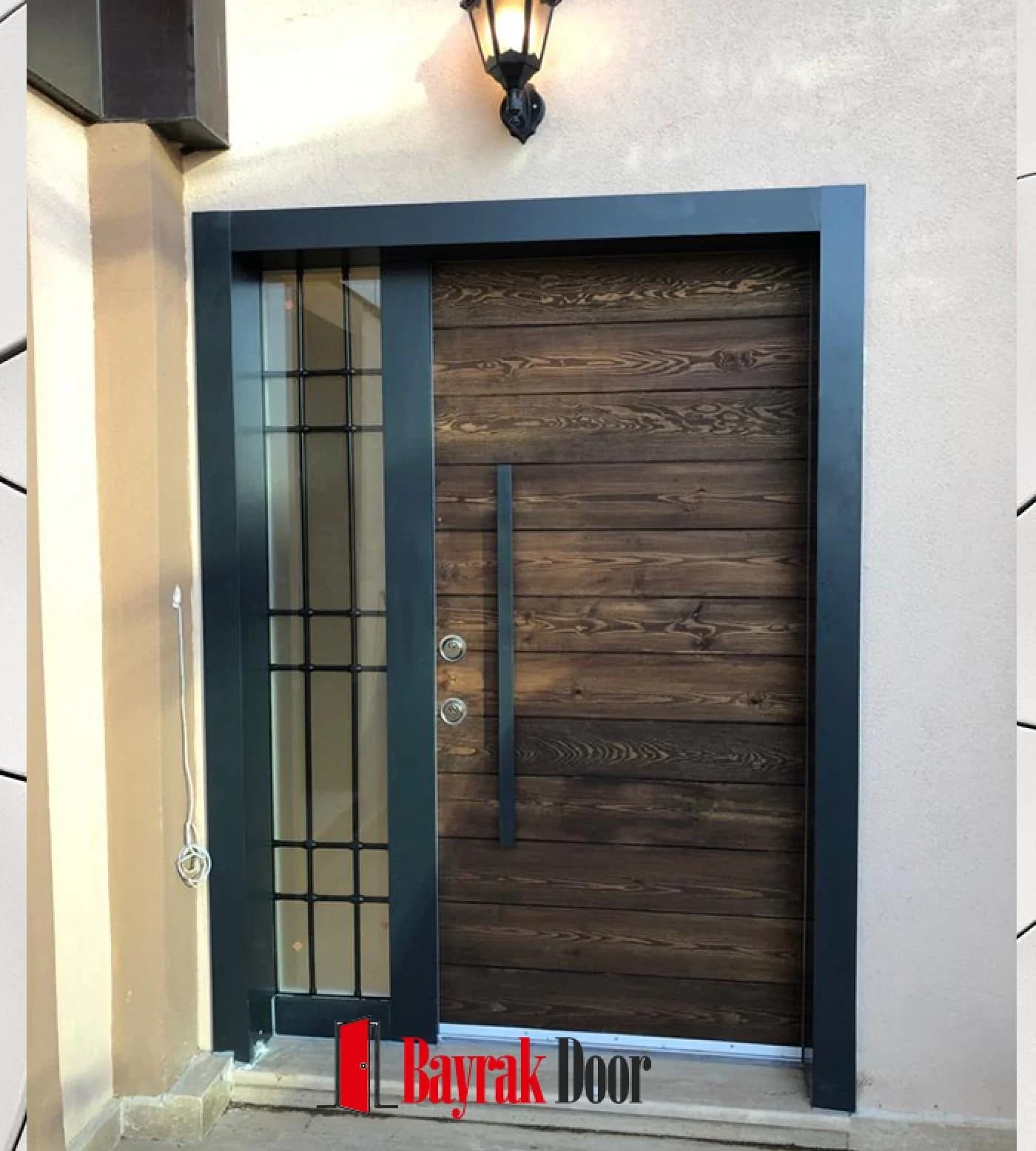

This villa steel door model carries the code BD-TR80: a dark distressed-wood lamella leaf with narrow, square-divided side glazing. Like every door we build, this model is manufactured to measure — there's no ready-made leaf pulled from stock.

Product Code: BD-TR80

Leaf and Glass Layout

The leaf layout is a single leaf with double divided side glazing. The leaf surface is worked in horizontal lamellas. The catalog color is a dark distressed-wood tone.

The glazing is resolved as square-divided side glass panels. It's finished with a long black vertical handle. Cladding and hardware aren't fixed; it can be produced with the alternatives on our cladding options page.

The design language is described as modern-rustic villa.

Who Is This Model For?

Villa entrances and residence apartments are the typical settings for this model. It's designed for wide openings: the side sections both fill the required span and bring light into the entrance. We've compared where a villa door and a building entrance door part ways on our villa door vs. building entrance door page.

From Measurement to Installation

We take the measurement during the on-site survey — it's based on the door opening, not the existing leaf; the method is explained on our how measurements are taken page. You'll find this model's frame, leaf and lock specifications in the table below; our lock systems and galvanized vs. cold-rolled steel pages detail the options. After delivery, our warranty and service terms apply — see our care and lifespan page for how to protect the finish.

Frequently Asked Questions

How much does BD-TR80 cost?

We don't publish a list price, because the door is built to measure. The amount is set by the size of the door opening plus the cladding, glass and lock you choose. After a free survey, we provide a written, itemized quote; we've explained what affects the price on our steel door prices page.

Can BD-TR80 be made in a different color?

It can be. Dark distressed wood is simply the finish shown in the photo, not a fixed choice — you can pick from the alternatives on our cladding options page.

Can the glass be changed on the BD-TR80 model?

Yes. The glass shown is this model's catalog finish; it can be produced in a different color and pattern as long as Şişecam 5+5 mm laminated glass is used. A version without glass is also possible.

Do I need to take the measurement myself?

Measuring is our job. We measure the clear width and height of the door opening from the finished floor, plus the wall thickness; details are on our how measurements are taken page.

How can I order the BD-TR80 model?

You can fill out the pre-order form on the site, or reach us at 0532 689 21 46. Mentioning the BD-TR80 product code in your request speeds up the process. You can browse other villa steel door models on our villa steel door models page.

Specifications

Product codeBD-TR80
CategoryVilla Steel Door Models
Leaf constructionsingle leaf + double divided sidelight
Color / finishdark distressed wood
Surface patternhorizontal slats
Handlelong vertical black handle
Design languagemodern-rustic villa
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionsquare-divided side glass panels
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
