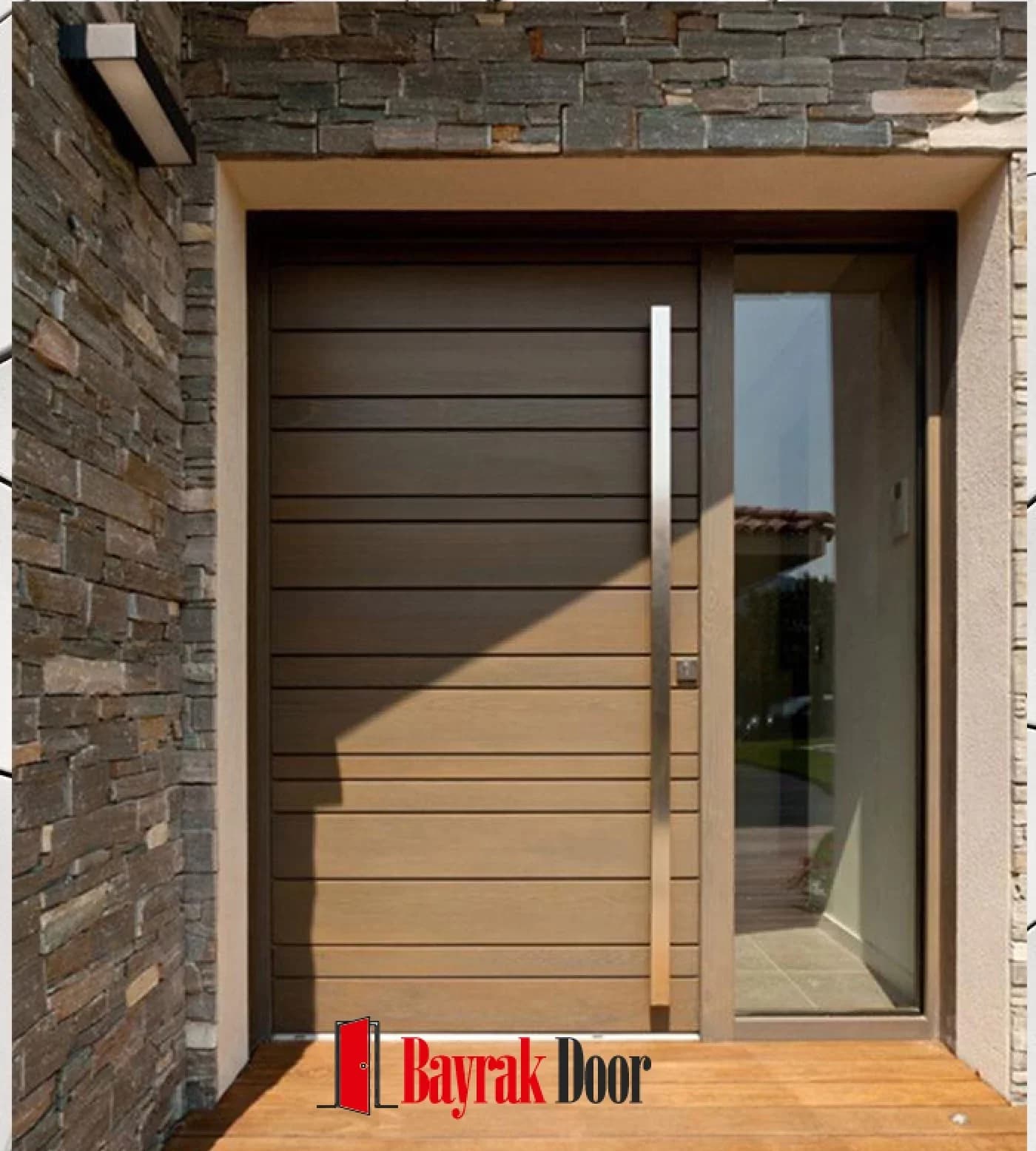

Honey-toned horizontal-lamella leaf in a stone facade, with full-height side glazing. Product code: BD-TR79. Manufactured to measure, following an on-site survey.
- Leaf construction
- single leaf + sidelight
- Color / finish
- honey-toned wood
- Handle
- long vertical stainless steel handle
- Design language
- modern villa
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
This villa steel door model carries the code BD-TR79: a honey-toned horizontal-lamella leaf set in a stone facade, with full-height side glazing. Production begins once the order is placed: an on-site survey comes first, and the leaf is then manufactured to fit that door opening. The catalog finish is a honey-toned wood.
Product Code: BD-TR79
Leaf and Glass Layout
The leaf layout is single-leaf plus a side glass panel. The leaf surface is worked in horizontal lamellas. The catalog color is a honey-toned wood.
The model features full-height side glazing. A long vertical stainless handle was chosen for this model. Cladding and hardware aren't fixed; it can be produced with the alternatives on our cladding options page.
The design language is described as modern villa.
Who Is This Model For?
Villa entrances and residence apartments are the typical settings for this model. It's designed for wide openings: the side sections both fill the required span and bring light into the entrance. We've compared where a villa door and a building entrance door part ways on our villa door vs. building entrance door page.
From Measurement to Installation
Measurements are taken from the door opening, not the existing leaf — we've written up the step-by-step method on our how measurements are taken page. Frame, steel thickness, infill and lock specifications are listed in the feature table below. The steel choice is compared on our galvanized vs. cold-rolled steel page, and lock alternatives on our lock systems page. After delivery, our warranty and service terms apply — see our care and lifespan page for how to protect the finish.
Frequently Asked Questions
How is the price determined for BD-TR79?
There's no fixed price — since every leaf is manufactured to measure, the amount depends on size, cladding and lock choice. We send a written, itemized quote after the survey. We've broken down the line items on our steel door prices page.
Can BD-TR79 be made in a different color?
It can be. Honey-toned wood is simply the finish shown in the photo, not a fixed choice — you can pick from the alternatives on our cladding options page.
Can the glass be changed on the BD-TR79 model?
Yes. The glass shown is this model's catalog finish; it can be produced in a different color and pattern as long as Şişecam 5+5 mm laminated glass is used. A version without glass is also possible.
Do I need to take the measurement myself?
Measuring is our job. We measure the clear width and height of the door opening from the finished floor, plus the wall thickness; details are on our how measurements are taken page.
How can I order the BD-TR79 model?
You can fill out the pre-order form on the site, or reach us at 0532 689 21 46. Mentioning the BD-TR79 product code in your request speeds up the process. You can browse other villa steel door models on our villa steel door models page.
Specifications
| Product code | BD-TR79 |
| Category | Villa Steel Door Models |
| Leaf construction | single leaf + sidelight |
| Color / finish | honey-toned wood |
| Surface pattern | horizontal slats |
| Handle | long vertical stainless steel handle |
| Design language | modern villa |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | full-height sidelight |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
