Understated russet-orange horizontal-lamella leaf and a full-height anthracite handle. Product code: BD-TR102. Manufactured to measure, following an on-site survey.
- Leaf construction
- single leaf
- Color / finish
- red-orange wood
- Glass
- Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
- Handle
- long vertical anthracite handle
- Design language
- modern villa
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty

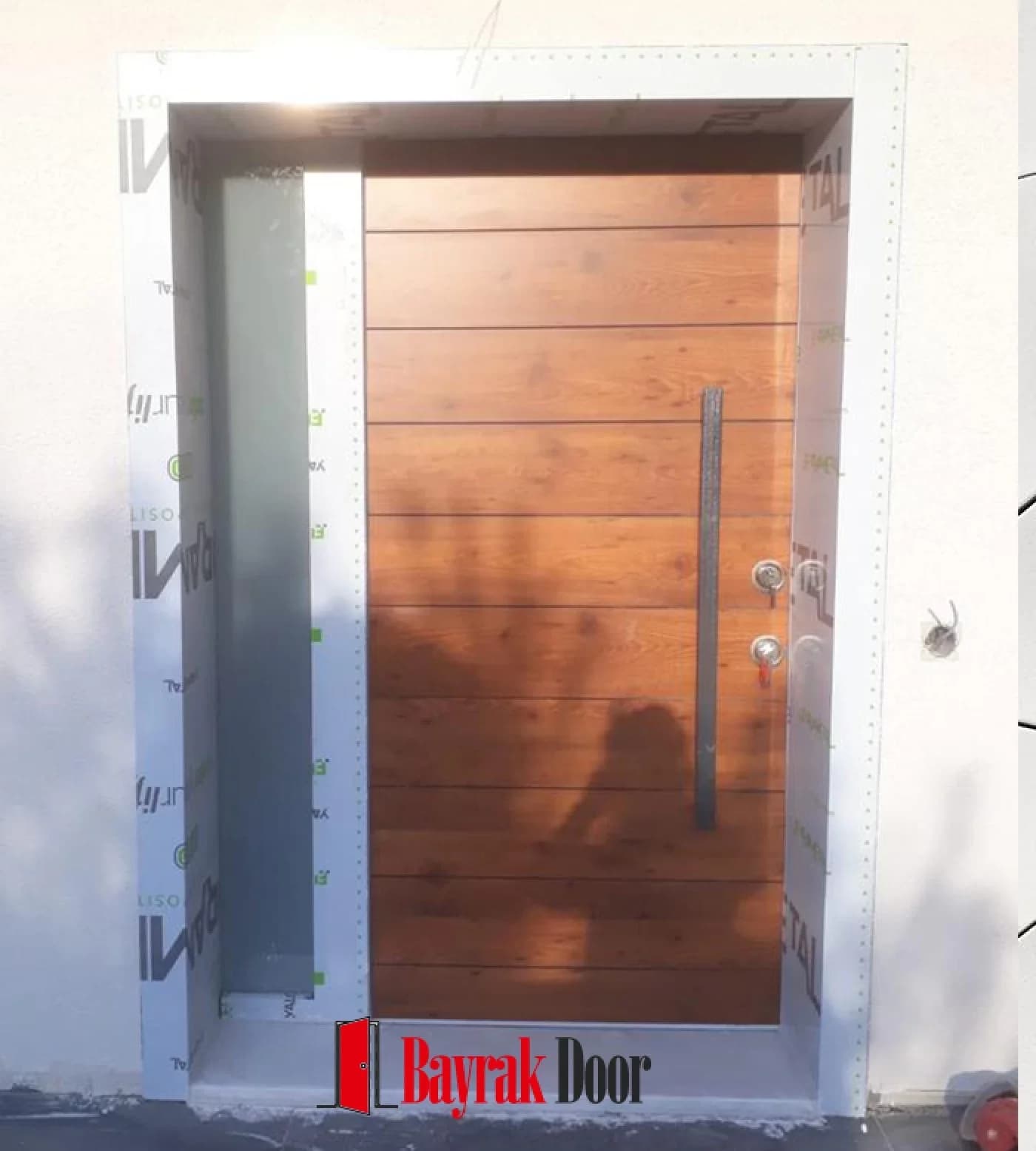

BD-TR102 is a villa steel door model distinguished by its understated russet-orange horizontal-lamella leaf and full-height anthracite handle. It isn't sold in ready-made sizes; your entrance is measured on site and the leaf is manufactured to that measurement. The finish shown in the photo is russet-orange wood cladding.
Product Code: BD-TR102
Leaf Surface
The model is configured as a single leaf. The surface features horizontal lamellas. The color applied is russet-orange wood.
It's finished with a long anthracite vertical handle. The finish shown is the catalog choice — a different cladding can be selected from our cladding options.
The design language is described as modern villa.
Suitable Entrances
Residence apartments and detached houses are the typical settings for this model. The single-leaf layout fits standard door openings directly. The difference between the two types isn't just size — we've detailed it on our villa door vs. building entrance door page.
Measurement, Production and Installation
We take the measurement during the on-site survey — it's based on the door opening, not the existing leaf; the method is explained on our how measurements are taken page. You'll find this model's frame, leaf and lock specifications in the table below; our lock systems and galvanized vs. cold-rolled steel pages detail the options. After delivery, our warranty and service terms apply — see our care and lifespan page for how to protect the finish.
Frequently Asked Questions
How much does BD-TR102 cost?
There's no fixed price — since every leaf is manufactured to measure, the amount depends on size, cladding and lock choice. We send a written, itemized quote after the survey. We've broken down the line items on our steel door prices page.
Can BD-TR102 be made in a different color?
Yes, the color isn't fixed. The catalog shows russet-orange wood, but the cladding is chosen to suit the project; we've written up which finish works best where on our cladding options page.
Do I need to take the measurement myself?
Our survey team measures on site. If you'd still like to understand the process, we've written up the three points we measure on our how measurements are taken page.
How do I get a quote for BD-TR102?
You can fill out the pre-order form on the site, or reach us at 0532 689 21 46. Mentioning the BD-TR102 product code in your request speeds up the process. You can browse other villa steel door models on our villa steel door models page.
Specifications
| Product code | BD-TR102 |
| Category | Villa Steel Door Models |
| Leaf construction | single leaf |
| Color / finish | red-orange wood |
| Surface pattern | horizontal slats |
| Handle | long vertical anthracite handle |
| Design language | modern villa |
| Glass | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
