Horizontal Lines Dark Walnut Wenge Villa Door BD-TR15

Product CodeBD-TR15

A diamond-textured embossed band cuts across the horizontally lined, dark wenge surface. Product code: BD-TR15. Manufactured to custom measurements following an on-site survey.

Leaf construction
single leaf + narrow fixed leaf
Color / finish
dark walnut-wenge
Glass
Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
Handle
horizontal stainless steel pull bar
Design language
modern villa
Upper section
arched pediment
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR15

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

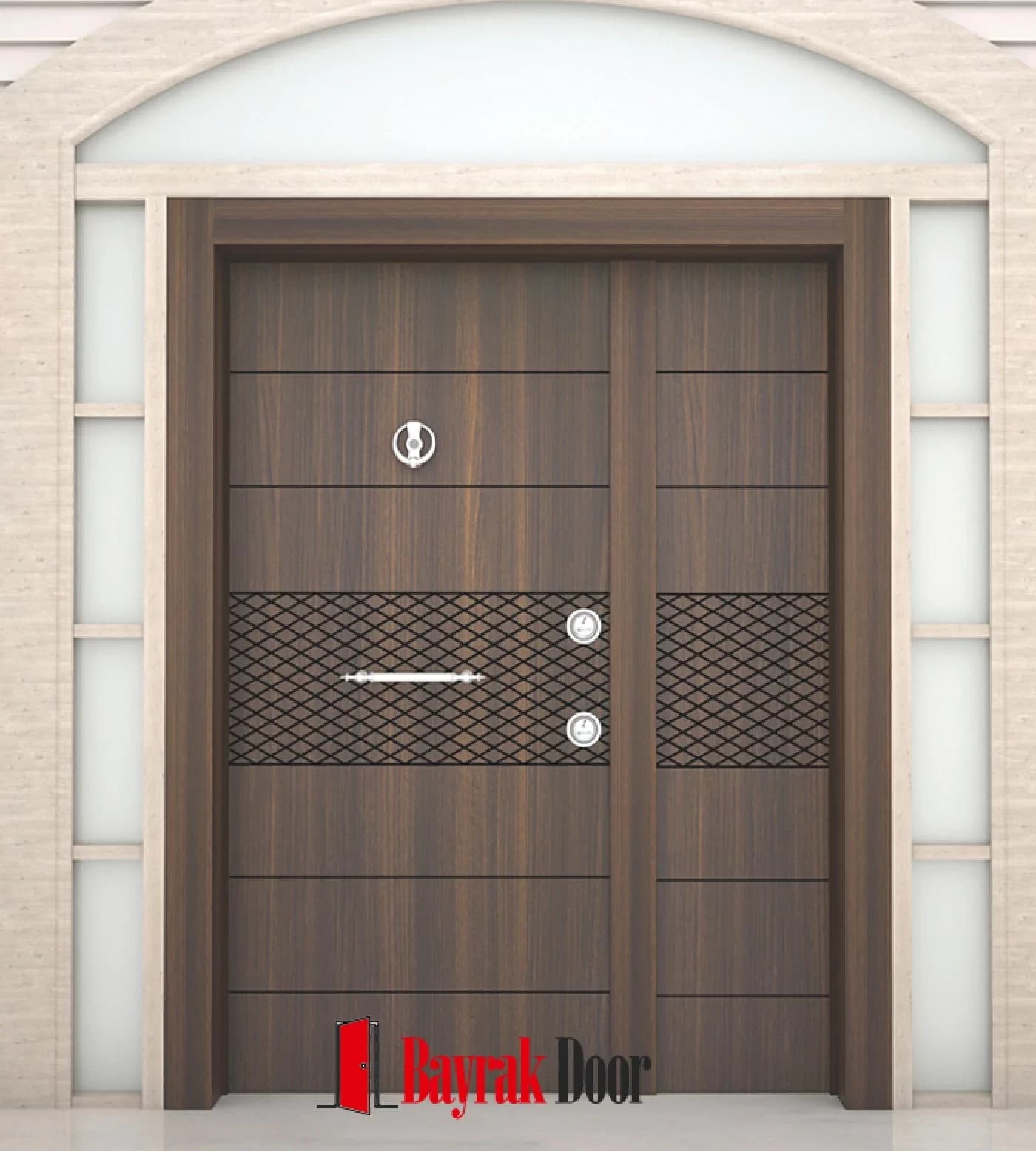

BD-TR15 is a villa steel door model distinguished by a diamond-textured embossed band that cuts across its horizontally lined, dark wenge surface. It is manufactured to custom measurements; whatever the width and height of your entrance, the leaf is built to match.

Product Code: BD-TR15

Surface and Pediment Layout

The leaf configuration is a single leaf plus a narrow fixed side panel. The leaf features horizontal lines with a diamond-textured embossed band across the middle. The finish is a dark walnut-wenge tone.

An arched pediment sits above. It is finished with a horizontal stainless steel handle. The finish shown is the catalog selection — a different finish can be chosen from our finish options.

The design language is best described as modern villa.

Which Entrances Does It Suit?

It is primarily chosen for houses with gardens and residence apartments. It is designed for wide openings: the side panels both accommodate the measurement and bring extra light into the entrance. We compare where villa doors and building entrance doors diverge on our villa door vs. building entrance door page.

From Measurement to Installation

Measurements are taken from the door opening, not the existing leaf; we walk through exactly how on our how to measure page. Frame, sheet-steel thickness, infill, and lock specifications are listed in the specification table below. The choice of sheet steel is compared on our galvanized vs. DKP steel page, and lock alternatives on our lock systems page. After installation, our maintenance and lifespan and warranty and service terms apply.

Frequently Asked Questions

How is the price determined for BD-TR15?

There is no fixed price — since every leaf is manufactured to measurement, the cost depends on the size, the finish, and the lock you choose. We send a written, itemized quote after the survey. We break down the cost items on our steel door prices page.

Can the color of the BD-TR15 door be changed?

Yes. The dark walnut-wenge finish shown is the catalog selection for this model; it can be produced in different colors using compact laminate, composite, water-transfer, or wood-look finish options. We compare the options on our finish options page.

How does the measurement stage work when ordering BD-TR15?

We take the measurement during the survey; there's nothing you need to do. It is taken from the door opening rather than the existing leaf — we explain the method on our how to measure page.

How can I order the BD-TR15 model?

You can fill out the pre-order form on our site or call us at 0532 689 21 46. Mentioning the BD-TR15 product code speeds up the process. You can browse other villa steel door models on our villa steel door models page.

Specifications

Product codeBD-TR15
CategoryVilla Steel Door Models
Leaf constructionsingle leaf + narrow fixed leaf
Color / finishdark walnut-wenge
Surface patternhorizontal lines and central diamond-textured embossed band
Handlehorizontal stainless steel pull bar
Upper sectionarched pediment
Design languagemodern villa
GlassŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
