Horizontal-Slat Honey-Toned Wood Villa Door BD-TR59

Product CodeBD-TR59

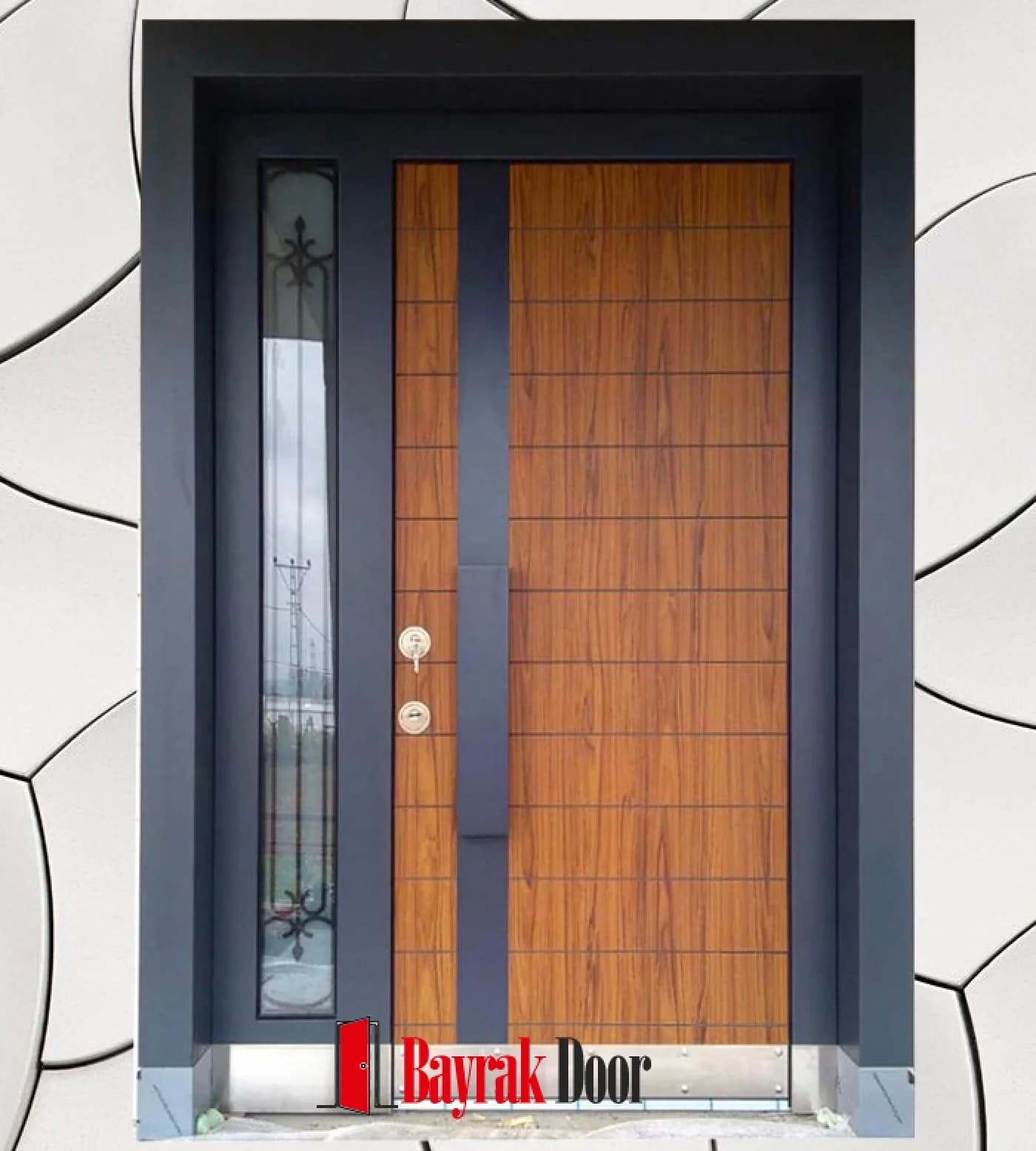

A vertical anthracite band splits a honey-toned slatted leaf, with wrought-iron patterned side glass. Product code: BD-TR59. Custom-built to measure after an on-site survey.

Leaf construction
single leaf + sidelight
Color / finish
honey wood + anthracite frame
Handle
recessed pull bar
Design language
modern villa
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR59

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

BD-TR59 is a villa steel door model distinguished by a vertical anthracite band splitting a honey-toned slatted leaf, with wrought-iron patterned side glass. Like every door we make, this model is built to measure — there's no ready-made leaf held in stock. The catalog finish is a honey-toned wood with an anthracite frame tone.

Product Code: BD-TR59

Surface and Glass Panel

The panel structure is a single leaf with a side glass panel. The panel surface is worked as horizontal slats with a vertical anthracite band. The finish is a honey-toned wood with an anthracite frame tone.

The glass section is a wrought-iron patterned side panel. A concealed handle is used. The finish and hardware aren't fixed; the door can be produced with any of the alternatives on the finish options page.

The design language is best described as modern villa.

Which Entrance Is It Suited For?

It's primarily chosen for houses with gardens and detached houses. It's designed for wide openings: the side sections both meet the size requirement and bring extra light into the entrance. We compare where villa doors and building entrance doors differ on the villa doors vs. building entrance doors page.

From Measurement to Installation

We take the measurement during the survey — it's based on the door opening, not the existing leaf; the method is explained on the how we take the measurement page. You'll find this model's frame, leaf, and lock specifications in the table below; the lock systems and galvanized vs. cold-rolled steel pages go into the options in more detail. After installation, the maintenance and lifespan guidance and warranty and service terms apply.

Frequently Asked Questions

What is the price of the BD-TR59 model?

We can't quote a price before the measurement is taken. The size of the door opening, the finish, the glass, and the lock all directly affect the amount; the survey is free, and we follow it with an itemized quote. See steel door prices for details.

Can I order this model in a color other than honey-toned wood with an anthracite frame?

Yes, the color isn't fixed. The catalog shows honey-toned wood with an anthracite frame, but the finish is chosen to suit each project; on the finish options page we cover which surface works best where.

Can the glass be changed on the BD-TR59 model?

Yes. The glass shown is the catalog's default for this model; as long as Şişecam 5+5 mm laminated glass is used, it can be produced in different colors and patterns. Production without glass is also possible.

How does the measurement stage work when ordering BD-TR59?

Our survey team measures on site. If you'd still like to know how it works, we've explained on the how we take the measurement page which three points we measure.

How can I order the BD-TR59 model?

You can fill out the pre-order form on the site, or call us at 0532 689 21 46. Mentioning the BD-TR59 product code in your request speeds things up. You can browse other models on the villa steel door models page.

Specifications

Product codeBD-TR59
CategoryVilla Steel Door Models
Leaf constructionsingle leaf + sidelight
Color / finishhoney wood + anthracite frame
Surface patternhorizontal slats and vertical anthracite band
Handlerecessed pull bar
Design languagemodern villa
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionsidelight with wrought iron pattern
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
