A honey-toned slatted leaf in a black frame, with a gold-tone vertical handle. Product code: BD-TR65. Custom-built to measure after an on-site survey.
- Leaf construction
- single leaf + double sidelight
- Color / finish
- honey wood + black frame
- Handle
- gold-colored vertical handle
- Design language
- modern villa
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty

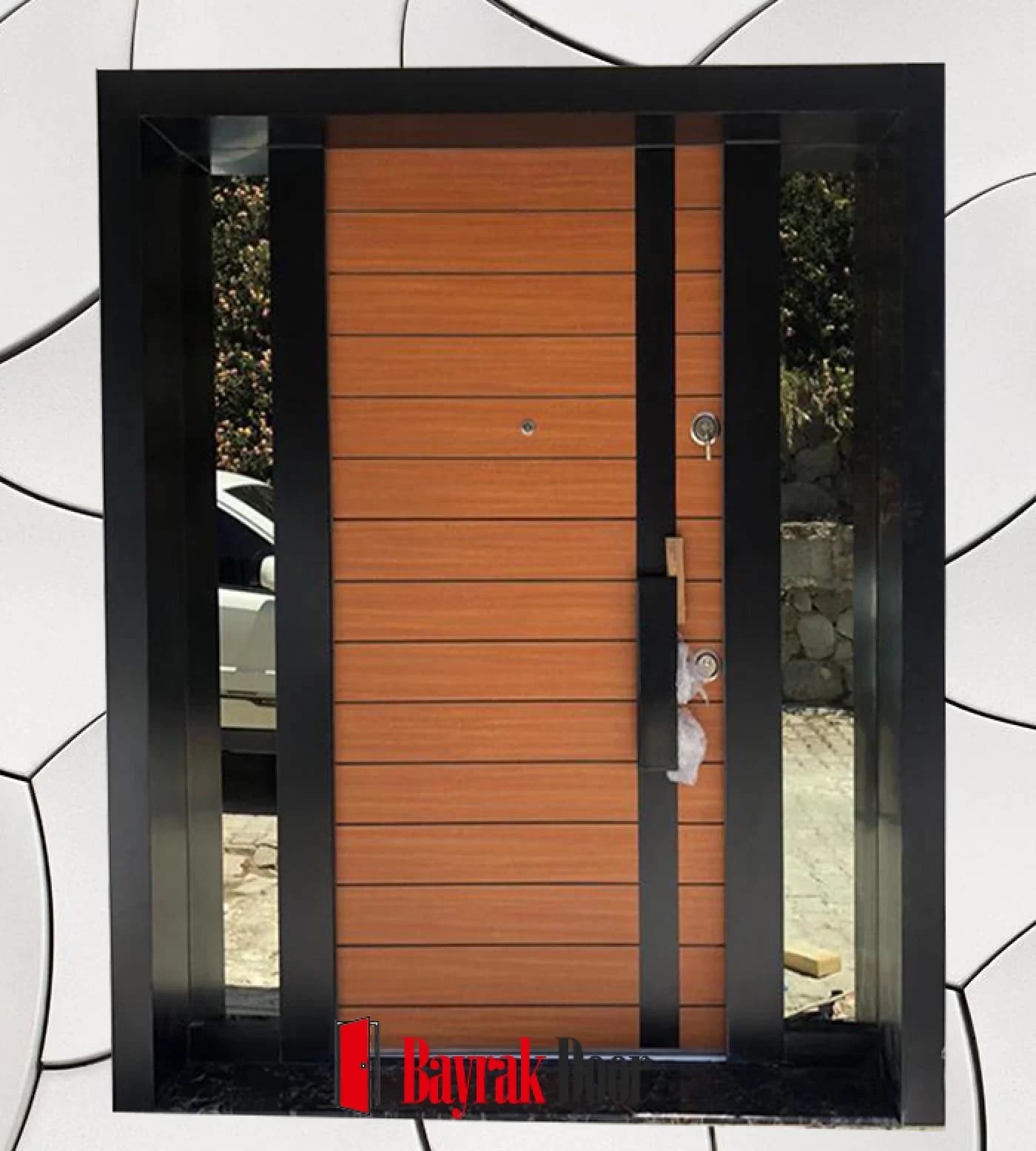

A honey-toned slatted leaf in a black frame, with a gold-tone vertical handle — that's what sets the BD-TR65 villa steel door apart. There's no standard size — the door opening is measured during the survey, and production follows that measurement. The photo shows the honey-toned wood with a black frame finish.
Product Code: BD-TR65
Panel and Glass Layout
The model is configured as a single leaf with double side glass panels. The surface treatment is horizontal slats with black vertical bands. The surface is finished in honey-toned wood with a black frame.
The glass section consists of wide side panels. It is completed with a gold-tone vertical handle. The finish shown is simply the catalog's default — a different finish can be chosen from the finish options.
The design language is best described as modern villa.
Suitable Entrances
It's typically used for residence apartments and detached houses projects. Because the side sections widen the opening, it suits wide-fronted entrances rather than narrow ones — and it lets daylight into the hall as well. The difference between the two door types isn't just size — we go into detail on the villa doors vs. building entrance doors page.
From Measurement to Installation
We take the measurement during the survey — it's based on the door opening, not the existing leaf; the method is explained on the how we take the measurement page. You'll find this model's frame, leaf, and lock specifications in the table below; the lock systems and galvanized vs. cold-rolled steel pages go into the options in more detail. The maintenance steps that extend the door's lifespan are on the maintenance and lifespan page, and the coverage details are on the warranty and service page.
Frequently Asked Questions
How much does BD-TR65 cost?
We can't quote a price before the measurement is taken. The size of the door opening, the finish, the glass, and the lock all directly affect the amount; the survey is free, and we follow it with an itemized quote. See steel door prices for details.
Can BD-TR65 be made in a different color?
It can be. Honey-toned wood with a black frame is simply the finish shown in the photo, not a fixed choice — you can pick from the alternatives on the finish options page.
Can the glass pattern be different?
Yes. The glass shown is the catalog's default for this model; as long as Şişecam 5+5 mm laminated glass is used, it can be produced in different colors and patterns. Production without glass is also possible.
How does the measurement stage work when ordering BD-TR65?
We take the measurement during the site survey — no action is needed from you. It's the door opening that's measured, not the existing leaf; we've explained the method on the how we take the measurement page.
How do I get a quote for BD-TR65?
You can fill out the pre-order form on the site, or call us at 0532 689 21 46. Mentioning the BD-TR65 product code in your request speeds things up. You can browse other models on the villa steel door models page.
Specifications
| Product code | BD-TR65 |
| Category | Villa Steel Door Models |
| Leaf construction | single leaf + double sidelight |
| Color / finish | honey wood + black frame |
| Surface pattern | horizontal slats and black vertical bands |
| Handle | gold-colored vertical handle |
| Design language | modern villa |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | wide sidelights |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
