Horizontal-Slat Orange-Honey Villa Door BD-TR128

Product CodeBD-TR128

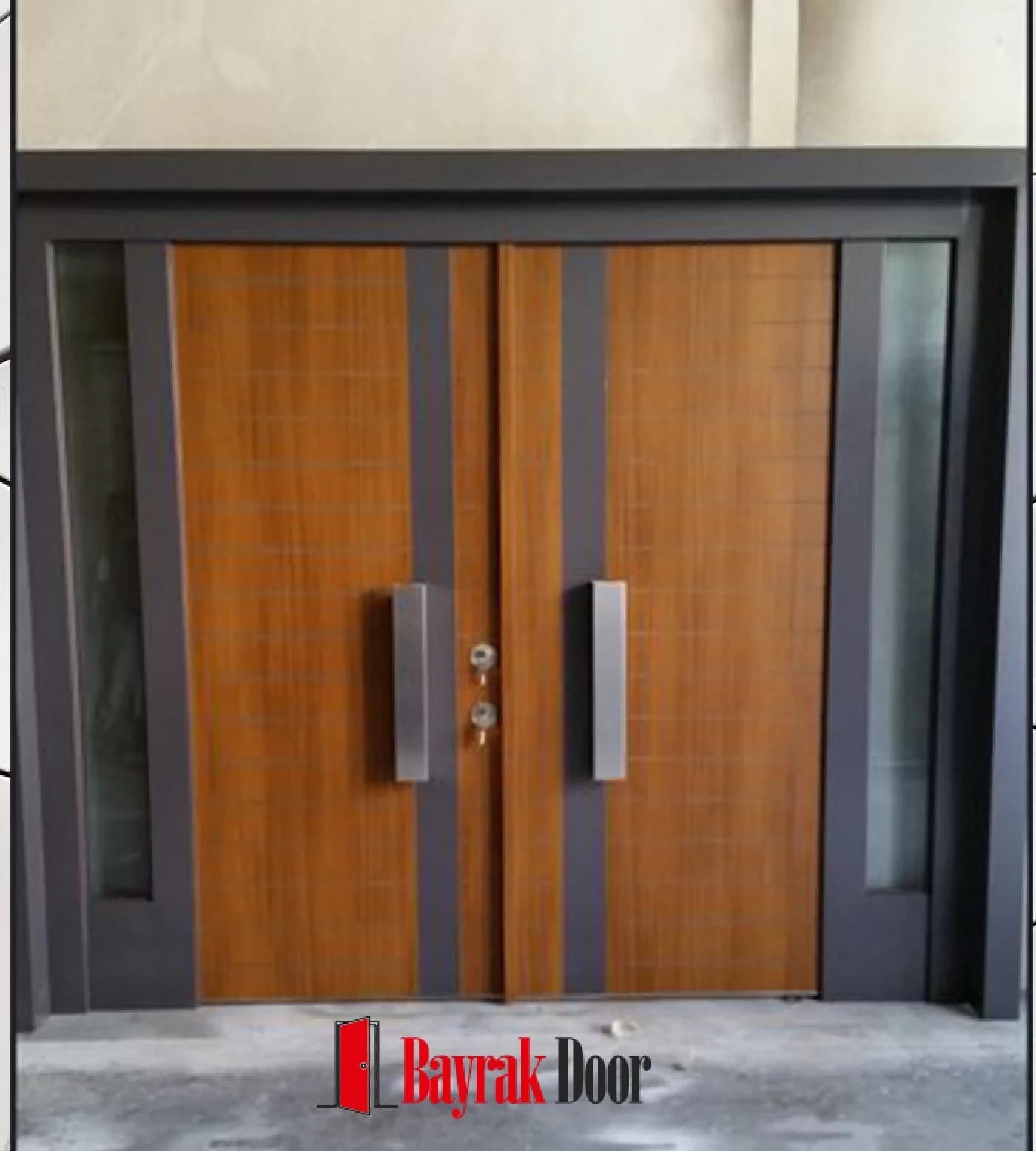

A honey-toned slatted double leaf, anthracite vertical bands, and stainless steel handles. Product code: BD-TR128. Custom-built to measure after an on-site survey.

Leaf construction
double leaf + side glass panels
Color / finish
orange-honey wood + anthracite frame
Handle
two vertical stainless steel handles
Design language
modern villa
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR128

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

The BD-TR128 horizontal-slat orange-honey villa door is built with a honey-toned slatted double leaf, anthracite vertical bands, and stainless steel handles. It's manufactured to measure — whatever the width and height of your entrance, the leaf is built to match. The finish in the photo is orange-honey wood with an anthracite frame cladding.

Product Code: BD-TR128

Glass and Surface Details

The model is configured as a double leaf with side glass panels. The surface has horizontal slats and anthracite vertical bands. The surface is finished in orange-honey wood with an anthracite frame.

The glass section consists of narrow vertical side panels. The model features two vertical stainless steel handles. The finish shown is simply the catalog's default — a different finish can be chosen from the finish options.

The design language is best described as modern villa.

Suitable Entrances

It's primarily chosen for detached houses and houses with gardens. Thanks to the side sections, wide door openings can be covered with a single configuration. The difference between the two door types isn't just size — we go into detail on the villa doors vs. building entrance doors page.

Measurement, Production, and Installation

Production starts with an on-site measurement. How the measurement is taken from the door opening is covered on the how we take the measurement page; material choices are covered on the galvanized vs. cold-rolled steel and lock systems pages. The technical specifications for this model are in the table below. After installation, the maintenance and lifespan guidance and warranty and service terms apply.

Frequently Asked Questions

How much does BD-TR128 cost?

We can't quote a price before the measurement is taken. The size of the door opening, the finish, the glass, and the lock all directly affect the amount; the survey is free, and we follow it with an itemized quote. See steel door prices for details.

Can the color of the BD-TR128 door be changed?

Yes, the color isn't fixed. The catalog shows orange-honey wood with an anthracite frame, but the finish is chosen to suit each project; on the finish options page we cover which surface works best where.

Can the glass pattern be different?

Yes. The glass shown is the catalog's default for this model; as long as Şişecam 5+5 mm laminated glass is used, it can be produced in different colors and patterns. Production without glass is also possible.

Do I need to take the measurement myself?

We take the measurement during the site survey — no action is needed from you. It's the door opening that's measured, not the existing leaf; we've explained the method on the how we take the measurement page.

How do I get a quote for BD-TR128?

You can fill out the pre-order form on the site, or call us at 0532 689 21 46. Mentioning the BD-TR128 product code in your request speeds things up. You can browse other models on the villa steel door models page.

Specifications

Product codeBD-TR128
CategoryVilla Steel Door Models
Leaf constructiondouble leaf + side glass panels
Color / finishorange-honey wood + anthracite frame
Surface patternhorizontal slats and anthracite vertical bands
Handletwo vertical stainless steel handles
Design languagemodern villa
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionnarrow vertical side glass panels
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
