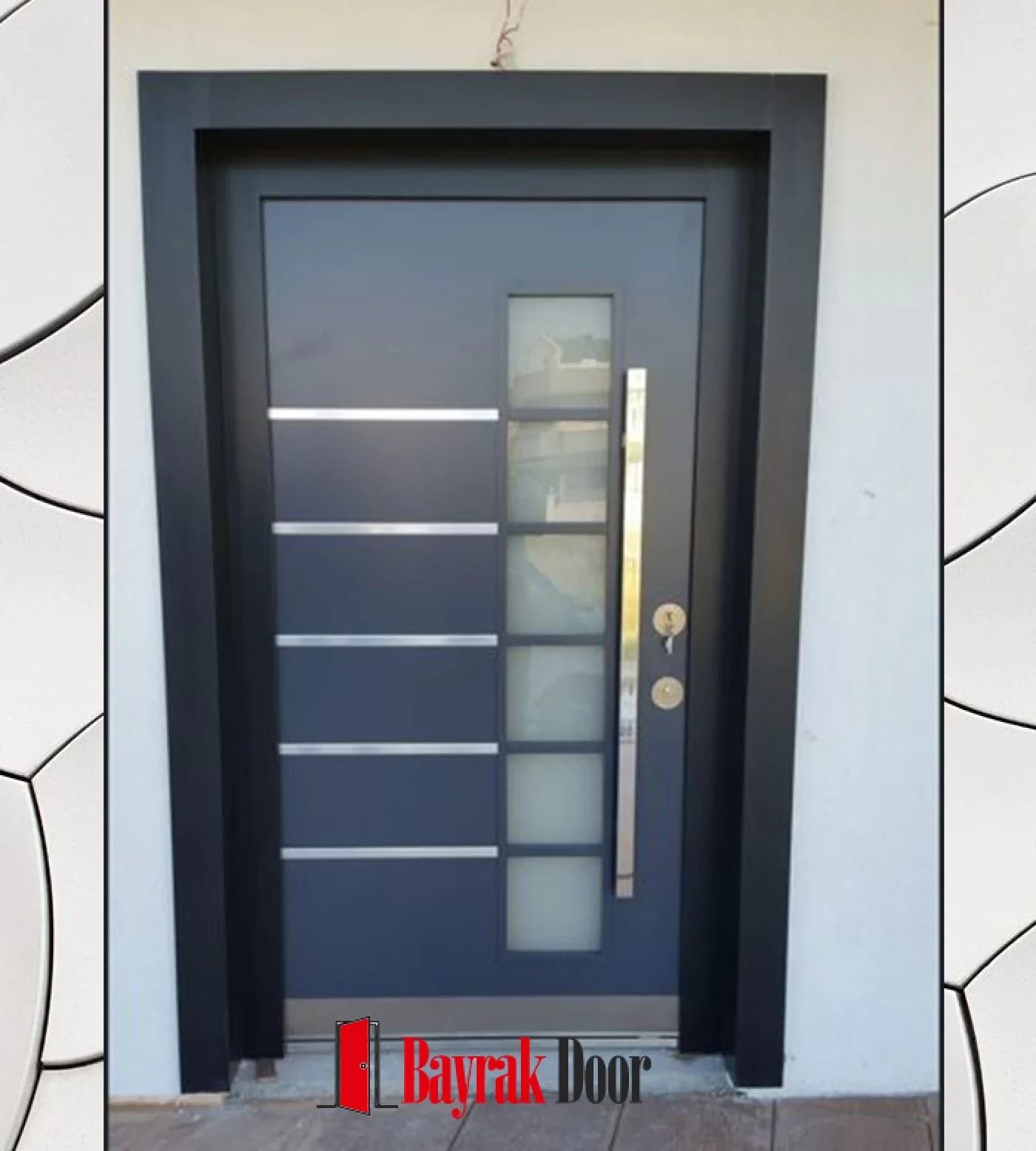

Horizontal Stainless Anthracite Grey Villa Door BD-TR129

Product CodeBD-TR129

Horizontal stainless lines on an anthracite body, frosted square glass panels and a gold handle. Product code: BD-TR129. Manufactured to measure, following an on-site survey.

Leaf construction
single leaf + narrow sidelight
Color / finish
anthracite grey
Handle
long vertical gold handle
Design language
modern villa
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR129

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

Horizontal stainless lines, frosted square glass panels and a gold handle on an anthracite body — that's what sets the BD-TR129 villa steel door model apart. Production begins once the order is placed: an on-site survey comes first, and the leaf is then manufactured to fit that door opening.

Product Code: BD-TR129

Surface and Glass Panels

The leaf structure is a single leaf with a narrow side glass panel. The leaf shows horizontal stainless lines. The finish is an anthracite grey tone.

The glazing is resolved as frosted, square-divided glass. A long, gold-toned vertical handle is used. Cladding and hardware aren't fixed; it can be produced with the alternatives on our cladding options page.

The design language is described as modern villa.

Which Entrances Suit It?

It's most often used in house-with-garden and residence-apartment projects. It's designed for wide openings: the side sections both fill the required span and bring light into the entrance. We've compared where a villa door and a building entrance door part ways on our villa door vs. building entrance door page.

From Measurement to Installation

We take the measurement during the on-site survey — it's based on the door opening, not the existing leaf; the method is explained on our how measurements are taken page. You'll find this model's frame, leaf and lock specifications in the table below; our lock systems and galvanized vs. cold-rolled steel pages detail the options. After delivery, our warranty and service terms apply — see our care and lifespan page for how to protect the finish.

Frequently Asked Questions

How is the price determined for BD-TR129?

We don't publish a list price, because the door is built to measure. The amount is set by the size of the door opening plus the cladding, glass and lock you choose. After a free survey, we provide a written, itemized quote; we've explained what affects the price on our steel door prices page.

Can BD-TR129 be made in a different color?

Yes. The anthracite grey finish shown is this model's catalog choice; it can be produced in other colors using compact laminate, composite, water-transfer or wood-effect cladding. We've compared the options on our cladding options page.

Can the glass be changed on the BD-TR129 model?

Yes. The glass shown is this model's catalog finish; it can be produced in a different color and pattern as long as Şişecam 5+5 mm laminated glass is used. A version without glass is also possible.

How does the measuring stage work when ordering BD-TR129?

Our survey team measures on site. If you'd still like to understand the process, we've written up the three points we measure on our how measurements are taken page.

How can I order the BD-TR129 model?

You can fill out the pre-order form on the site, or reach us at 0532 689 21 46. Mentioning the BD-TR129 product code in your request speeds up the process. You can browse other villa steel door models on our villa steel door models page.

Specifications

Product codeBD-TR129
CategoryVilla Steel Door Models
Leaf constructionsingle leaf + narrow sidelight
Color / finishanthracite grey
Surface patternhorizontal stainless steel lines
Handlelong vertical gold handle
Design languagemodern villa
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionfrosted glass with square divisions
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
