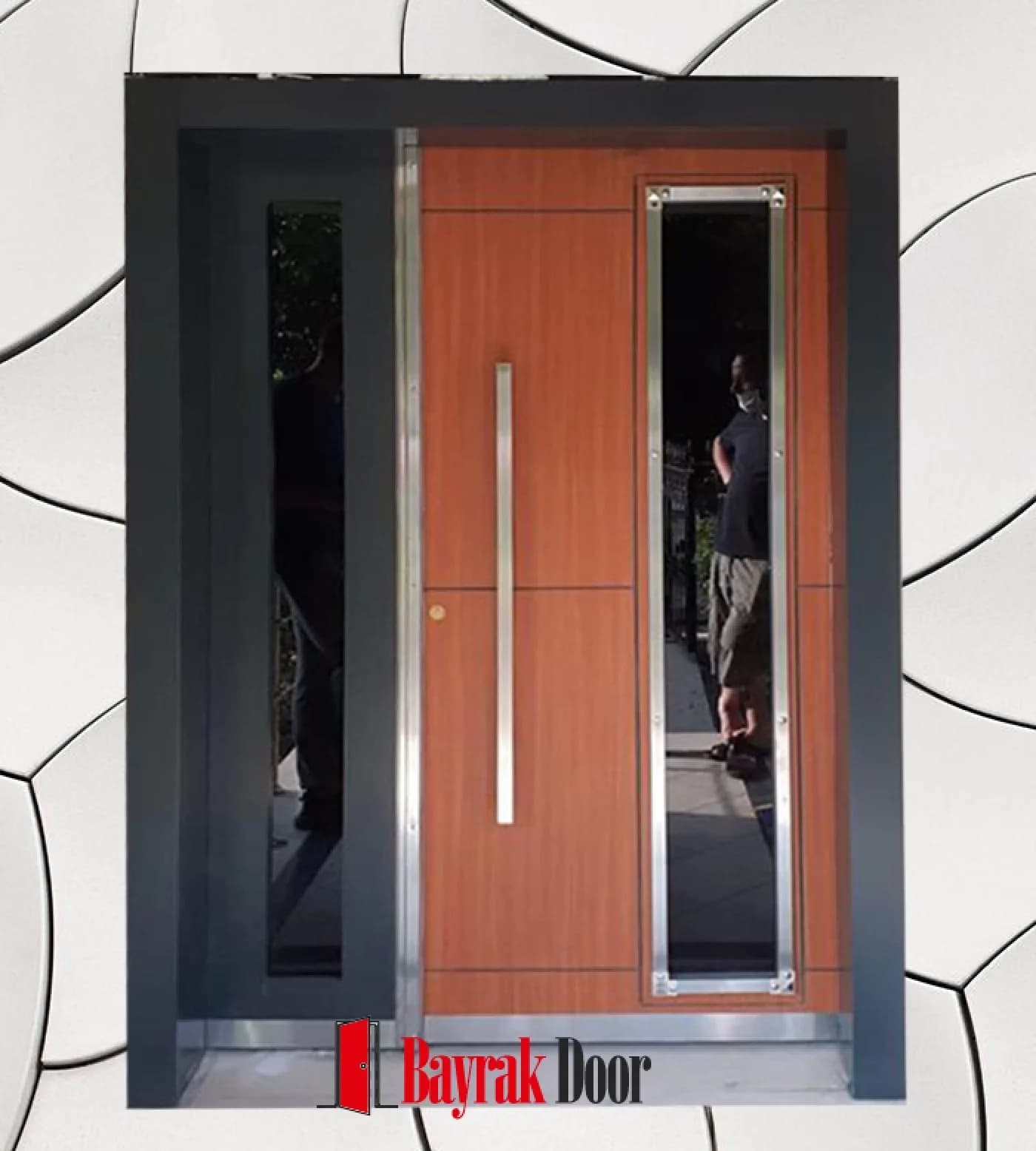

A plain red wood leaf with slim vertical stainless steel-framed glass. Product code: BD-TR67. Made to measure after an on-site survey.
- Leaf construction
- single leaf + double sidelight
- Color / finish
- red wood + anthracite frame
- Handle
- long vertical stainless steel handle
- Design language
- modern villa
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
This villa steel door model carries the code BD-TR67: a plain red wood leaf with slim vertical stainless steel-framed glass. Every door is made to measure; whatever the width and height of your entrance, the leaf is built to fit it. The finish photographed is red wood with an anthracite frame.
Product Code: BD-TR67
Surface and Glass Sections
Produced as a single leaf with twin side glass. The surface carries a flat face. The color applied is red wood with an anthracite frame.
The model features slim vertical stainless steel-framed glass. A long vertical stainless steel handle is used. Finish and hardware are not fixed; the door can be produced with any of the alternatives on the surface finish options page.
The design language is defined as modern villa.
Where Is It Used?
Detached homes and residence apartments are this model's typical settings. Thanks to the side sections, wide door openings are closed with a single assembly. The difference between these two types isn't just size; we've detailed it on the difference between a villa door and a building entrance door page.
Production and Installation Process
Measurements are taken from the door opening, not the existing leaf; the how measurements are taken page walks through it step by step. Frame, sheet thickness, infill and lock specifications are listed in the table below. Sheet steel choices are compared on the galvanized or DKP sheet steel page, and lock alternatives on the lock systems page. After installation, our care and lifespan guidance and warranty and service terms apply.
Frequently Asked Questions
How is the price of the BD-TR67 determined?
We don't publish list prices, because every door is made to measure. The amount is determined by the size of the door opening and the finish, glass and lock you choose. After a free on-site survey we provide a written, fully itemized quote; the steel door prices page explains what moves the price.
Can I order this model in a color other than red wood with an anthracite frame?
Yes — the color isn't fixed. The catalog shows red wood with an anthracite frame, but the finish is chosen per project; on the surface finish options page we cover which surface works best where.
Can the glass pattern be different?
Yes. The glass pictured is this model's catalog finish; provided Şişecam 5+5 mm laminated glass is used, it can be produced in different colors and patterns. A glassless version is also possible.
How is the BD-TR67 measured?
We take the measurements during the survey; nothing is needed from you. Measurements come from the door opening, not the existing leaf — the method is explained on the how measurements are taken page.
How do I get a quote for the BD-TR67?
You can fill out the pre-order form on our site or reach us at 0532 689 21 46. Mentioning product code BD-TR67 in your request speeds things up. You can browse our other villa steel door models on the villa steel door models page.
Specifications
| Product code | BD-TR67 |
| Category | Villa Steel Door Models |
| Leaf construction | single leaf + double sidelight |
| Color / finish | red wood + anthracite frame |
| Surface pattern | flat surface |
| Handle | long vertical stainless steel handle |
| Design language | modern villa |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | narrow vertical glass with stainless steel frames |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
