Paneled Cobalt Blue Villa Door BD-TR30

Product CodeBD-TR30

Cobalt blue classic paneling with an antique gold knocker and handle set. Product code: BD-TR30. Made to measure after an on-site survey.

Leaf construction
single leaf
Color / finish
cobalt blue
Glass
Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
Handle
antique gold knocker and handle
Design language
classic villa
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR30

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

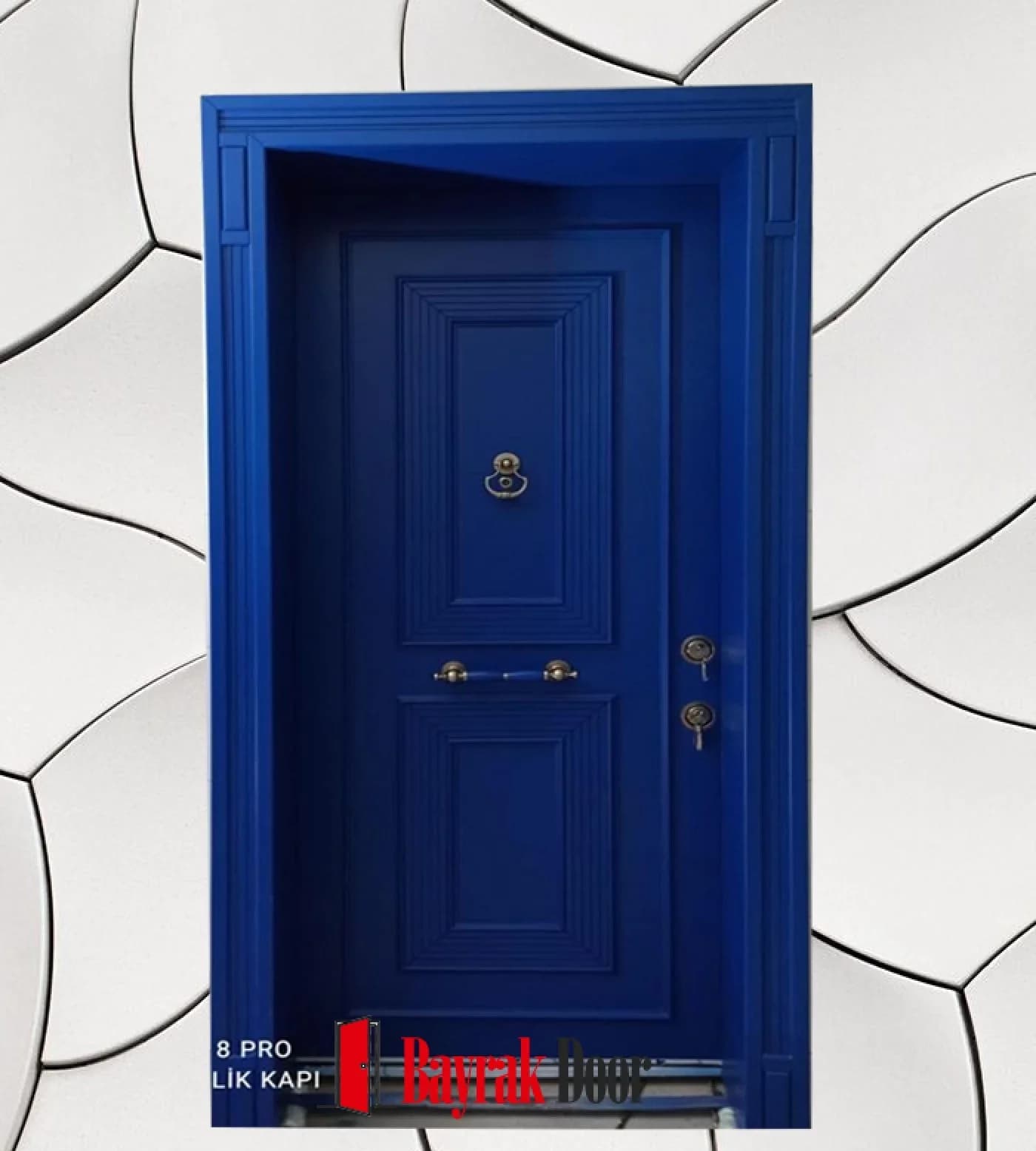

Cobalt blue classic paneling with an antique gold knocker and handle set — that is what sets the villa steel door BD-TR30 apart. Production begins after you order: first comes an on-site survey, then the leaf is manufactured to fit the door opening. The finish in the photo is cobalt blue cladding.

Product code: BD-TR30

Craftsmanship on the Leaf

It is produced as a single leaf. The face carries classic panel work, finished in cobalt blue.

The hardware is an antique gold knocker and handle. The finish shown is the catalog choice — a different cladding can be selected from the cladding options.

The design language is classic villa.

Where Is It Used?

It is typically used on residence apartments and houses with gardens. The single-leaf layout adapts directly to standard door openings. The difference between these two door types isn't just size; we go into detail on the villa door vs. building entrance door page.

From Measurement to Installation

Production starts with measurements taken on site. How the door opening is measured is explained on the how measurements are taken page; material choices are covered on the galvanized or DKP sheet steel and lock systems pages. This model's technical specifications are in the table below. The maintenance steps that extend the door's life are on the care and lifespan page, and what's covered is on the warranty and service page.

Frequently Asked Questions

How much is BD-TR30?

We can't quote a price without measuring. The size of the door opening and your choice of cladding, glass, and lock directly affect the total; the site survey is free, followed by an itemized quote. See steel door prices for details.

Can BD-TR30 be produced in a different color?

Yes, the color isn't fixed. It appears in cobalt blue in the catalog, but the cladding is decided per project; on the cladding options page we've written up which surface works best where.

How does the measuring stage work when ordering BD-TR30?

Our survey team measures on site. Still, if you'd like to know the process, the how measurements are taken page explains the three points we measure from.

How do I get a quote for BD-TR30?

You can fill in the pre-order form on our site or reach us on 0532 689 21 46. Mentioning the product code BD-TR30 in your request speeds things up. You can browse other villa steel door models on the villa steel door models page.

Specifications

Product codeBD-TR30
CategoryVilla Steel Door Models
Leaf constructionsingle leaf
Color / finishcobalt blue
Surface patternclassic panel
Handleantique gold knocker and handle
Design languageclassic villa
GlassŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
