Paneled White Villa Door BD-TR68

Product CodeBD-TR68

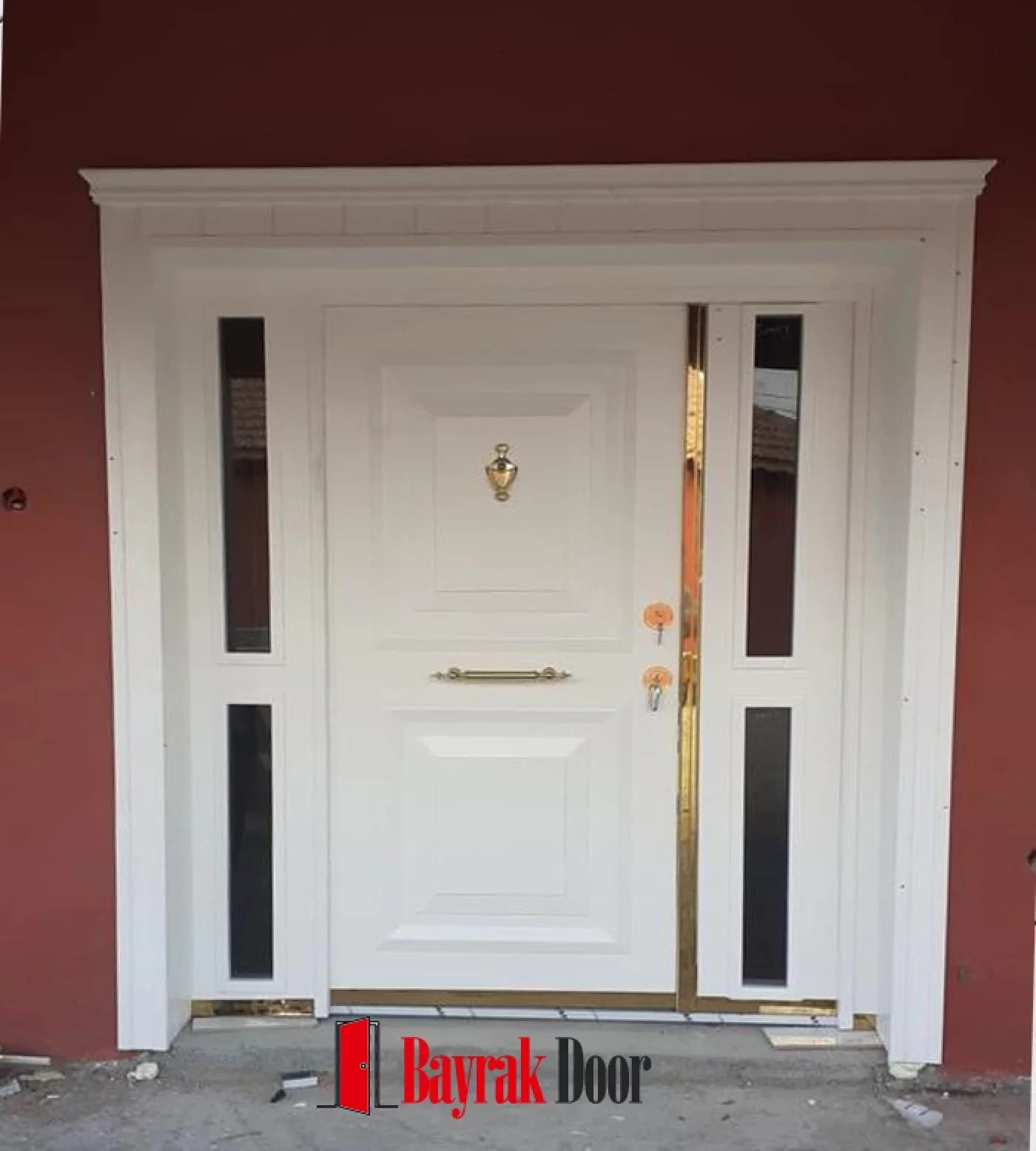

White paneled leaf with gold trims and black vertical glass strips. Product code: BD-TR68. Made to measure after an on-site survey.

Leaf construction
single leaf + double sidelight
Color / finish
white
Handle
gold knocker and gold handle
Design language
classic-modern villa
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeBD-TR68

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

This villa steel door model carries the code BD-TR68: a white paneled leaf with gold trims and black vertical glass strips. Production begins after your order: first we carry out a site survey, then the leaf is manufactured to the door opening.

Product Code: BD-TR68

Leaf and Glass Layout

The leaf structure is a single leaf with two side windows. The leaf carries panels and gold trims. The finish is white.

The model features black vertical glass strips. It is completed with a gold knocker and gold handle. The cladding and hardware are not fixed; the door can be produced with any of the alternatives on the cladding options page.

The design language is defined as classic-modern villa.

Which Entrances Does It Suit?

Homes with gardens and residence apartments are this model's typical settings. It is designed for wide openings: the side sections both cover the dimensions and brighten the entrance. We compare where villa doors and building entrance doors differ on the villa door vs. building entrance door page.

From Measurement to Installation

Production starts with measurements taken on site. How the door opening is measured is covered on the how measurements are taken page; material choices are on the galvanized or DKP sheet steel and lock systems pages. This model's technical values are in the table below. After delivery, warranty and service coverage takes effect; see the care and lifespan page for protecting the surface.

Frequently Asked Questions

How much does the BD-TR68 model cost?

There is no fixed price — since every leaf is manufactured to measure, the cost depends on the dimensions, cladding and lock choice. After the survey we send a written, itemized quote. We break the items down on the steel door prices page.

Can the BD-TR68 be produced in a different color?

It can. White is simply the finish in the photo, not a fixed choice — you can pick from the alternatives on the cladding options page.

Can the glass in the BD-TR68 be changed?

Yes. The glass in the image is this model's catalogue finish; it can be produced in different colors and patterns, provided Şişecam 5+5 mm laminated glass is used. The door can also be made without glass.

Do I need to take the measurements myself?

We take the measurements during the site survey; nothing is required from you. Measurements come from the door opening, not the existing leaf — we describe the method on the how measurements are taken page.

How can I order the BD-TR68 model?

You can fill in the pre-order form on our site or call us on 0532 689 21 46. Mentioning product code BD-TR68 in your request speeds things up. You can browse other villa steel door models on the villa steel door models page.

Specifications

Product codeBD-TR68
CategoryVilla Steel Door Models
Leaf constructionsingle leaf + double sidelight
Color / finishwhite
Surface patternpanel with gold trim strips
Handlegold knocker and gold handle
Design languageclassic-modern villa
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionblack vertical glass strips
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
