Wide Panel Dark Walnut Building Entrance Door TR534

Product CodeTR534

Dark walnut leaf with wide raised panels, flanked by slim wrought-iron-detailed glass. Product code: TR534. Made to measure after a free on-site survey.

Leaf construction
single wide leaf + narrow sidelight
Color / finish
dark walnut
Handle
classic horizontal handle
Design language
classic
Upper section
glazed transom window
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeTR534

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

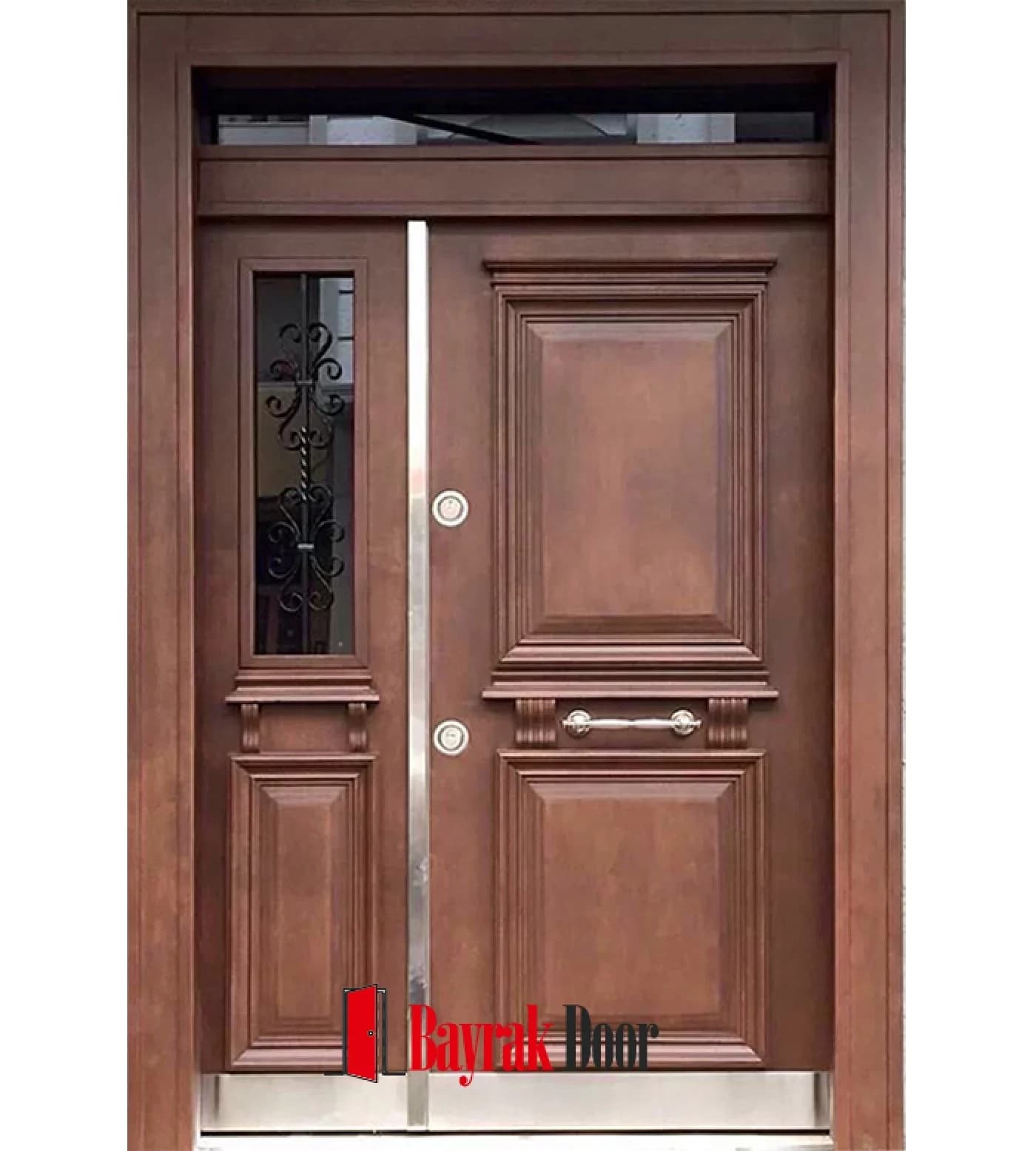

This building entrance door model carries the code TR534: a dark walnut leaf with wide raised panels, flanked by a slim panel of wrought-iron-detailed glass. There is no standard size — the door opening is measured during the survey and production follows that measurement. The photo shows the dark walnut finish.

Product Code: TR534

Glass, Top Section and Surface

The model is configured as one wide leaf plus a narrow side glass panel. The surface is worked as wide embossed panels. The color applied is dark walnut.

The glazing takes the form of a narrow side panel with wrought iron detailing. Above sits a glazed transom window. A classic horizontal handle is fitted. The finish shown is the catalog choice — a different cladding can be selected from the cladding options.

Its design language is best described as classic.

Suitable Entrances

Housing developments and commercial building entrances are this model's typical settings. Thanks to the side sections, wide door openings are closed with a single assembly. The difference between the two door types is not just a matter of size; we go into detail on the villa door vs. building entrance door page.

Production and Installation Process

Measurements are taken from the door opening, not the existing leaf; the how measurements are taken page walks through it step by step. Frame, sheet thickness, infill and lock values are listed in the specification table below. Sheet choice is compared on the galvanized or DKP sheet page, and lock alternatives on the lock systems page. After delivery, warranty and service coverage applies; see the care and lifespan page for keeping the surface in shape.

Frequently Asked Questions

What does model TR534 cost?

We don't publish list prices, because every door is made to measure. The total is set by the size of the door opening and the cladding, glass and lock you choose. After a free on-site survey we provide a written, fully itemized quote; the steel door prices page explains what moves the price.

Can the TR534 be produced in a different color?

Yes. The dark walnut finish in the photo is this model's catalog choice; it can be produced in other colors with compact laminate, composite, marine plywood and wood cladding options. We compare them on the cladding options page.

Can the glass pattern be different?

Yes. The glass shown is this model's catalog finish; provided Şişecam 5+5 mm laminated glass is used, it can be produced in a different color and pattern. It can also be made without glass.

How is the TR534 measured?

Our survey team measures on site. If you'd still like to know the process, the how measurements are taken page explains the three points we measure.

How do I get a quote for the TR534?

You can fill in the pre-order form on our site or reach us on 0532 689 21 46. Mentioning product code TR534 in your request speeds things up. You can browse other building entrance door models on the building entrance door models page.

Specifications

Product codeTR534
CategoryBuilding Entrance Steel Door Models
Leaf constructionsingle wide leaf + narrow sidelight
Color / finishdark walnut
Surface patternwide embossed panel
Handleclassic horizontal handle
Upper sectionglazed transom window
Design languageclassic
Push-to-open systemself-closing system within 6 seconds
Door closersize 5 door closer
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionnarrow side glass with wrought iron detailing
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
