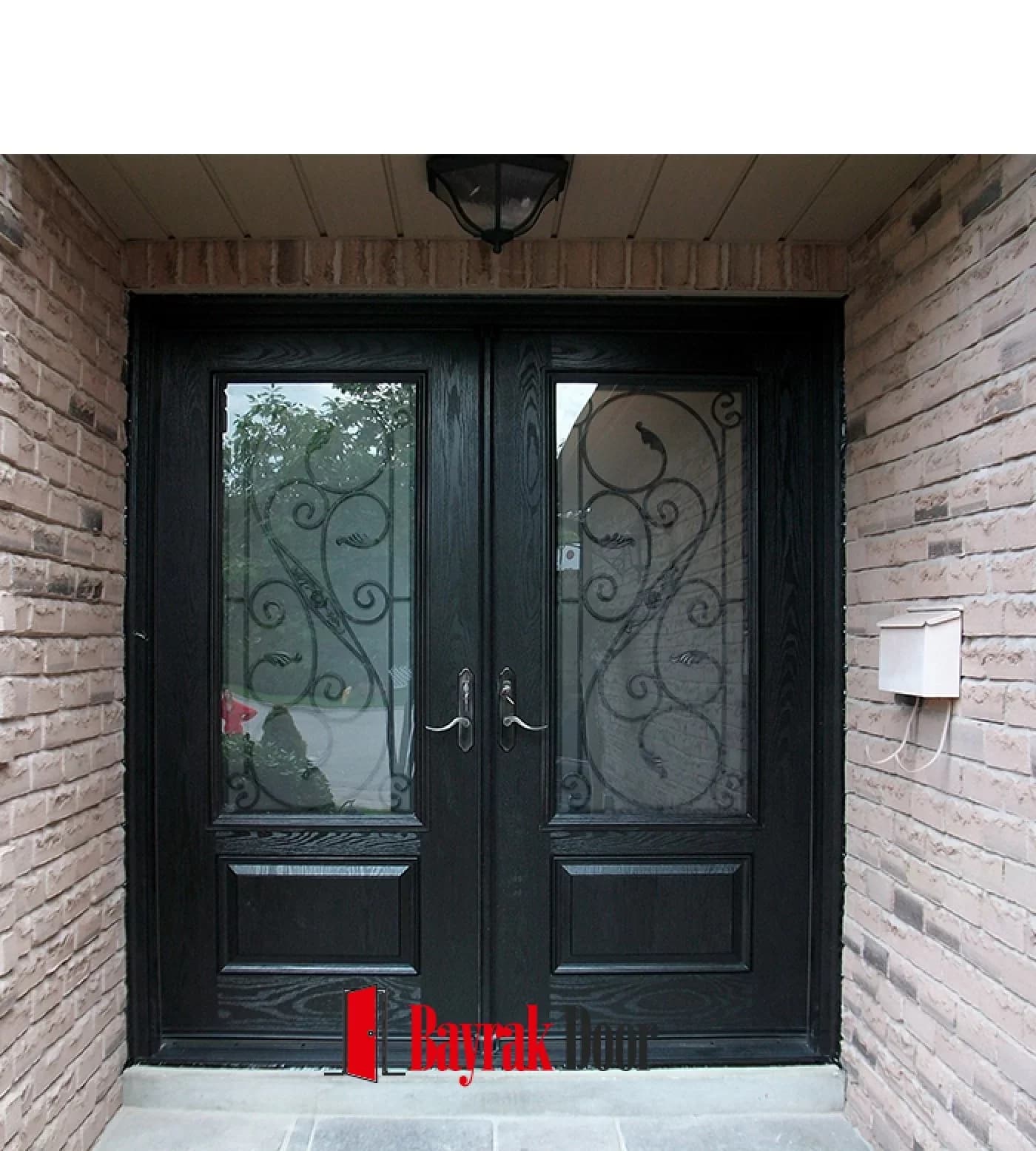

Classic Panel Matte Black Building Entrance Door TR519

Product CodeTR519

Matte black classic paneled body with fine wrought iron-worked glazing above. Product code: TR519. Made to measure after an on-site survey.

Leaf construction
double leaf
Color / finish
matte black
Handle
classic lever handle
Design language
classic
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeTR519

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

A matte black classic paneled body with fine wrought iron-worked glazing above — that is what sets the building entrance door TR519 apart. It is not sold in standard sizes; your entrance is measured on site and the leaf is manufactured to fit. The catalog finish is a matte black tone.

Product code: TR519

Glass and Surface Details

The leaf layout is a double leaf. The lower part of the leaves carries classic panel work. The catalog color is a matte black tone.

The glazing is arranged as wrought iron-patterned panes across the top. The door is finished with classic pull handles. The finish shown is the catalog choice — a different cladding can be selected from the cladding options.

The design language is classic.

Who Is This Model For?

It is typically used at apartment building entrances and on housing-complex blocks. Since the side sections widen the opening, it suits wide-fronted entrances rather than narrow ones — and brings daylight into the hallway. We compare where a villa door and a building entrance door part ways on the villa door vs. building entrance door page.

Measurement, Production, and Installation

We take the measurements during the site survey — based on the door opening, not the existing leaf; the method is explained on the how measurements are taken page. You'll find this model's frame, leaf, and lock specifications in the table below; the lock systems and galvanized or DKP sheet steel pages cover the options in detail. After delivery, warranty and service coverage takes effect; see the care and lifespan page for keeping the surface in good shape.

Frequently Asked Questions

How much is TR519?

We can't quote a price without measuring. The size of the door opening and your choice of cladding, glass, and lock directly affect the total; the site survey is free, followed by an itemized quote. See steel door prices for details.

Can I have this model in a color other than matte black?

Yes. The matte black finish shown is this model's catalog choice; it can be produced in other colors with compact laminate, composite, marine plywood, and wood veneer options. We compare them on the cladding options page.

Can the glass on the TR519 model be changed?

Yes. The glass shown is this model's catalog finish; it can be produced in a different color and pattern, provided Şişecam 5+5 mm laminated glass is used. The door can also be made without glass.

Do I need to take the measurements myself?

Measuring is our job. We measure the clear width of the door opening, the height from the finished floor, and the wall thickness; the details are on the how measurements are taken page.

How do I order the TR519 model?

You can fill in the pre-order form on our site or reach us on 0532 689 21 46. Mentioning the product code TR519 in your request speeds things up. You can browse other building entrance door models on the building entrance door models page.

Specifications

Product codeTR519
CategoryBuilding Entrance Steel Door Models
Leaf constructiondouble leaf
Color / finishmatte black
Surface patternclassic panel (cassette panel) at the bottom
Handleclassic lever handle
Design languageclassic
Push-to-open systemself-closing system within 6 seconds
Door closersize 5 door closer
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionwrought iron patterned glass at top
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
