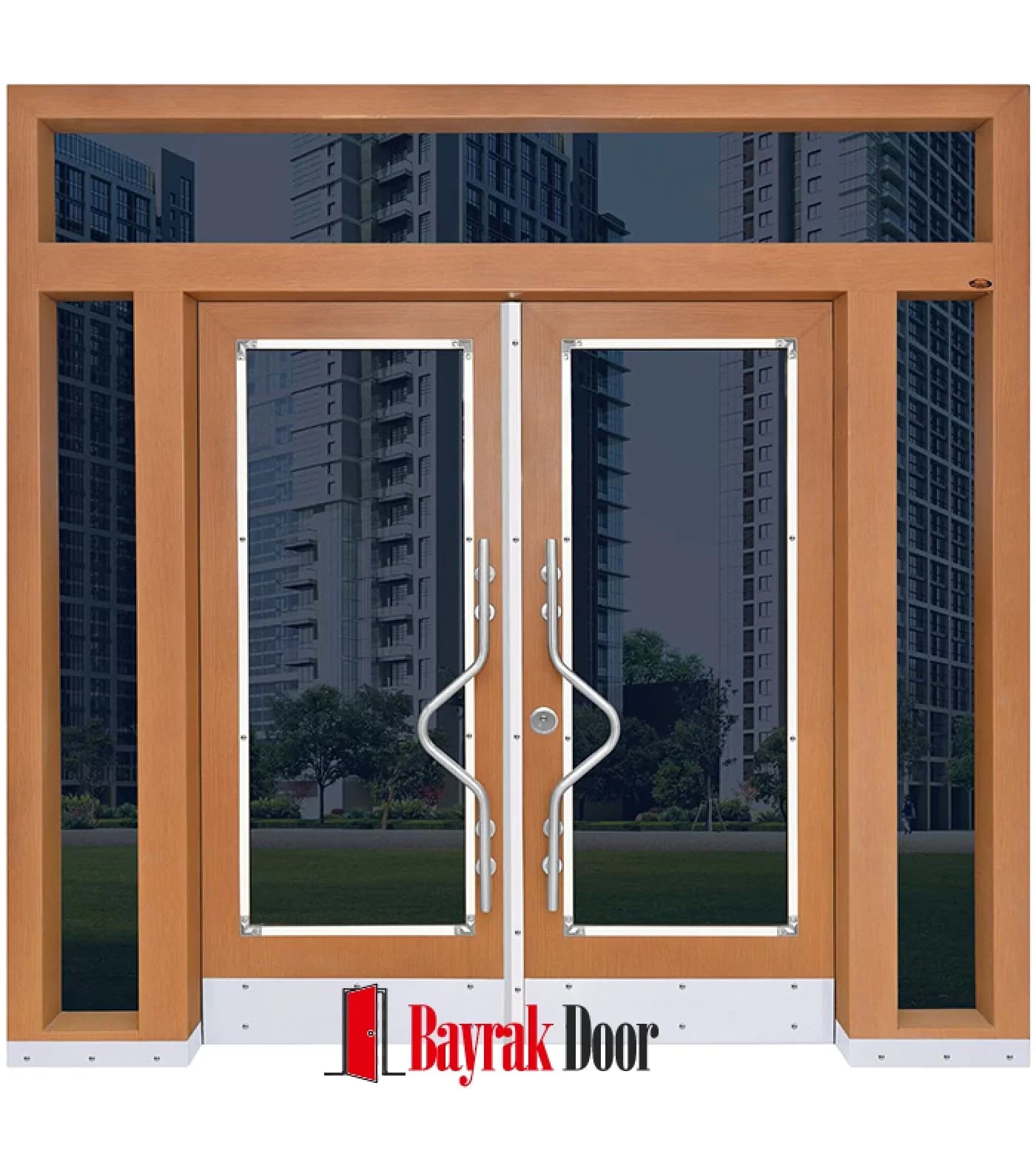

Honey-toned entrance with wide glazing, side lights and a full-width transom window above. Product code: TR530. Made to measure after an on-site survey.
- Leaf construction
- double leaf + side glass + transom window
- Color / finish
- honey-toned wood
- Handle
- curved stainless steel handle
- Design language
- modern
- Upper section
- glazed transom window
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
TR530 is a building entrance door model distinguished by its honey-toned entrance with wide glazing, side lights and a full-width transom window above. Like every door we make, this model is produced to measure — no leaves are supplied from stock. The image shows the honey wood finish.
Product Code: TR530
Glazing, Top Section and Surface
The model is configured as a double leaf with side glass and a transom window. The surface detailing is a plain frame. The color applied is honey wood.
The glazing is resolved as wide clear panes. Above the leaf sits a glazed transom window. A curved stainless steel handle was chosen for this model. Cladding and hardware are not fixed; the door can be produced with any of the alternatives on our cladding options page.
Where Is It Used?
It is generally used in housing developments and apartment building entrances. It is designed for wide openings: the side sections both take up the extra width and bring light into the entrance. The difference between these two door types is not just size; we detail it on our villa door vs. building entrance door page.
Measurement, Production and Installation
Production starts with measurements taken on site. How the opening is measured is covered on our how to measure page; material choices on the galvanized or DKP sheet steel and lock systems pages. The technical values for this model are in the table below. After installation, the care and lifespan and warranty and service terms apply.
Frequently Asked Questions
How is the price of the TR530 determined?
There is no fixed price — since every leaf is made to measure, the total depends on the dimensions, the cladding and the lock you choose. After the survey we send a written, itemized quote. We break down the cost items on our steel door prices page.
Can the color of the TR530 be changed?
Yes — the color is not fixed. The catalog shows honey wood, but the cladding is decided per project; on our cladding options page we cover which surface works best where.
Can the glass pattern be different?
Yes. The glass shown is this model's catalog finish; it can be produced in different colors and patterns, provided Şişecam 5+5 mm laminated glass is used. A glassless version is also possible.
Do I need to take the measurements myself?
We take the measurements during the survey; nothing is required from you. Measurements come from the door opening, not the existing leaf — the method is described on our how to measure page.
How do I get a quote for the TR530?
You can fill out the pre-order form on our site or reach us at 0532 689 21 46. Mentioning product code TR530 in your request speeds things up. You can browse other building entrance door models on our building entrance door models page.
Specifications
| Product code | TR530 |
| Category | Building Entrance Steel Door Models |
| Leaf construction | double leaf + side glass + transom window |
| Color / finish | honey-toned wood |
| Surface pattern | plain frame |
| Handle | curved stainless steel handle |
| Upper section | glazed transom window |
| Design language | modern |
| Push-to-open system | self-closing system within 6 seconds |
| Door closer | size 5 door closer |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | wide clear glass panels |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
