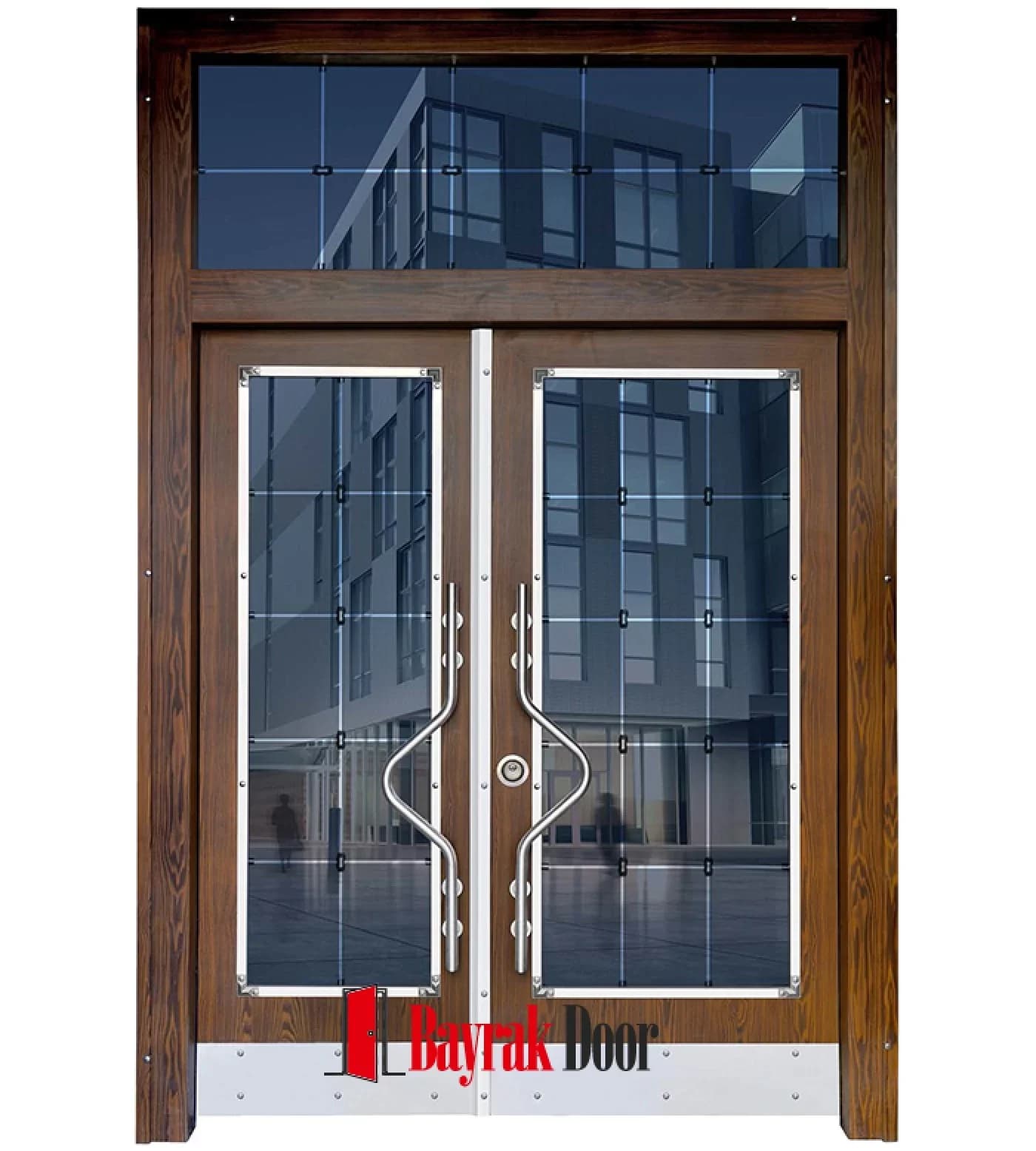

Walnut-framed fully glazed double leaf with a wide transom window above. Product code: TR535. Made to measure after an on-site survey.
- Leaf construction
- double leaf
- Color / finish
- walnut wood
- Handle
- curved stainless steel handles
- Design language
- modern
- Upper section
- transom window with wide glass
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
A walnut-framed fully glazed double leaf with a wide transom window above. Listed in our catalog under code TR535. Like every door we make, this model is produced to measure — no leaves are supplied from stock. The catalog finish is a walnut wood tone.
Product Code: TR535
Leaf, Glazing and Transom
The leaf structure is a double leaf. The leaf carries a plain frame. The finish is a walnut wood tone.
The glazing is resolved as full-height clear panes. Above the leaf sits a wide glazed transom window. Curved stainless steel handles were chosen for this model. Color, pattern and handle choices can be tailored to your project; the cladding options page compares what is available.
Which Entrances Suit This Model?
It is generally used in commercial building entrances and residential complex blocks. It is designed for wide openings: the side sections both take up the extra width and bring light into the entrance. We compare where a villa door differs from a building entrance door on our villa door vs. building entrance door page.
From Measurement to Installation
We take the measurements during the survey — based on the door opening, not the existing leaf; the method is explained on our how to measure page. You will find this model's frame, leaf and lock values in the table below; the lock systems and galvanized or DKP sheet steel pages detail the options. Maintenance steps that extend the door's life are on the care and lifespan page, and the coverage itself on the warranty and service page.
Frequently Asked Questions
How is the price of the TR535 determined?
There is no fixed price — since every leaf is made to measure, the total depends on the dimensions, the cladding and the lock you choose. After the survey we send a written, itemized quote. We break down the cost items on our steel door prices page.
Can the color of the TR535 be changed?
Yes — the color is not fixed. The catalog shows walnut wood, but the cladding is decided per project; on our cladding options page we cover which surface works best where.
Can the glass in the TR535 be changed?
Yes. The glass shown is this model's catalog finish; it can be produced in different colors and patterns, provided Şişecam 5+5 mm laminated glass is used. A glassless version is also possible.
How does the measuring stage work when ordering the TR535?
Measuring is our job. We take the clear width of the opening, the height from the finished floor and the wall thickness; details on our how to measure page.
How can I order the TR535 model?
You can fill out the pre-order form on our site or reach us at 0532 689 21 46. Mentioning product code TR535 in your request speeds things up. You can browse other building entrance door models on our building entrance door models page.
Specifications
| Product code | TR535 |
| Category | Building Entrance Steel Door Models |
| Leaf construction | double leaf |
| Color / finish | walnut wood |
| Surface pattern | plain frame |
| Handle | curved stainless steel handles |
| Upper section | transom window with wide glass |
| Design language | modern |
| Push-to-open system | self-closing system within 6 seconds |
| Door closer | size 5 door closer |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | full-height clear glass panels |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
