Damask Motif White Building Entrance Door TR528

Product CodeTR528

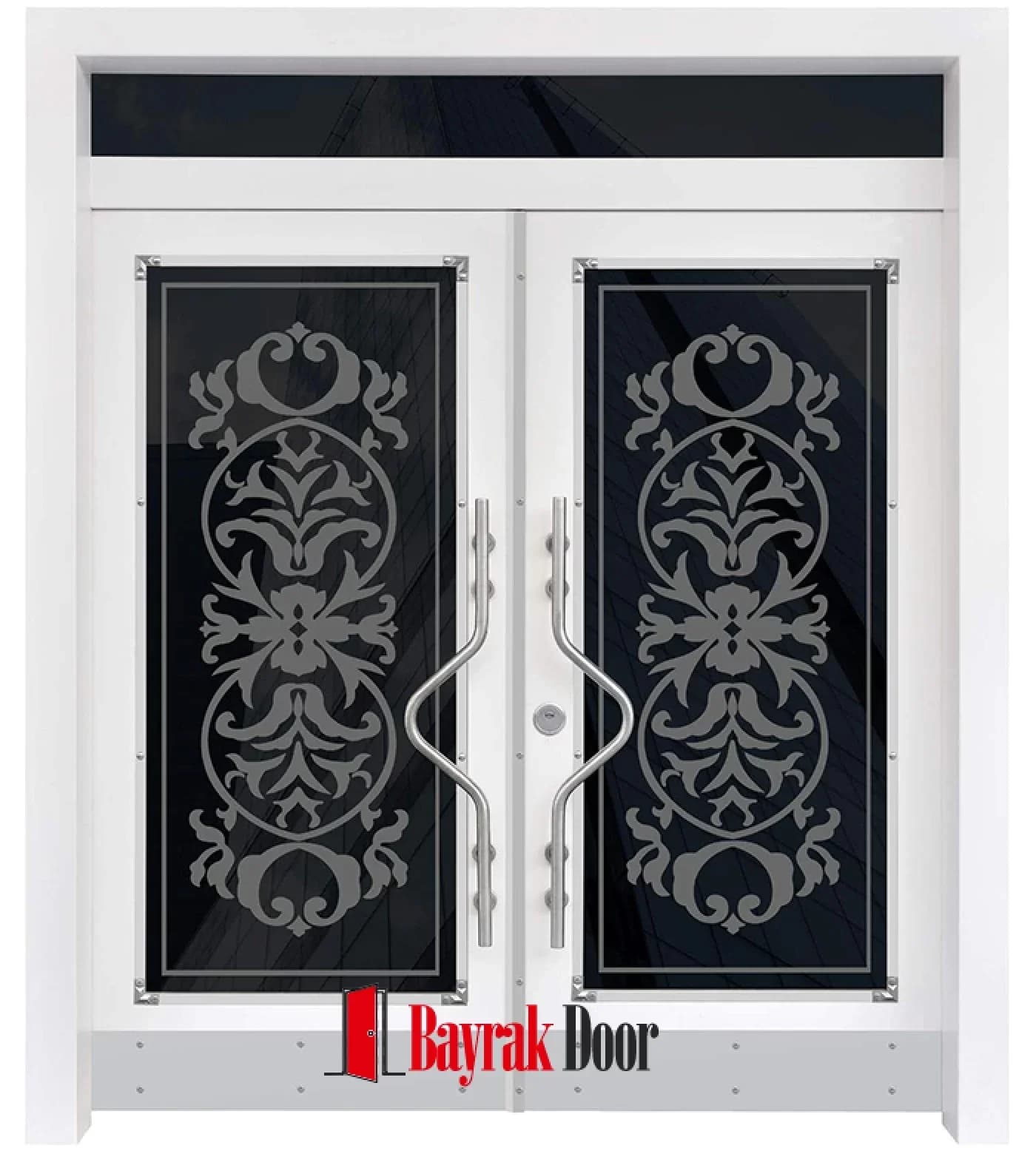

A silver damask motif over black glass on a white body, with a curved stainless steel handle. Product code: TR528. Made to measure after an on-site survey.

Leaf construction
double leaf
Color / finish
white
Handle
curved stainless steel handle
Design language
modern-classic
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeTR528

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

A silver damask motif over black glass on a white body, with a curved stainless steel handle. It appears in the catalog under code TR528. It is made to measure; whatever the width and height of your entrance, the leaf is built to match.

Product Code: TR528

Leaf and Glass Layout

The leaf layout is double leaf. The leaf surface is worked with a damask motif. The catalog color is a white tone.

The glazing is resolved as silver baroque damask patterned glass on a black ground. The model is fitted with a curved stainless steel handle. Color, pattern, and handle choices can be adapted to your project; the options are compared on the cladding options page.

The design language is modern-classic.

Who Is This Model For?

Apartment building entrances and housing-complex blocks are this model's typical settings. Thanks to the side sections, wide door openings are closed with a single configuration. We compare where a villa door and a building entrance door part ways on the villa door vs. building entrance door page.

From Measurement to Installation

Production begins with measurements taken on site. How the door opening is measured is covered on the how doors are measured page; material choices are on the galvanized or DKP sheet steel and lock systems pages. This model's technical specifications are in the table below. The maintenance steps that extend the door's life are on the care and lifespan page, and the coverage is on the warranty and service page.

Frequently Asked Questions

How is the price of TR528 determined?

We do not publish list prices, because every door is made to measure. The total depends on the size of the door opening and the cladding, glass, and lock you choose. After a free site survey, we provide a written quote itemized line by line; we explain what drives the price on the steel door prices page.

Can the color of TR528 be changed?

Yes. The white finish in the photo is this model's catalog choice; with compact laminate, composite, marine plywood, and wood veneer options it can be produced in other colors. We compare the options on the cladding options page.

Can the glass in TR528 be changed?

Yes. The glass shown is this model's catalog finish; provided Şişecam 5+5 mm laminated glass is used, it can be produced in different colors and patterns. A glass-free version is also possible.

How does measuring work when ordering TR528?

Measuring is our job. We measure the clear width of the door opening, its height from the finished floor, and the wall thickness; details are on the how doors are measured page.

How can I order model TR528?

You can fill in the pre-order form on our website or call us on 0532 689 21 46. Mentioning the product code TR528 in your request speeds things up. You can browse other building entrance door designs on the building entrance door models page.

Specifications

Product codeTR528
CategoryBuilding Entrance Steel Door Models
Leaf constructiondouble leaf
Color / finishwhite
Surface patterndamask motif
Handlecurved stainless steel handle
Design languagemodern-classic
Push-to-open systemself-closing system within 6 seconds
Door closersize 5 door closer
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionglass panels with silver baroque damask pattern on black background
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
