Dark Walnut Pivot Door with Gold Handle and Side Glass BY-44
Dark walnut pivot door with gold handle and side glass. Product code: BY-44. Made to measure after an on-site survey.
- Leaf construction
- single leaf
- Color / finish
- dark walnut
- Glass
- Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
- Design language
- luxury pivot
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty

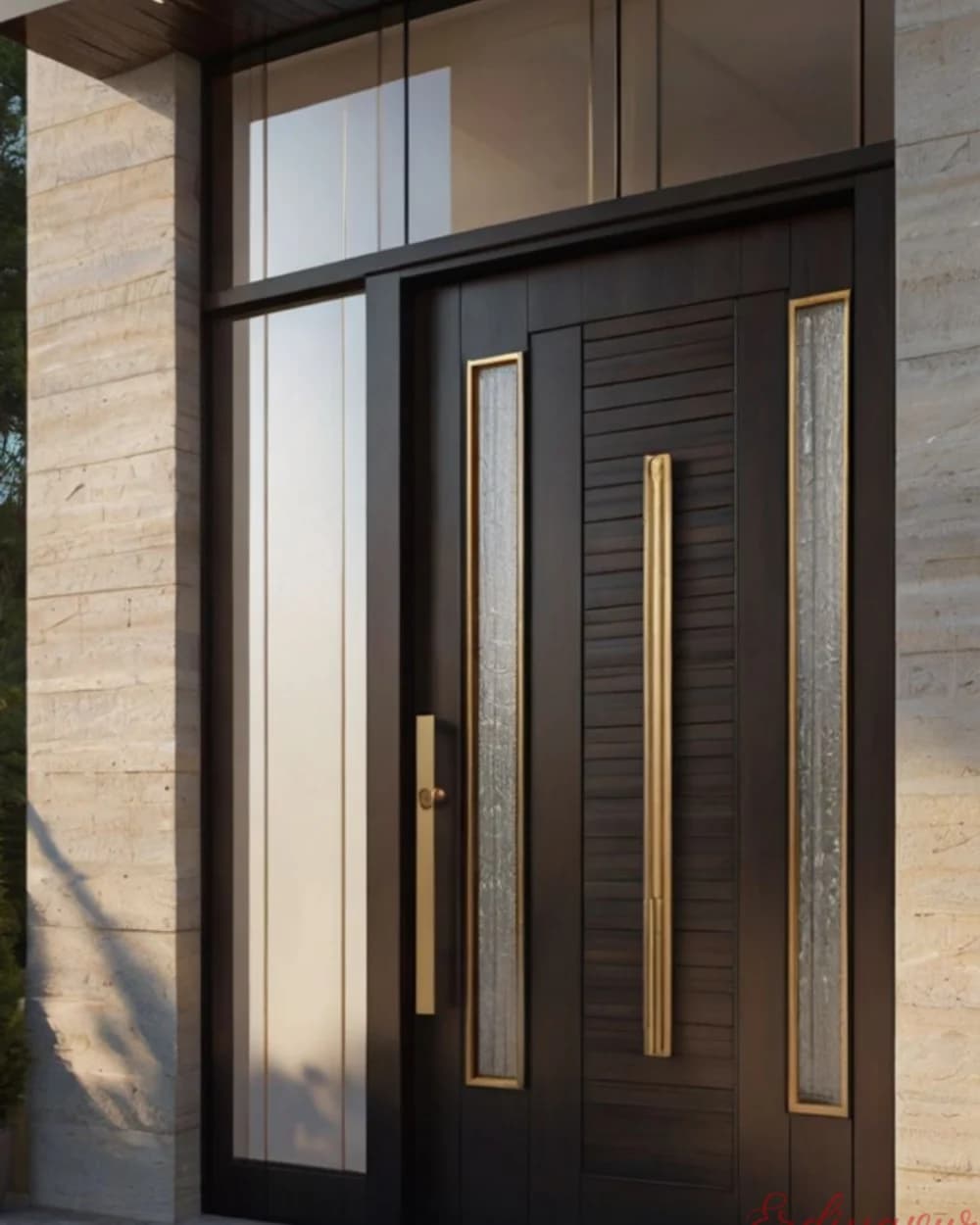

The dark walnut pivot door with gold handle and side glass, code BY-44, is a made-to-measure pivot steel door. There is no standard size — the door opening is measured during the survey and production follows that measurement. The finish in the photo is dark walnut.
Product Code: BY-44
Leaf Surface
The model is configured as a single leaf. The leaf is designed with a gold handle and side glass. The surface is finished in dark walnut.
The finish in the image is the catalog choice — a different cladding can be selected from the cladding options page.
The design language is defined as luxury pivot.
Suitable Entrances
Hotel and showroom entrances and villa entrances are this model's typical settings. The one-piece leaf presents a single unbroken surface from the outside. The leaf rotates on bearings set into the floor and the head frame, which makes dimensions possible that no hinge could carry. In return, it needs swing clearance both in front of and behind the door. The when to choose a pivot door page explains which entrances are suitable.
Measurement, Production and Installation
Production starts with measurements taken on site. How the door opening is measured is covered on the how measurements are taken page; material choices on the galvanized or DKP sheet steel and lock systems pages. This model's technical values are in the table below. After installation, the care and lifespan and warranty and service terms apply.
Frequently Asked Questions
How much does the BY-44 cost?
The price cannot be quoted before measuring. The size of the door opening and your cladding, glass and lock choices directly affect the total; the survey is free of charge and is followed by an itemized quote. See steel door prices for details.
Can I have this model in a color other than dark walnut?
Yes. The dark walnut finish in the image is this model's catalog choice; it can be produced in other colors with compact laminate, composite, marine plywood and wood veneer options. We compare them on the cladding options page.
Do I need to take the measurements myself?
We take the measurements during the survey; nothing is required on your part. Measurements come from the door opening, not the existing leaf — the method is described on the how measurements are taken page.
How do I get a quote for the BY-44?
You can fill in the pre-order form on our site or call us on 0532 689 21 46. Mentioning product code BY-44 in your request speeds the process up. You can browse other pivot steel door models on the pivot steel door models page.
Specifications
| Product code | BY-44 |
| Category | Pivot Steel Door Models |
| Color / finish | dark walnut |
| Design language | luxury pivot |
| Leaf construction | single leaf |
| Rotation system | Floor and ceiling bearings — no conventional hinges used |
| Load transfer | Leaf weight is transferred to the floor, not the frame |
| Rotation axis | Determined per project based on leaf width |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Leaf | Ereğli A1 grade 1.5 + 1.5 mm (0.118" total) omega-bent, monoblock-reinforced pan system |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Frame reinforcement | Lock area and bearing seats reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf reinforcement | Lock area and pivot shaft surround reinforced with 3 mm (0.118") angle bar |
| Infill | 80 kg/m³ rock wool |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Access system | Optional card, keypad or fingerprint entry |
| Glass | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Floor preparation | Preparation is required where the bottom bearing sits — assessed during site survey |
| Required clearance | Clearance is needed in both directions, as the leaf swings both inward and outward |
| Installation | Installed by aligning the floor and ceiling bearings; one-piece frame, fixed with M8 bolts |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
