White body with diamond-pattern wrought iron side windows and fine horizontal stainless steel lines. Product code: TR538. Made to measure after an on-site survey.
- Leaf construction
- single leaf + double sidelight
- Color / finish
- white
- Handle
- horizontal stainless steel pull bar
- Design language
- modern white
- Upper section
- navy blue transom window
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty

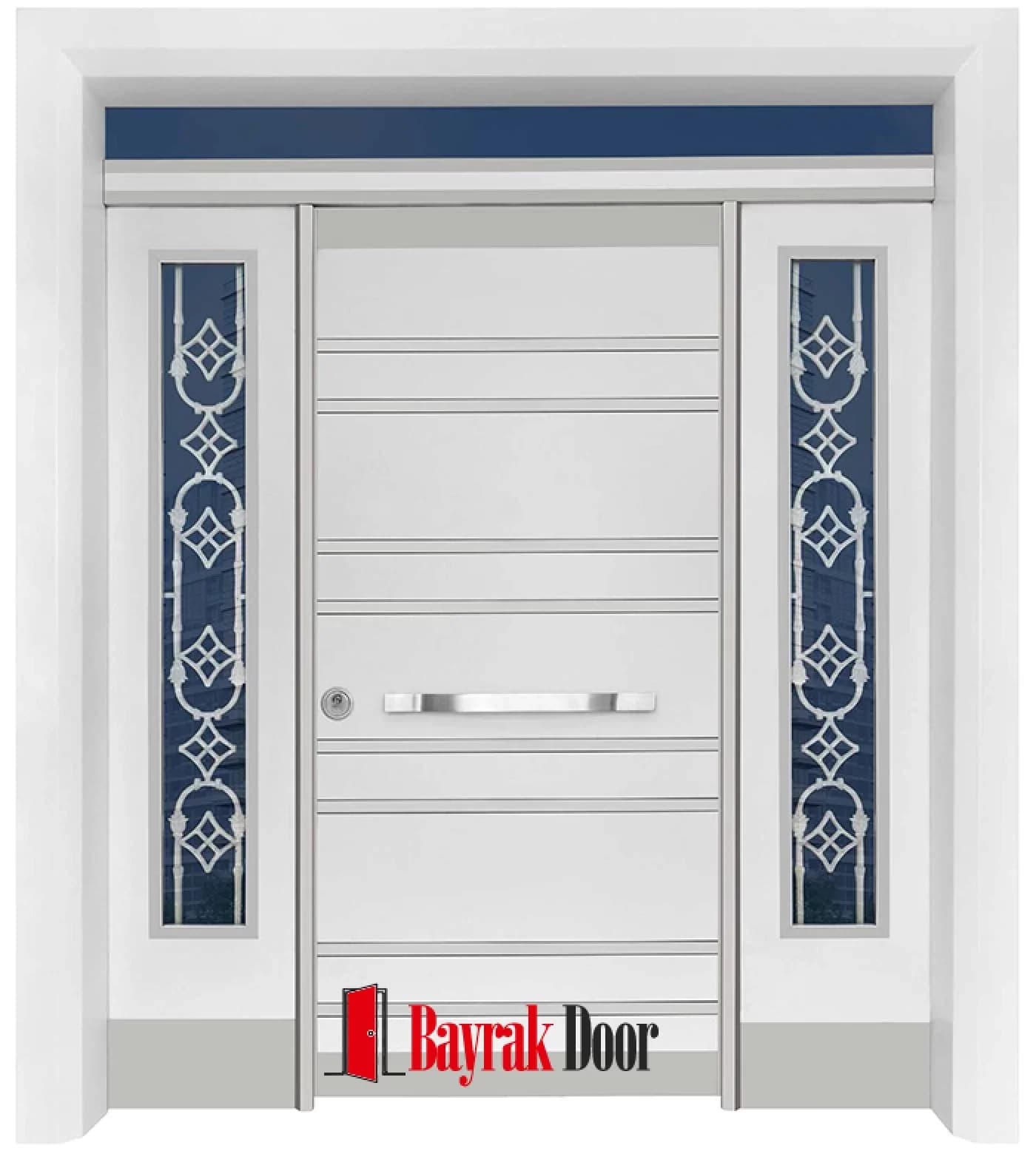

A white body with diamond-pattern wrought iron side windows and fine horizontal stainless steel lines. It appears in our catalogue under code TR538. It is not sold in ready-made sizes; your entrance is measured on site and the leaf is manufactured to fit. The image shows the white finish.
Product Code: TR538
Glass, Upper Section and Surface
The model is configured as a single leaf with two side windows. The surface detailing consists of fine horizontal stainless steel lines across the leaf. The surface is finished in white.
The glass section features a white wrought iron diamond geometry in the side windows. Above sits a navy blue transom window. A horizontal stainless steel pull serves as the handle. The finish in the image is the catalogue selection — a different cladding can be chosen from the cladding options.
The design language is defined as modern white.
Suitable Entrances
It is chosen primarily for housing developments and residential complex blocks. Because the side sections widen the assembly, it suits wide-fronted entrances rather than narrow ones — and brings daylight into the entrance hall. The difference between these two door types is not just size; we cover it in detail on the villa door vs. building entrance door page.
Production and Installation Process
We take the measurements during the site survey — based on the door opening, not the existing leaf; the method is explained on the how measurements are taken page. You will find this model's frame, leaf and lock values in the table below; the lock systems and galvanized or DKP sheet steel pages detail the options. After delivery, warranty and service coverage takes effect; see the care and lifespan page for protecting the surface.
Frequently Asked Questions
How much does the TR538 model cost?
We do not publish list prices, because every door is made to measure. The cost is determined by the size of the door opening and the cladding, glass and lock you choose. After a free site survey we provide a written, itemized quote; we explain what drives the price on the steel door prices page.
Can the TR538 be produced in a different color?
Yes. The white finish in the image is this model's catalogue selection; it can be produced in different colors with compact laminate, composite, marine plywood and wood veneer options. We compare them on the cladding options page.
Can the glass pattern be different?
Yes. The glass in the image is this model's catalogue finish; it can be produced in different colors and patterns, provided Şişecam 5+5 mm laminated glass is used. The door can also be made without glass.
How does the measuring stage work when ordering the TR538?
Our survey team measures on site. If you would still like to know the process, the how measurements are taken page explains the three points we measure from.
How do I get a quote for the TR538?
You can fill in the pre-order form on our site or call us on 0532 689 21 46. Mentioning product code TR538 in your request speeds things up. You can browse other building entrance door models on the building entrance door models page.
Specifications
| Product code | TR538 |
| Category | Building Entrance Steel Door Models |
| Leaf construction | single leaf + double sidelight |
| Color / finish | white |
| Surface pattern | fine horizontal stainless steel lines on the leaf |
| Handle | horizontal stainless steel pull bar |
| Upper section | navy blue transom window |
| Design language | modern white |
| Push-to-open system | self-closing system within 6 seconds |
| Door closer | size 5 door closer |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | white wrought iron diamond geometry on side glass |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
