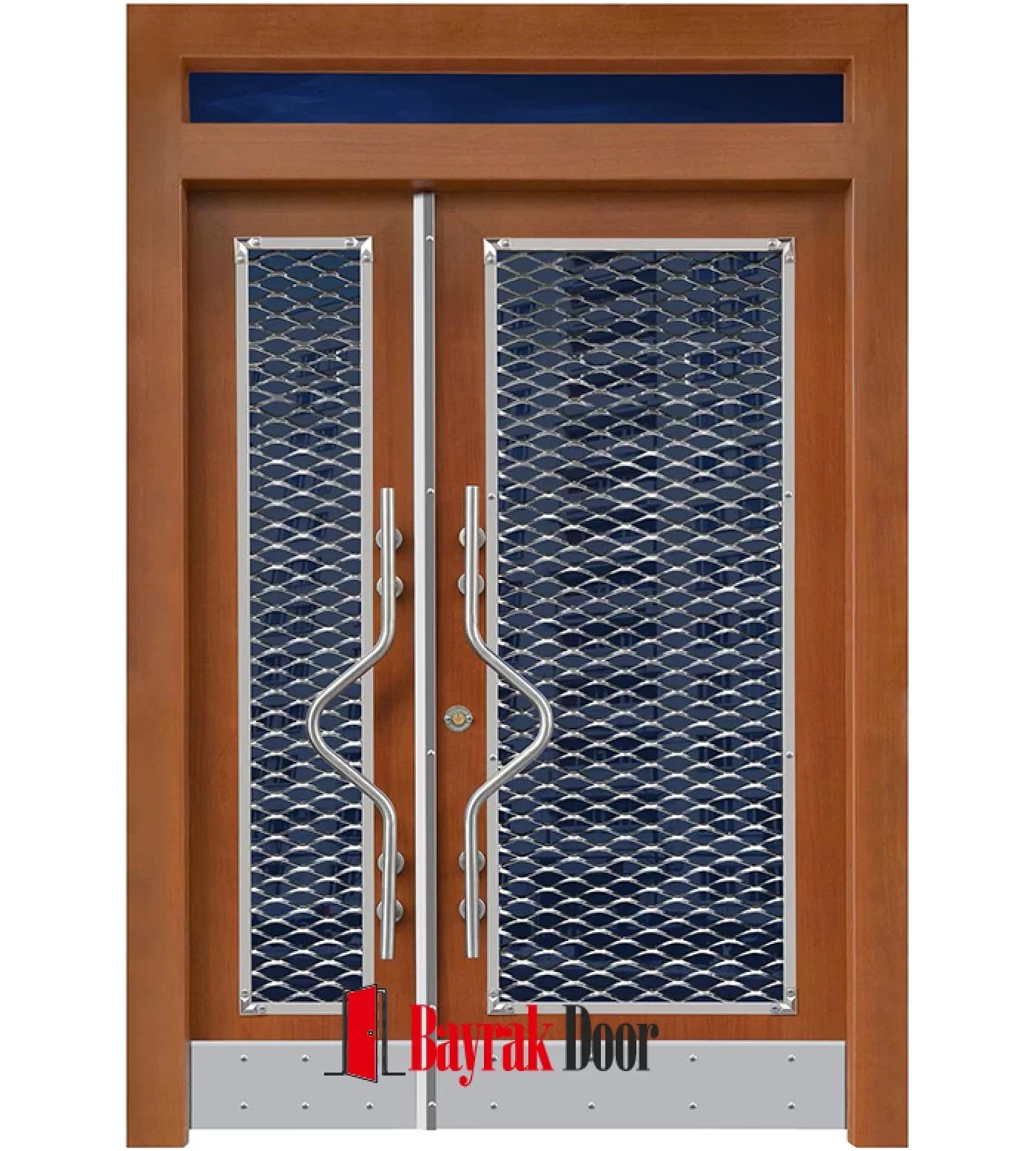

Honeycomb Grille Honey Wood Building Entrance Door TR539

Product CodeTR539

Honey-toned body with glazing protected by a honeycomb-textured metal grille. Product code: TR539. Made to measure after an on-site survey.

Leaf construction
double leaf
Color / finish
honey-toned wood
Handle
curved stainless steel handle
Design language
modern
Upper section
navy blue transom window
Share this model

Pre-Order & Price Request

This model is made to measure. Leave your request and we'll call you to arrange a site survey.

Product codeTR539

This is here to block automated submissions — it only takes a second.

  • Survey and measurement are free
  • Same-day response
  • Made in our own factory
  • Lifetime manufacturing warranty
Download this model's PDF spec sheet
Worldwide shipping & export
Made in our own factory
Lifetime manufacturing warranty

The honeycomb grille honey wood building entrance door, code TR539, is produced with a honey-toned body and glazing protected by a honeycomb-textured metal grille. There is no standard size — the door opening is measured during the survey and production follows that measurement. The catalog finish is a honey wood tone.

Product Code: TR539

Leaf, Glazing and Transom

The leaf structure is a double leaf. The leaf carries a honeycomb grille texture. The finish is a honey wood tone.

The glazing is resolved as panes behind a honeycomb metal grille. Above the leaf sits a navy blue transom window. A curved stainless steel handle was chosen for this model. Color, pattern and handle choices can be tailored to your project; the cladding options page compares what is available.

Which Entrances Suit This Model?

Commercial building entrances and apartment building entrances are where this model is typically used. Thanks to the side sections, wide door openings are closed with a single assembly. We compare where a villa door differs from a building entrance door on our villa door vs. building entrance door page.

From Measurement to Installation

Production starts with measurements taken on site. How the opening is measured is covered on our how to measure page; material choices on the galvanized or DKP sheet steel and lock systems pages. The technical values for this model are in the table below. Maintenance steps that extend the door's life are on the care and lifespan page, and the coverage itself on the warranty and service page.

Frequently Asked Questions

How is the price of the TR539 determined?

There is no fixed price — since every leaf is made to measure, the total depends on the dimensions, the cladding and the lock you choose. After the survey we send a written, itemized quote. We break down the cost items on our steel door prices page.

Can the color of the TR539 be changed?

Yes — the color is not fixed. The catalog shows honey wood, but the cladding is decided per project; on our cladding options page we cover which surface works best where.

Can the glass in the TR539 be changed?

Yes. The glass shown is this model's catalog finish; it can be produced in different colors and patterns, provided Şişecam 5+5 mm laminated glass is used. A glassless version is also possible.

Do I need to take the measurements myself?

Measuring is our job. We take the clear width of the opening, the height from the finished floor and the wall thickness; details on our how to measure page.

How can I order the TR539 model?

You can fill out the pre-order form on our site or reach us at 0532 689 21 46. Mentioning product code TR539 in your request speeds things up. You can browse other building entrance door models on our building entrance door models page.

Specifications

Product codeTR539
CategoryBuilding Entrance Steel Door Models
Leaf constructiondouble leaf
Color / finishhoney-toned wood
Surface patternhoneycomb lattice texture
Handlecurved stainless steel handle
Upper sectionnavy blue transom window
Design languagemodern
Push-to-open systemself-closing system within 6 seconds
Door closersize 5 door closer
Access systemOptional card or keypad entry
Sheet thicknessFrame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1)
FrameEreğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent
Frame reinforcementLock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet
LeafEreğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system
Leaf reinforcementLock and hinge area reinforced with 3 mm (0.118") angle bar
Leaf thicknessBare metal 70 mm (2.76") — 90 mm (3.54") in total
Infill80 kg/m³ rock wool
Lock surroundintegrated with 1 mm (0.039") grade 304 stainless steel
Hinge3 adjustable 20 mm (0.787") ball-bearing pin hinges
Hinge reinforcement5 mm (0.197") thick flat bar
Fixed pin5 units on the hinge side, 20 mm (0.787") diameter
GasketSilicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight)
Surface finish10 mm (0.394") Camsan first-grade iroko
Finish optionsPowder coating, natural wood, marine plywood, iroko wood or composite compact laminate
VarnishPolyurethane infill, 90-micron coverage rating
PolishAkzo Nobel
Accessoriesfirst-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions)
InstallationOne-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts
Frame-to-wall gap1 cm (0.394"), filled with polyurethane foam
ProductionManufactured to custom on-site measurements
WarrantyUnlimited coverage for manufacturing defects — 2-year official warranty certificate
Lock systemOptional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock
Glass sectionhoneycomb metal lattice glass
Glass typeŞişecam 5+5 mm (0.394" total) laminated glass (impact resistant)

Frequently Asked Questions

What is the lead time for a custom villa door?

Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.

How are steel doors packaged for sea freight export?

Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.

What measurements do you need to quote?

The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.

Can you manufacture to imperial (inch) dimensions?

Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.

Who installs the door at the destination?

Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.

What export documents travel with the shipment?

Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
