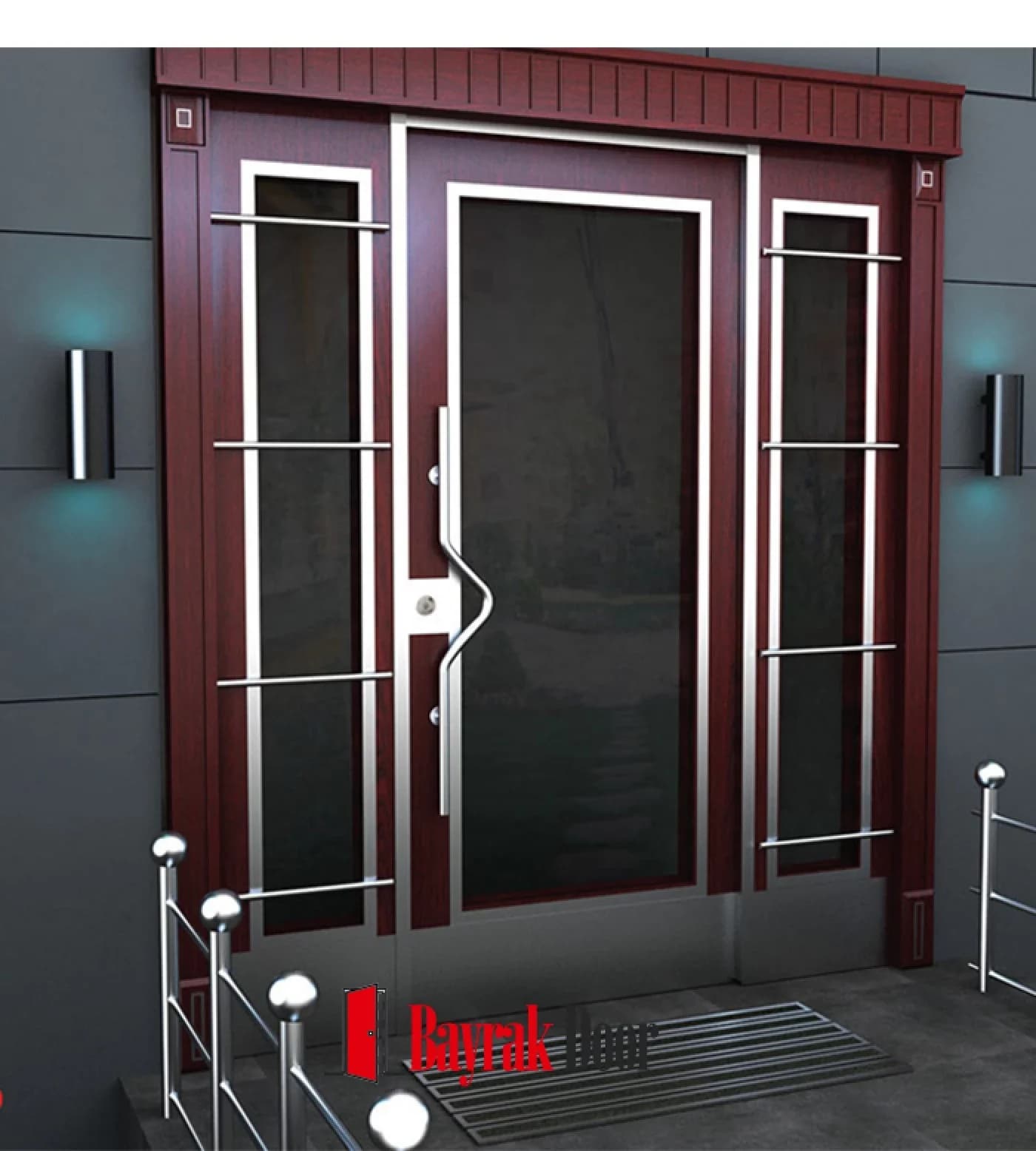

Burgundy-framed, fully glazed leaf flanked by rows of horizontal stainless bars. Product code: TR514. Manufactured to measure, following an on-site survey.
- Leaf construction
- single wide leaf + double sidelight
- Color / finish
- burgundy-cherry
- Handle
- curved stainless steel handle
- Design language
- modern
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
The TR514 horizontal-stainless burgundy-cherry building entrance door is produced with a fully glazed, burgundy-framed leaf flanked by rows of horizontal stainless bars. Like every door we build, this model is manufactured to measure — there's no ready-made leaf pulled from stock. The finish shown in the photo is burgundy-cherry cladding.
Product Code: TR514
Glass and Surface Details
The model is configured as a single wide leaf with double side glazing. The surface features rows of horizontal stainless bars. The color applied is burgundy-cherry.
The model features full-height clear glazing. A curved stainless handle is used. Cladding and hardware aren't fixed; it can be produced with the alternatives on our cladding options page.
Suitable Entrances
It's chosen primarily for residential complexes and apartment building entrances. Thanks to the side sections, wide door openings are covered by a single, unified design. The difference between the two types isn't just size — we've detailed it on our villa door vs. building entrance door page.
Measurement, Production and Installation
Measurements are taken from the door opening, not the existing leaf — we've written up the step-by-step method on our how measurements are taken page. Frame, steel thickness, infill and lock specifications are listed in the feature table below. The steel choice is compared on our galvanized vs. cold-rolled steel page, and lock alternatives on our lock systems page. After installation, our care and lifespan and warranty and service terms apply.
Frequently Asked Questions
How much does TR514 cost?
We don't publish a list price, because the door is built to measure. The amount is set by the size of the door opening plus the cladding, glass and lock you choose. After a free survey, we provide a written, itemized quote; we've explained what affects the price on our steel door prices page.
Can I have this model made in a color other than burgundy-cherry?
It can be. Burgundy-cherry is simply the finish shown in the photo, not a fixed choice — you can pick from the alternatives on our cladding options page.
Can the glass pattern be different?
Yes. The glass shown is this model's catalog finish; it can be produced in a different color and pattern as long as Şişecam 5+5 mm laminated glass is used. A version without glass is also possible.
How is the measurement taken for TR514?
Our survey team measures on site. If you'd still like to understand the process, we've written up the three points we measure on our how measurements are taken page.
How do I get a quote for TR514?
You can fill out the pre-order form on the site, or reach us at 0532 689 21 46. Mentioning the TR514 product code in your request speeds up the process. You can browse other building entrance door models on our building entrance door models page.
Specifications
| Product code | TR514 |
| Category | Building Entrance Steel Door Models |
| Leaf construction | single wide leaf + double sidelight |
| Color / finish | burgundy-cherry |
| Surface pattern | rows of horizontal stainless steel bars |
| Handle | curved stainless steel handle |
| Design language | modern |
| Push-to-open system | self-closing system within 6 seconds |
| Door closer | size 5 door closer |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | full-height clear glass |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
