Horizontal Steel-Slat Walnut Side-Glazed Pivot Door BY-48
Horizontal Steel-Slat Walnut Side-Glazed Pivot Door. Product code: BY-48. Custom-manufactured to measure after an on-site survey.
- Leaf construction
- single leaf
- Color / finish
- walnut
- Glass
- Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
- Design language
- modern pivot
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty

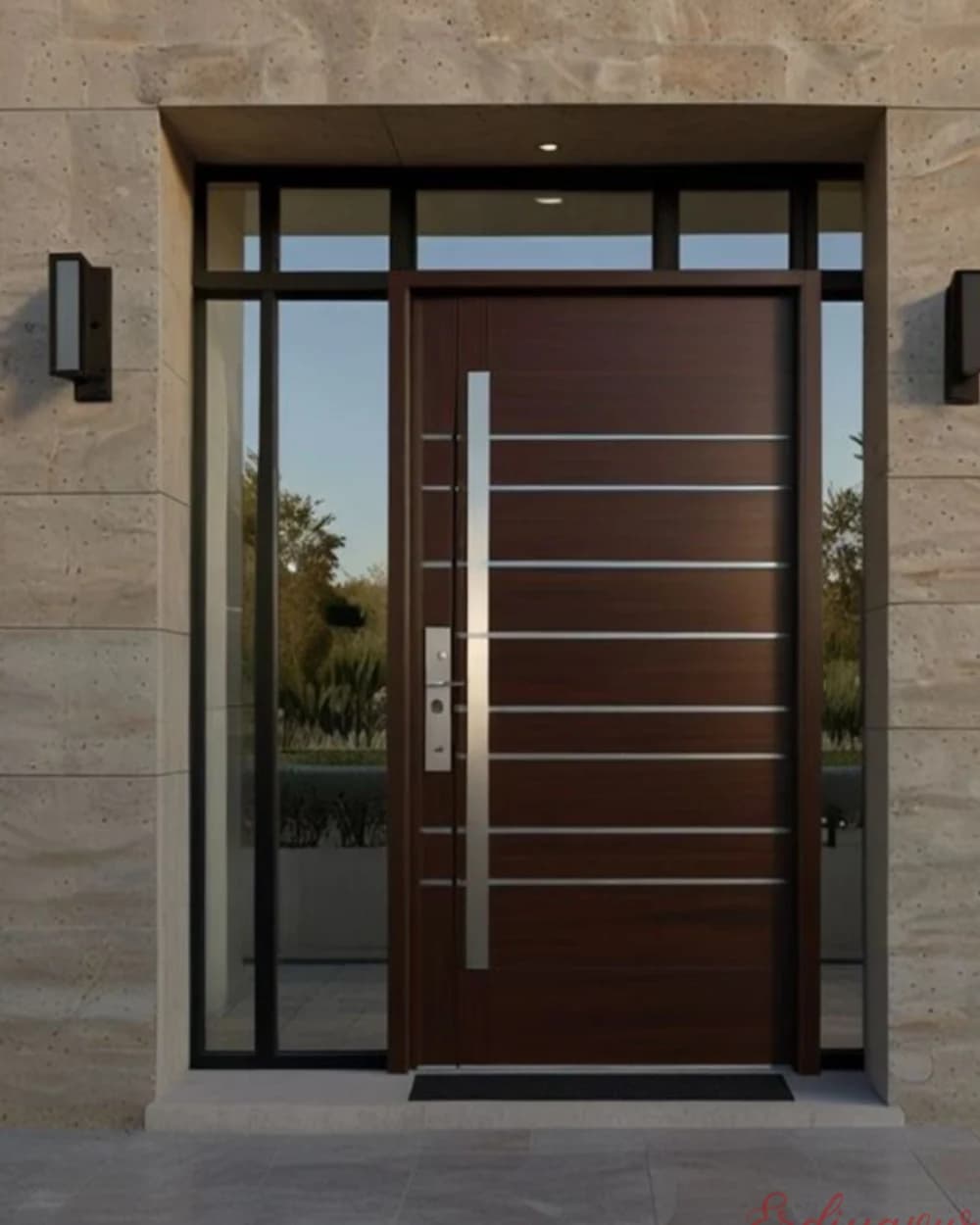

BY-48 is the horizontal steel-slat walnut side-glazed pivot door, a pivot steel door model made to measure. Production begins after the order: an on-site survey comes first, then the leaf is manufactured to match the door opening. The finish shown in the photo is a walnut veneer.
Product Code: BY-48
Leaf Surface
It is produced as a single leaf. The leaf is designed with a horizontal-slat, side-glazed layout. The surface is finished in walnut.
Finish and hardware are not fixed; the door can be produced with any of the alternatives on our finish options page.
The design language is best described as modern pivot.
Suitable Entrances
Hotel and showroom entrances along with villa entrances are the typical settings for this model. The single-leaf layout adapts directly to standard door openings. The leaf pivots on bearings set into the floor and the head frame, which makes sizes possible that hinges couldn't support. In exchange, it needs swing clearance in front of and behind the door. Our when to choose a pivot door page explains which entrances suit it.
Measurement, Production, and Installation
Production begins with an on-site measurement. How the measurement is taken from the door opening is explained on our how measurements are taken page; material choices are covered on our galvanized vs. cold-rolled steel and lock systems pages. This model's technical specifications are listed in the table below. After delivery, our warranty and service coverage applies; for tips on protecting the surface, see our maintenance and lifespan page.
Frequently Asked Questions
How much does the BY-48 model cost?
We don't publish a list price, because the door is custom-made to measure. The total is determined by the size of the door opening and the chosen finish, glass, and lock. After a free site survey, we provide a written quote broken down item by item; we've explained what affects the price on our steel door prices page.
Can I have this model made in a color other than walnut?
Yes. The walnut finish shown in the photo is this model's catalog choice; it can be produced in different colors with compact laminate, composite, water-transfer, and wood-look finish options. We've compared the options on our finish options page.
How does the measurement stage work when ordering BY-48?
Measuring is our job. We measure the door opening's clear width, its height from the finished floor, and the wall thickness; the details are on our how measurements are taken page.
How do I get a quote for BY-48?
You can fill out the pre-order form on our site or call us at 0532 689 21 46. Mentioning the BY-48 product code speeds up the process. You can browse other pivot steel door models on our pivot steel door models page.
Specifications
| Product code | BY-48 |
| Category | Pivot Steel Door Models |
| Color / finish | walnut |
| Design language | modern pivot |
| Leaf construction | single leaf |
| Rotation system | Floor and ceiling bearings — no conventional hinges used |
| Load transfer | Leaf weight is transferred to the floor, not the frame |
| Rotation axis | Determined per project based on leaf width |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Leaf | Ereğli A1 grade 1.5 + 1.5 mm (0.118" total) omega-bent, monoblock-reinforced pan system |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Frame reinforcement | Lock area and bearing seats reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf reinforcement | Lock area and pivot shaft surround reinforced with 3 mm (0.118") angle bar |
| Infill | 80 kg/m³ rock wool |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Access system | Optional card, keypad or fingerprint entry |
| Glass | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Floor preparation | Preparation is required where the bottom bearing sits — assessed during site survey |
| Required clearance | Clearance is needed in both directions, as the leaf swings both inward and outward |
| Installation | Installed by aligning the floor and ceiling bearings; one-piece frame, fixed with M8 bolts |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
