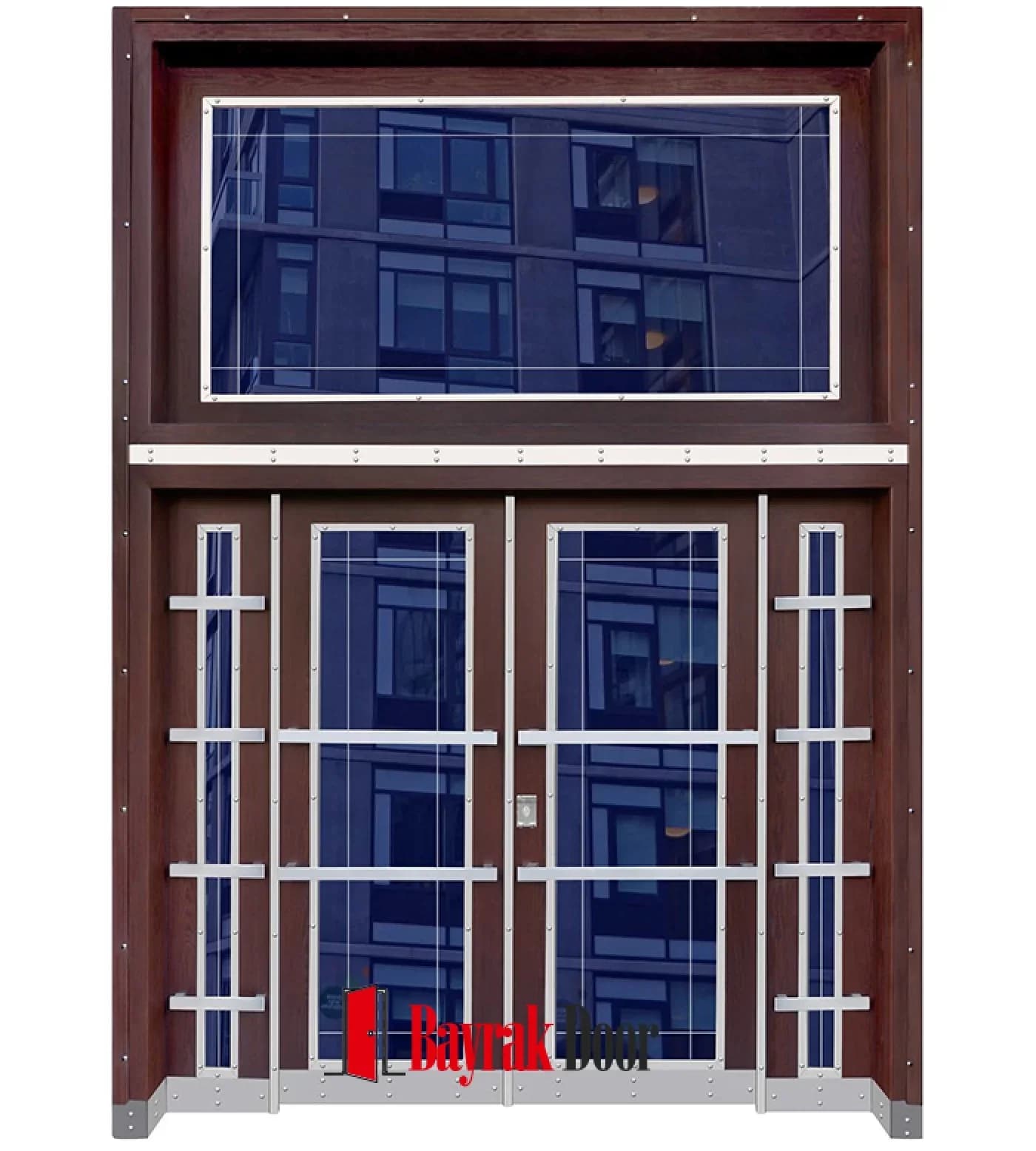

Divided navy blue glass in a burgundy frame with white stainless steel trim. Product code: TR542. Made to measure after an on-site survey.
- Leaf construction
- double leaf + wide transom window
- Color / finish
- burgundy
- Handle
- recessed pull bar
- Design language
- modern
- Upper section
- transom window with wide navy blue glass
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
Divided navy blue glass in a burgundy frame with white stainless steel trim — that is what sets building entrance door model TR542 apart. Like every door we make, this model is produced to measure; no leaf is supplied from stock.
Product Code: TR542
Leaf, Glass and Pediment
The leaf configuration is double leaf with a wide transom window. The leaf surface is worked as a composition of white stainless steel trim. The catalogue colour is a burgundy tone.
The model features divided navy blue glass. Above the leaf sits a wide transom window with navy blue glass. It is finished with a recessed pull. Colour, pattern and handle choices can be adapted to your project; the options are compared on the cladding options page.
Who Is This Model For?
It is the first choice for apartment building entrances and commercial building entrances. It is designed for wide openings: the side sections both make up the width and light the entrance. We compare where a villa door and a building entrance door differ on the villa door vs building entrance door page.
Measurement, Production and Installation
Measurements are taken from the door opening, not the existing leaf; the how to measure page walks through it step by step. Frame, sheet thickness, infill and lock specifications are listed in the table below. Sheet steel choices are compared on the galvanized or DKP sheet steel page, and lock alternatives on the lock systems page. The care steps that extend the door's service life are on the care and lifespan page, and coverage details are on the warranty and service page.
Frequently Asked Questions
How is the price of TR542 determined?
We cannot quote a price before measuring. The size of the opening and your cladding, glass and lock choices directly affect the amount; the survey is free and is followed by an itemized quote. See steel door prices for details.
Can the colour of TR542 be changed?
Yes, it can. Burgundy is simply the finish in the photo, not a fixed choice — you can pick from the alternatives on the cladding options page.
Can the glass on TR542 be changed?
Yes. The glass shown is this model's catalogue finish; it can be produced in a different colour or pattern, provided Şişecam 5+5 mm laminated glass is used. It can also be produced without glass.
Do I need to take the measurements myself?
Our survey team measures on site. If you would still like to know how it works, the how to measure page explains the three points we measure from.
How can I order model TR542?
You can fill in the pre-order form on our website or call us on 0532 689 21 46. Quoting product code TR542 in your request helps us respond faster. You can browse our other building entrance door models on the building entrance door models page.
Specifications
| Product code | TR542 |
| Category | Building Entrance Steel Door Models |
| Leaf construction | double leaf + wide transom window |
| Color / finish | burgundy |
| Surface pattern | white and stainless steel slat composition |
| Handle | recessed pull bar |
| Upper section | transom window with wide navy blue glass |
| Design language | modern |
| Push-to-open system | self-closing system within 6 seconds |
| Door closer | size 5 door closer |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm (0.079"), leaf 1.5+1.5 mm (0.118" total) DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm (0.059") + 1.5 mm (0.059") omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm (0.118") angle bar |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm (0.039") grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm (0.787") ball-bearing pin hinges |
| Hinge reinforcement | 5 mm (0.197") thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm (0.787") diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm (0.394") Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm (0.394"), filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | divided navy blue glass |
| Glass type | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
