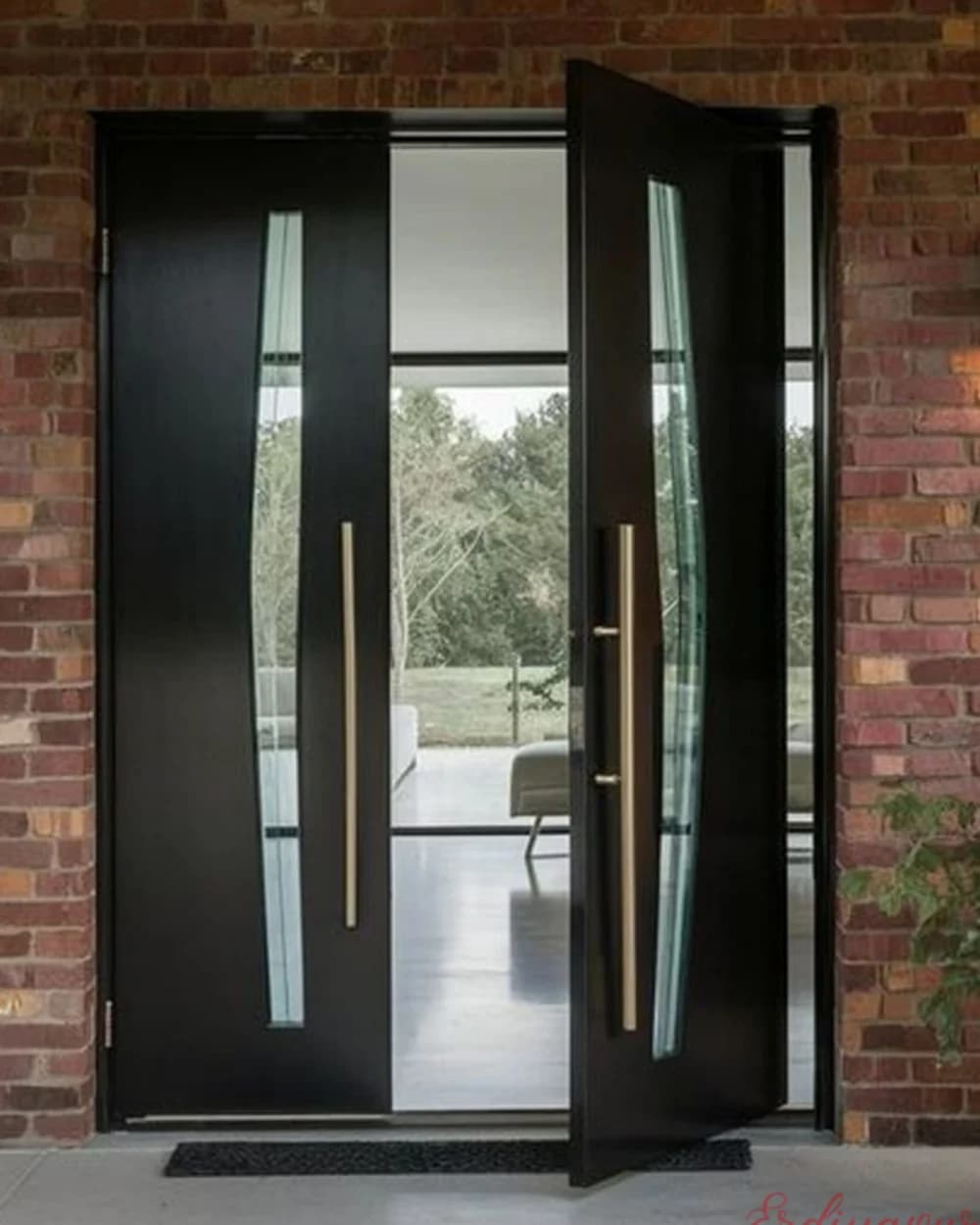

Crescent-Glass Black Brick-Facade Pivot Villa Door BY-256
Crescent-glass black brick-facade pivot villa door. Product code: BY-256. Made to measure after a free on-site survey.
- Leaf construction
- single leaf
- Color / finish
- black
- Glass
- Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
- Design language
- modern pivot
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
The model on this page is a crescent-glass black brick-facade pivot villa door; its code is BY-256. There is no standard size — the door opening is measured during the survey, and production follows that measurement. The catalog finish is black.
Product Code: BY-256
Pattern and Color
The layout is single leaf. The surface is worked in a crescent-glass, brick-facade style. The catalog color is black.
The cladding and hardware are not fixed; it can be produced with any of the alternatives on the cladding options page.
Its design language is best described as modern pivot.
Who Is This Model For?
Villa entrances along with wide-fronted detached homes are this model's typical settings. Its single-leaf design fits standard-width entrances. Because the load rests on the floor rather than on hinges, the leaf can be far wider and thicker. Since it needs swing clearance, it is not suited to narrow entrances that open directly onto stairs; the conditions are laid out on the when to choose a pivot door page.
Measurement, Production, and Installation
Production starts with measurements taken on site. How the door opening is measured is covered on the how measurements are taken page; material choices are covered on the galvanized or DKP sheet and lock systems pages. This model's technical specifications are in the table below. Maintenance steps that extend the door's life are covered on the care and lifespan page, and coverage details on the warranty and service page.
Frequently Asked Questions
How much does BY-256 cost?
We cannot quote a price before taking measurements. The size of the door opening and your cladding, glass, and lock choices directly affect the cost; the on-site survey is free, followed by an itemized quote. See steel door prices for details.
Can the color of BY-256 be changed?
Yes, the color is not fixed. The catalog shows black, but the cladding is chosen per project; on the cladding options page we cover which surface works best where.
Do I need to take the measurements myself?
We take the measurements during the survey; nothing is required on your part. Measurements come from the door opening, not the existing leaf — the method is explained on the how measurements are taken page.
How do I order model BY-256?
You can fill out the pre-order form on our site or reach us at 0532 689 21 46. Mentioning product code BY-256 in your request speeds things up. You can browse our other pivot steel door models on the pivot steel door models page.
Specifications
| Product code | BY-256 |
| Category | Pivot Steel Door Models |
| Color / finish | black |
| Design language | modern pivot |
| Leaf construction | single leaf |
| Rotation system | Floor and ceiling bearings — no conventional hinges used |
| Load transfer | Leaf weight is transferred to the floor, not the frame |
| Rotation axis | Determined per project based on leaf width |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Leaf | Ereğli A1 grade 1.5 + 1.5 mm (0.118" total) omega-bent, monoblock-reinforced pan system |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Frame reinforcement | Lock area and bearing seats reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf reinforcement | Lock area and pivot shaft surround reinforced with 3 mm (0.118") angle bar |
| Infill | 80 kg/m³ rock wool |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Access system | Optional card, keypad or fingerprint entry |
| Glass | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Floor preparation | Preparation is required where the bottom bearing sits — assessed during site survey |
| Required clearance | Clearance is needed in both directions, as the leaf swings both inward and outward |
| Installation | Installed by aligning the floor and ceiling bearings; one-piece frame, fixed with M8 bolts |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
