Narrow Glass Strip Black Double Leaf Pivot Door BY-233
Narrow Glass Strip Black Double Leaf Pivot Door. Product code: BY-233. Made to measure after an on-site survey.
- Leaf construction
- double leaf
- Color / finish
- black
- Glass
- Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
- Design language
- modern pivot
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty

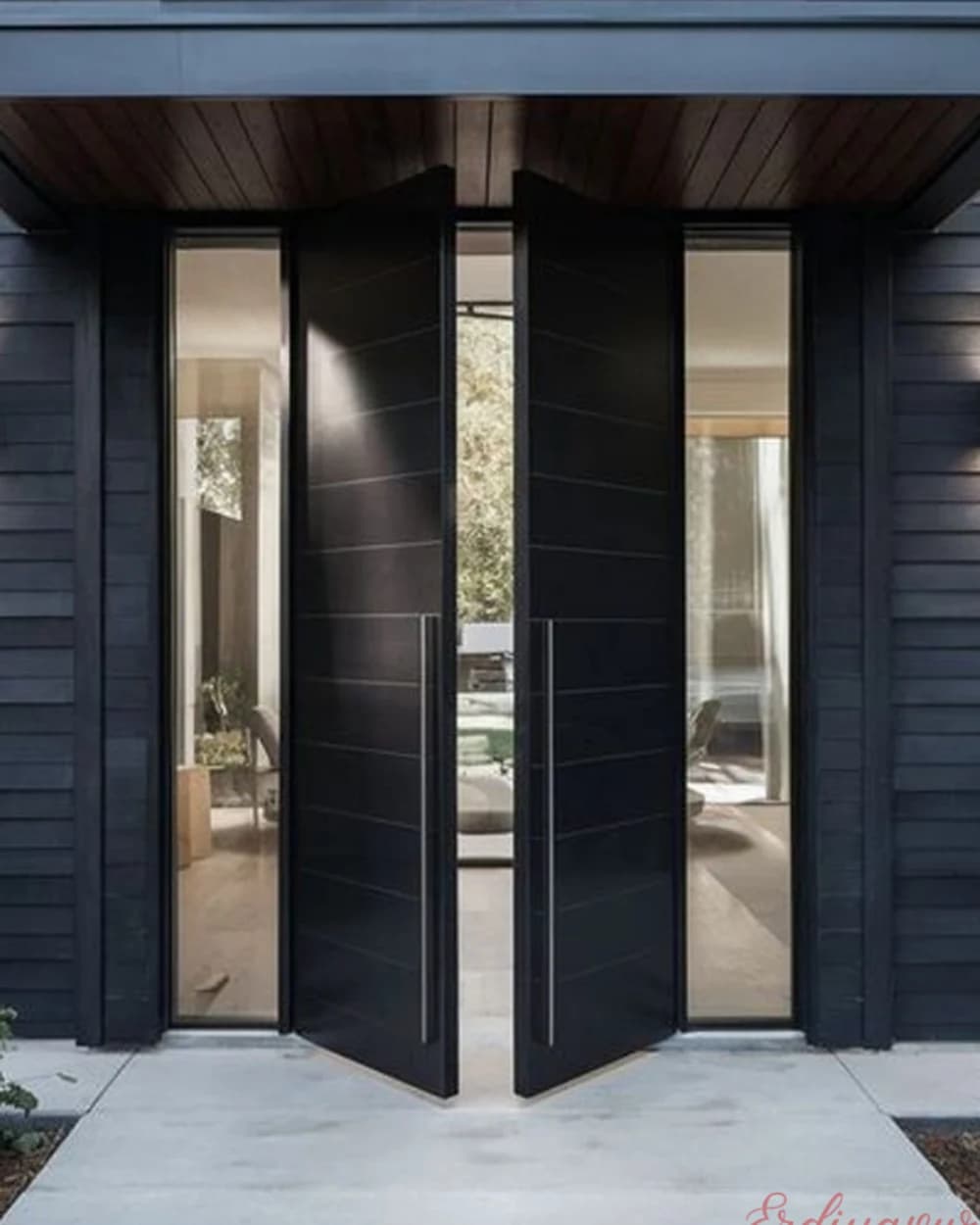

The narrow glass strip black double leaf pivot door coded BY-233 is a made-to-measure pivot steel door model. It is not sold in stock sizes; your entrance is measured on site, and the leaf is built to that measurement. The finish in the photo is black cladding.
Product Code: BY-233
Pattern and Color
The model is configured as a double leaf. The leaf is designed with a narrow glass strip. The surface is finished in black.
Color, pattern, and handle choices can be adapted to your project; the options are compared on the cladding options page.
The design language is modern pivot.
Suitable Entrances
It is chosen primarily for office and plaza entrances and hotel and showroom entrances. Thanks to the side sections, wide door openings are closed with a single configuration. Because a pivot system transfers the leaf's weight to the floor, it can carry a taller and heavier leaf than a hinged door. Since the leaf sweeps through space in front and behind as it turns, the entrance must accommodate this clearance — details on the when to choose a pivot door page.
From Measurement to Installation
Production begins with measurements taken on site. How the door opening is measured is covered on the how doors are measured page; material choices are on the galvanized or DKP sheet steel and lock systems pages. This model's technical specifications are in the table below. After delivery, warranty and service coverage applies; see the care and lifespan page for protecting the surface.
Frequently Asked Questions
How is the price of BY-233 determined?
There is no fixed price — since every leaf is made to measure, the total varies with the dimensions, cladding, and lock you choose. After the survey, we send a written, itemized quote. The cost items are broken down on the steel door prices page.
Can I have this model in a color other than black?
Yes, it can. Black is only the finish shown in the photo, not a fixed choice — you can pick from the alternatives on the cladding options page.
How does measuring work when ordering BY-233?
Measuring is our job. We measure the clear width of the door opening, its height from the finished floor, and the wall thickness; details are on the how doors are measured page.
How do I get a quote for BY-233?
You can fill in the pre-order form on our website or call us on 0532 689 21 46. Mentioning the product code BY-233 in your request speeds things up. You can browse other pivot steel door designs on the pivot steel door models page.
Specifications
| Product code | BY-233 |
| Category | Pivot Steel Door Models |
| Color / finish | black |
| Design language | modern pivot |
| Leaf construction | double leaf |
| Rotation system | Floor and ceiling bearings — no conventional hinges used |
| Load transfer | Leaf weight is transferred to the floor, not the frame |
| Rotation axis | Determined per project based on leaf width |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Leaf | Ereğli A1 grade 1.5 + 1.5 mm (0.118" total) omega-bent, monoblock-reinforced pan system |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Frame reinforcement | Lock area and bearing seats reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf reinforcement | Lock area and pivot shaft surround reinforced with 3 mm (0.118") angle bar |
| Infill | 80 kg/m³ rock wool |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Access system | Optional card, keypad or fingerprint entry |
| Glass | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Floor preparation | Preparation is required where the bottom bearing sits — assessed during site survey |
| Required clearance | Clearance is needed in both directions, as the leaf swings both inward and outward |
| Installation | Installed by aligning the floor and ceiling bearings; one-piece frame, fixed with M8 bolts |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
