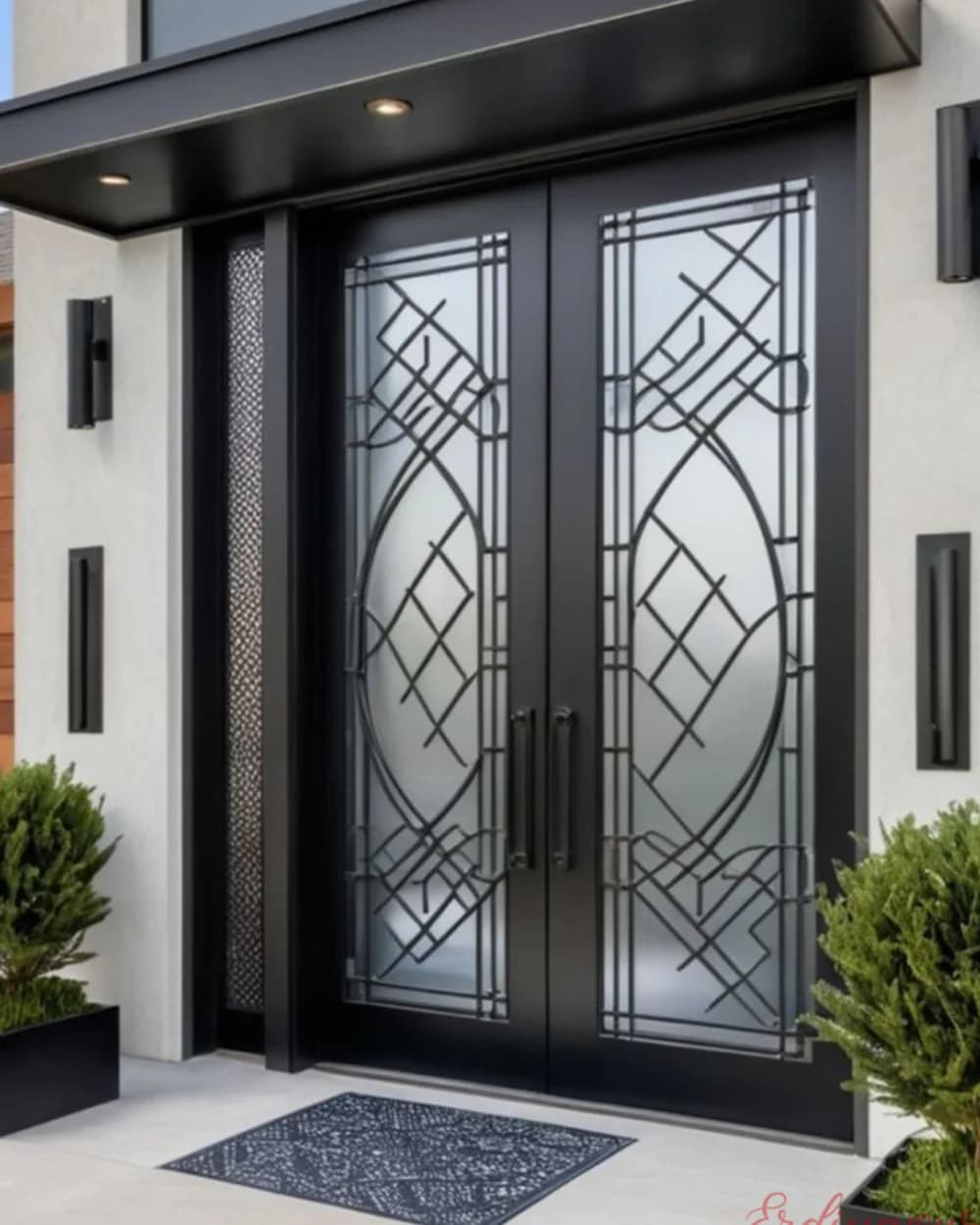

Wrought Iron Glazed Black Double-Leaf Pivot Door BY-58
Wrought iron glazed black double-leaf pivot door. Product code: BY-58. Made to measure after a free on-site survey.
- Leaf construction
- double leaf
- Color / finish
- black
- Glass
- Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant)
- Design language
- classic pivot
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
The wrought iron glazed black double-leaf pivot door appears in our catalog under code BY-58. It is made to measure; whatever the width and height of your entrance, the leaf is built to match.
Product Code: BY-58
Lattice Pattern and Surface
The leaf configuration is double leaf. The surface features wrought iron glazing. The finish is black.
The finish shown is the catalog choice — a different cladding can be selected from the cladding options.
The design language is defined as classic pivot.
Which Entrance Is It Right For?
It is typically used for wide-fronted detached homes and for hotel and showroom entrances. Thanks to the side sections, wide door openings are closed off with a single assembly. Because the weight rests on the floor rather than on hinges, the leaf can be far wider and thicker. Since it needs swing clearance, it is not suited to narrow entrances that open directly onto a staircase; the conditions are listed on the when to choose a pivot door page.
Measurement, Production and Installation
Production starts with measurements taken on site. How the door opening is measured is explained on the how measurements are taken page; material choices are covered on the galvanized sheet or DKP (cold-rolled) sheet and lock systems pages. The technical specifications for this model are listed in the table below. After installation, the care and lifespan and warranty and service terms apply.
Frequently Asked Questions
How much does the BY-58 cost?
We cannot quote a price before measuring. The size of the door opening and your cladding, glass and lock choices directly affect the total; the on-site survey is free and is followed by an itemized quote. See steel door prices for details.
Can the BY-58 be produced in a different color?
It can. Black is simply the finish in the photo, not a fixed choice — you can pick from the alternatives on the cladding options page.
Should I take the measurements myself?
Measuring is our job. We measure the clear width of the door opening, its height from the finished floor and the wall thickness; the details are on the how measurements are taken page.
How can I order model BY-58?
You can fill in the pre-order form on our site or call us on 0532 689 21 46. Mentioning product code BY-58 in your request speeds things up. You can browse other pivot steel door models on the pivot steel door models page.
Specifications
| Product code | BY-58 |
| Category | Pivot Steel Door Models |
| Color / finish | black |
| Design language | classic pivot |
| Leaf construction | double leaf |
| Rotation system | Floor and ceiling bearings — no conventional hinges used |
| Load transfer | Leaf weight is transferred to the floor, not the frame |
| Rotation axis | Determined per project based on leaf width |
| Frame | Ereğli A1 grade 2 mm (0.079") DKP steel sheet, omega-bent |
| Leaf | Ereğli A1 grade 1.5 + 1.5 mm (0.118" total) omega-bent, monoblock-reinforced pan system |
| Leaf thickness | Bare metal 70 mm (2.76") — 90 mm (3.54") in total |
| Frame reinforcement | Lock area and bearing seats reinforced with 3 mm (0.118") DKP steel sheet |
| Leaf reinforcement | Lock area and pivot shaft surround reinforced with 3 mm (0.118") angle bar |
| Infill | 80 kg/m³ rock wool |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Access system | Optional card, keypad or fingerprint entry |
| Glass | Şişecam 5+5 mm (0.394" total) laminated glass (impact resistant) |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Floor preparation | Preparation is required where the bottom bearing sits — assessed during site survey |
| Required clearance | Clearance is needed in both directions, as the leaf swings both inward and outward |
| Installation | Installed by aligning the floor and ceiling bearings; one-piece frame, fixed with M8 bolts |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
Frequently Asked Questions
What is the lead time for a custom villa door?
Production takes 20-25 days from the day the specification is approved. Custom detailing — carved cladding, oversized leaves, special glass — can extend that, and we confirm the date in writing before starting. Ocean freight time to the destination port is added on top.
How are steel doors packaged for sea freight export?
Each door is crated in a wooden case built to its own dimensions, with edge protection and corner blocks, then strapped to prevent movement inside the container. Full container loading is used for project quantities; single doors and small orders ship as groupage cargo.
What measurements do you need to quote?
The width, height and wall thickness of the rough opening, in millimetres or in inches — whichever your drawings use. Photographs of the opening from inside and outside help us confirm the swing direction and the frame detail. No site visit is needed.
Can you manufacture to imperial (inch) dimensions?
Yes. An opening given as 36 x 80 inches is manufactured to that dimension directly. Nothing is converted to a nearest metric size and rounded, so the door arrives at the size your drawing specifies.
Who installs the door at the destination?
Your own contractor. Every shipment includes an installation drawing and the frame fixing set, and the frame is designed to be set into the opening without special tooling.
What export documents travel with the shipment?
Commercial invoice, packing list and certificate of origin, plus whatever else the customs broker at the destination requires. Documentation is prepared before the container leaves the factory.
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
