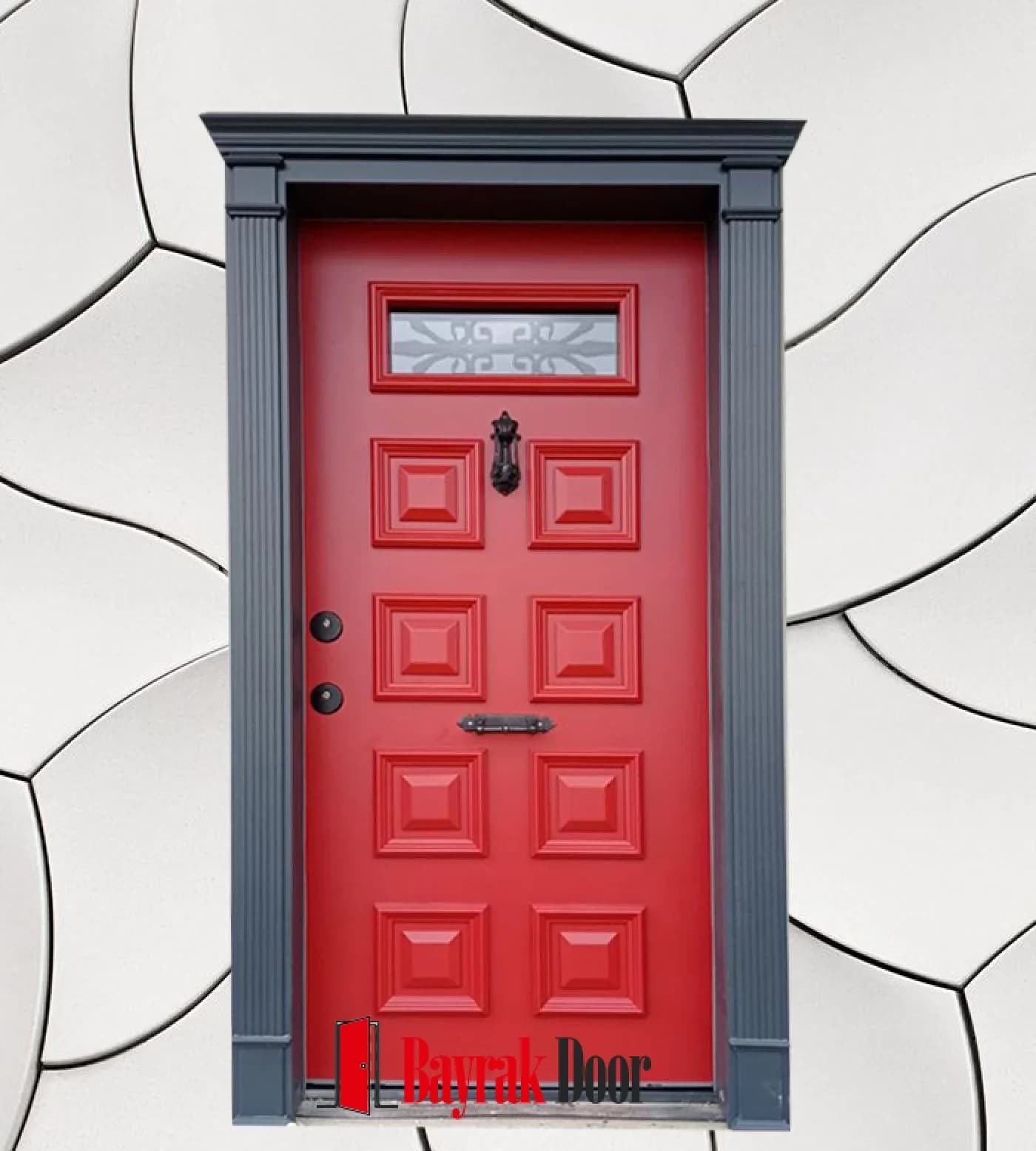

A red eight-section panel grid with a wrought iron glazed window above. Product code: BD-TR35. Made to measure after an on-site survey.
- Leaf construction
- single leaf + top window
- Color / finish
- red leaf + grey frame
- Handle
- black knocker and letter slot
- Design language
- classic villa
- Upper section
- wrought iron glazed window
Pre-Order & Price Request
This model is made to measure. Leave your request and we'll call you to arrange a site survey.
- Survey and measurement are free
- Same-day response
- Made in our own factory
- Lifetime manufacturing warranty
A red eight-section panel grid with a wrought iron glazed window above — that is what sets villa steel door model BD-TR35 apart. Production starts after your order: first comes an on-site survey, then the leaf is built to the door opening.
Product Code: BD-TR35
Leaf, Glass and Transom
The leaf layout is single leaf with an upper window. The leaf shows an eight-section panel grid. The catalog color is a red leaf with a grey frame.
The model features a wrought iron glazed window at the top. The upper section carries a wrought iron glazed window. It is completed with a black knocker and letter slot. Color, pattern and handle choices can be adapted to your project; the alternatives are compared on the surface finish options page.
The design language is defined as classic villa.
Who Is This Model For?
It is chosen primarily for villa entrances and residence apartments. Its single-leaf design fits entrances of standard width. We've compared where villa doors and building entrance doors diverge on the difference between a villa door and a building entrance door page.
From Measurement to Installation
We take the measurements during the survey — based on the door opening, not the existing leaf; the method is explained on the how measurements are taken page. This model's frame, leaf and lock specifications are in the table below; the lock systems and galvanized or DKP sheet steel pages detail the options. The care steps that extend the door's life are on the care and lifespan page, and coverage details on the warranty and service page.
Frequently Asked Questions
How much does the BD-TR35 cost?
There is no fixed price — since every leaf is made to measure, the amount varies with size, finish and lock choice. After the survey we send a written, itemized quote. The line items are detailed on the steel door prices page.
Can the BD-TR35 be produced in a different color?
Yes. The red leaf and grey frame finish pictured is this model's catalog selection; it can be produced in other colors with compact laminate, composite, marine plywood and wood veneer options. We've compared the options on the surface finish options page.
Can the glass on the BD-TR35 be changed?
Yes. The glass pictured is this model's catalog finish; provided Şişecam 5+5 mm laminated glass is used, it can be produced in different colors and patterns. A glassless version is also possible.
How does the measuring stage work when ordering the BD-TR35?
Measuring is our job. We record the clear width of the opening, the height from the finished floor and the wall thickness; details are on the how measurements are taken page.
How can I order model BD-TR35?
You can fill out the pre-order form on our site or reach us at 0532 689 21 46. Mentioning product code BD-TR35 in your request speeds things up. You can browse our other villa steel door models on the villa steel door models page.
Specifications
| Product code | BD-TR35 |
| Category | Villa Steel Door Models |
| Leaf construction | single leaf + top window |
| Color / finish | red leaf + grey frame |
| Surface pattern | eight-section panel grid |
| Handle | black knocker and letter slot |
| Upper section | wrought iron glazed window |
| Design language | classic villa |
| Access system | Optional card or keypad entry |
| Sheet thickness | Frame 2 mm, leaf 1.5+1.5 mm DKP steel sheet (Ereğli A1) |
| Frame | Ereğli A1 grade 2 mm DKP steel sheet, omega-bent |
| Frame reinforcement | Lock and hinge areas reinforced with 3 mm DKP steel sheet |
| Leaf | Ereğli A1 grade 1.5 mm + 1.5 mm omega-bent, monoblock-reinforced pan system |
| Leaf reinforcement | Lock and hinge area reinforced with 3 mm angle bar |
| Leaf thickness | Bare metal 70 mm — 90 mm in total |
| Infill | 80 kg/m³ rock wool |
| Lock surround | integrated with 1 mm grade 304 stainless steel |
| Hinge | 3 adjustable 20 mm ball-bearing pin hinges |
| Hinge reinforcement | 5 mm thick flat bar |
| Fixed pin | 5 units on the hinge side, 20 mm diameter |
| Gasket | Silicone-based rubber gasket on 3 sides of the frame, 4 sides of the leaf (insect-, dust- and airtight) |
| Surface finish | 10 mm Camsan first-grade iroko |
| Finish options | Powder coating, natural wood, marine plywood, iroko wood or composite compact laminate |
| Varnish | Polyurethane infill, 90-micron coverage rating |
| Polish | Akzo Nobel |
| Accessories | first-grade 304 stainless steel or 316 Häfele stainless brass (depending on climate conditions) |
| Installation | One-piece inner/outer frame, clamp-grip jointing, fastened with M8 bolts |
| Frame-to-wall gap | 1 cm, filled with polyurethane foam |
| Production | Manufactured to custom on-site measurements |
| Warranty | Unlimited coverage for manufacturing defects — 2-year official warranty certificate |
| Lock system | Optional hook-bolt, monoblock or central — Italian Mottura or Mul-T-Lock |
| Glass section | wrought iron glazed window at top |
| Glass type | Şişecam 5+5 mm laminated glass (impact resistant) |
- • A free on-site survey is carried out before ordering to measure the door opening.
- • Production follows the dimensions and finish you approve after the survey.
- • Installation is carried out on-site by our own team.
- • Our warranty against manufacturing and workmanship defects is unlimited; an official 2-year warranty document is provided on delivery.
- • Price incl. VAT: %20 Includes VAT.
